1-1410297-6

AMP1-1410297-6
Heilind Number:AMP1-1410297-6
Manufacturer:TE Connectivity
Manufacturer Number:1-1410297-6
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

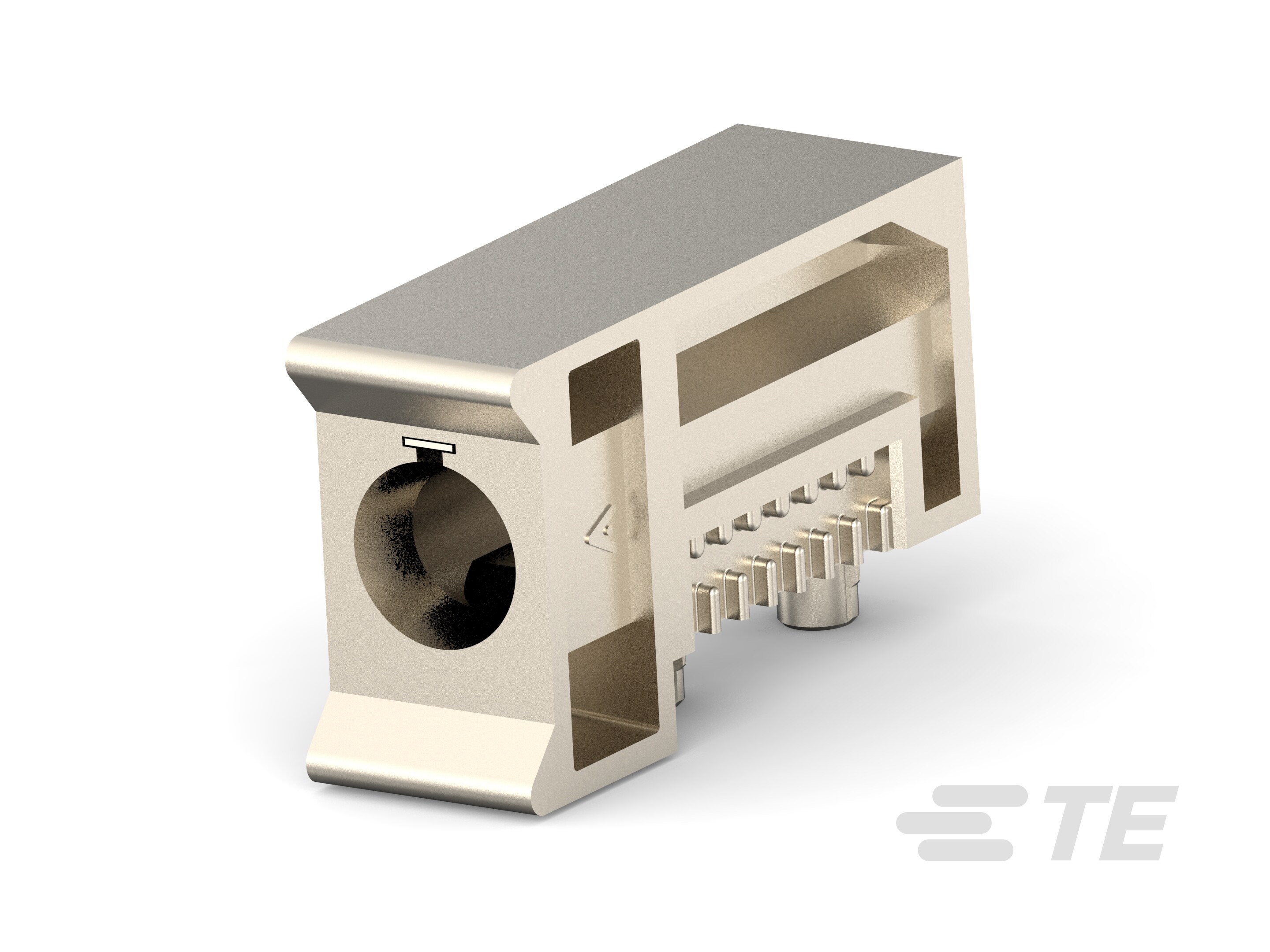

MULTIGIG RT KEY/ESD .8" 225 DEG

More >>

Specifications

AttributeValue
Product Category:
Backplane Connectors & Accessories Backplane Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-1410297-6
Housing Material:Zinc Alloy
Number of Contacts:1
Mount Type:Board Mount
Termination Method:Through Hole - Screw
Contact Material:Phosphor Bronze
Body Orientation:Right Angle
Voltage:48 V AC
Contact Length:14.06 mm
PCB Hole Diameter:3.96 mm
Contact Amperage:20 A, 5 A
Number of Positions:1
Mount Orientation:Right Angle
GPL:145
Packaging:Package
Operating Temperature Range:-55 - 105 °C, -67 - 221 °F
Circuit Application:Power
PCB Retention:With
Connector Height:18.4 mm
PCB Retention Type:Screw Mount
Mating Alignment:With
Mating Alignment Type:Keyed
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:E996
Connector Length:31.88 mm
Connector System:Board to Board
Contact Termination Plating:Silver
Stackable:Yes
Connector Product Type:Guide Assembly
ECCN:EAR99
PCB Contact Termination Area Plating Finish:Semi-Bright
Connector Width:10.7 mm
Stack Height:18.4 mm
Guide Hardware:With
Connector and Housing Type:Receptacle
Key Orientation:225°
Housing Plating:Nickel
Power Contact Voltage Rating:48 V DC
Part Aliases:1-1410297-6
SKU:AMP1-1410297-6

Detailed Description

Experience enhanced connectivity with our MULTIGIG RT KEY/ESD .8" 225 DEG connector, designed for optimal performance in power circuit applications. Crafted from durable Zinc Alloy, this right-angle board mount connector features a phosphor bronze contact material, ensuring reliable power transmission. With a voltage rating of 48 V AC and 5 A amperage capacity, it offers robust power delivery. Its PCB retention with screw mount and keyed mating alignment guarantee secure installation, while the nickel-plated housing ensures longevity. Operating in a wide temperature range of -55 to 105 °C, this connector is suitable for diverse environments. Perfect for board-to-board connections, it boasts a stackable design and complies with RoHS regulations for environmental responsibility. Upgrade your connectivity solutions with this essential component.
