1-1612256-4

AMP1-1612256-4
Heilind Number:AMP1-1612256-4
Manufacturer:TE Connectivity
Manufacturer Number:1-1612256-4
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

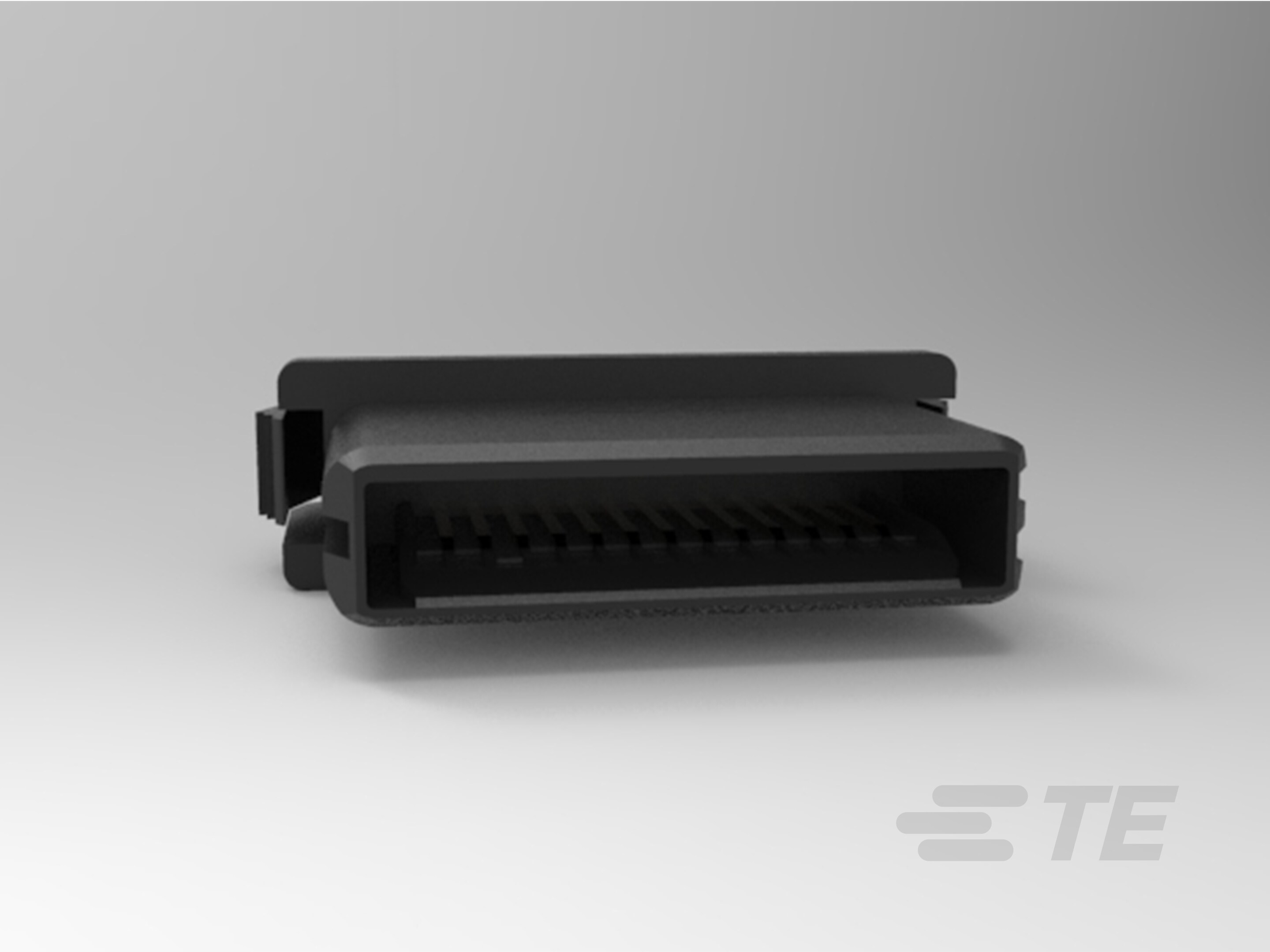

PLUG ASSY 14P ,MINI CT DC DRAW

More >>

Specifications

AttributeValue
Product Category:
PC Board Pin & Receptacle Connectors PCB Socket Receptacles
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-1612256-4
Color:Black
Amperage:1.5 A
Connector Type:Housing
Gender:Plug
Housing Material:Polybutylene Terephthalate - GF
Number of Rows:1
Mount Type:Cable Mount (Free-Hanging)
Termination Method:Crimp/IDC
Contact Material:Copper Alloy
Pitch:.059 in, 1.5 mm
Voltage:50 V AC/DC
Contact Type:Pin
Strain Relief:No Strain Relief
Package Quantity:49
Number of Positions:14
Housing Color:Black
GPL:398
Mating Retention Type:Latch
Packaging:Box & Tray, Tray
Operating Temperature Range:-22 - 221 °F, -30 - 105 °C
Circuit Application:Power & Signal
Panel Mount:Without
PCB Retention:Without
Connector Height:10.6 mm, .417 in
Sealable:No
Mating Alignment:With
Mating Alignment Type:Polarization
GPL Description:Data and Devices
Connector and Contact Terminate To:Wire & Cable
Product Code:1817
Drawer Style:Mini CT, Snap-Fit
Contact Layout:Inline
Connector Length:1.36 in, 34.6 mm
Connector System:Wire to Wire
Connector Product Type:Connector
Mating Retention:With
Mating Connector Lock:Without
Housing Configuration:Both Ends Closed
Material Flammability Standard:UL 94V-0
Part Aliases:1-1612256-4
SKU:AMP1-1612256-4

Detailed Description

Easily connect and disconnect power and signal cables with this 14-pin Mini CT DC Draw Plug Assembly. Featuring a sleek black housing made of Polybutylene Terephthalate - GF, this connector is durable and reliable. With a 1.5 A amperage and 50 V AC/DC voltage rating, it is suitable for various applications. The connector offers efficient cable mounting with its Crimp/IDC termination method and Cable Mount (Free-Hanging) mount type. It ensures secure connectivity with its Latch mating retention type and Polarization mating alignment. Operating within a wide temperature range of -30 to 105 °C (-22 to 221 °F), it is versatile and dependable. This UL 94V-0 compliant connector is ideal for power and signal circuit applications, making it a valuable component in electronic systems.
