1-1734774-6

AMP1-1734774-6
Heilind Number:AMP1-1734774-6
Manufacturer:TE Connectivity
Manufacturer Number:1-1734774-6
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

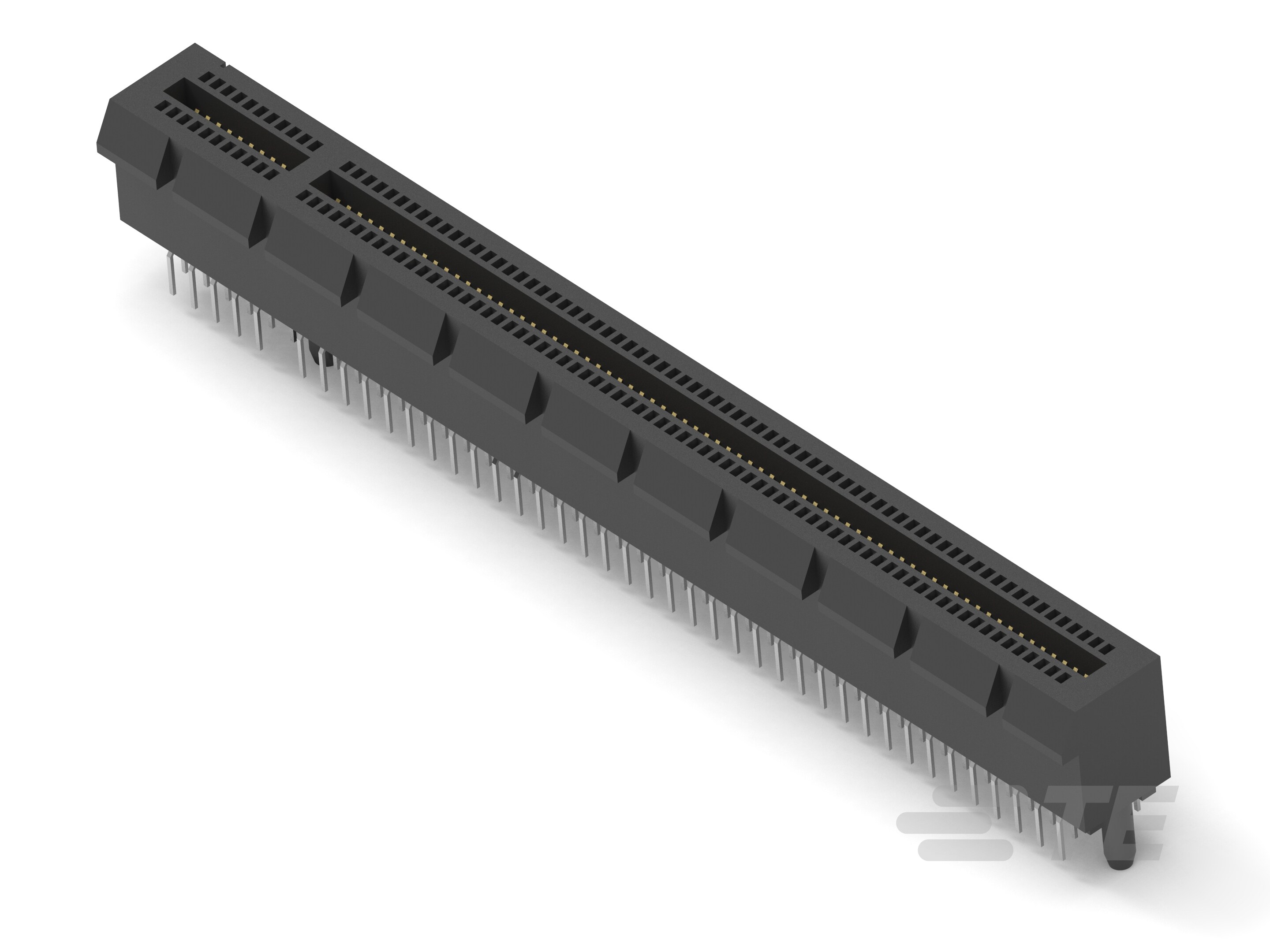

PCI EXP 3.1L 164 POS BLK 15u"

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Card Edge Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-1734774-6
Housing Material:PA 9T GF
Mount Type:Board Mount
Termination Method:Through Hole - Solder
Contact Material:Phosphor Bronze
Pitch:.039 in, 1 mm
Voltage:50 V AC
Package Quantity:30
Housing Color:Black
Mount Orientation:Vertical
GPL:144
Packaging:Box & Tray, Tray
Operating Temperature Range:-40 - 185 °F, -40 - 85 °C
Contact Mating Area Plating:Gold
Contact Mating Area Plating Thickness:15 µin
PCB Contact Termination Area Plating:Tin
PCB Thickness (Recommended):.094 in, 2.39 mm
Connector Height:10 mm, .394 in
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:K370
Connector Length:3.504 in, 89 mm
Connector System:Cable-to-Board
PCB Contact Termination Area Plating Finish:Matte
Connector Width:.346 in, 8.8 mm
Termination Post Tail Length:.122 in, 3.1 mm
PCB Contact Termination Area Plating Thickness:2.54 µm
Bus Type:PCI Express
Ejector:Without
Accepts PCB Thickness:.062 in, 1.57 mm
PCI Generation:II & III
Part Aliases:1-1734774-6
SKU:AMP1-1734774-6

Detailed Description

Enhance connectivity with this high-performance PCI Express 3.1L Card Edge Connector. Featuring a durable housing made of PA 9T GF in sleek black, this connector is designed for seamless board-mount installation with a through-hole solder termination method. Its 164 gold-plated contacts ensure reliable signal transmission, while the vertical orientation and compact 10mm height maximize space efficiency. With a pitch of 1mm and compatibility with PCI Gen II & III standards, it offers versatile connectivity options for various applications. Operating in a wide temperature range from -40°C to 85°C (-40°F to 185°F) and RoHS compliant, this connector guarantees both performance and environmental responsibility. Perfect for data and device applications, it comes in a package of 30 units, securely housed in a tray for convenient storage and handling. Elevate your connectivity infrastructure with this essential component.
