1-1740533-7

AMP1-1740533-7
Heilind Number:AMP1-1740533-7
Manufacturer:TE Connectivity
Manufacturer Number:1-1740533-7
Datasheet:Drawing
ECAD Model:
3D Model

Description:

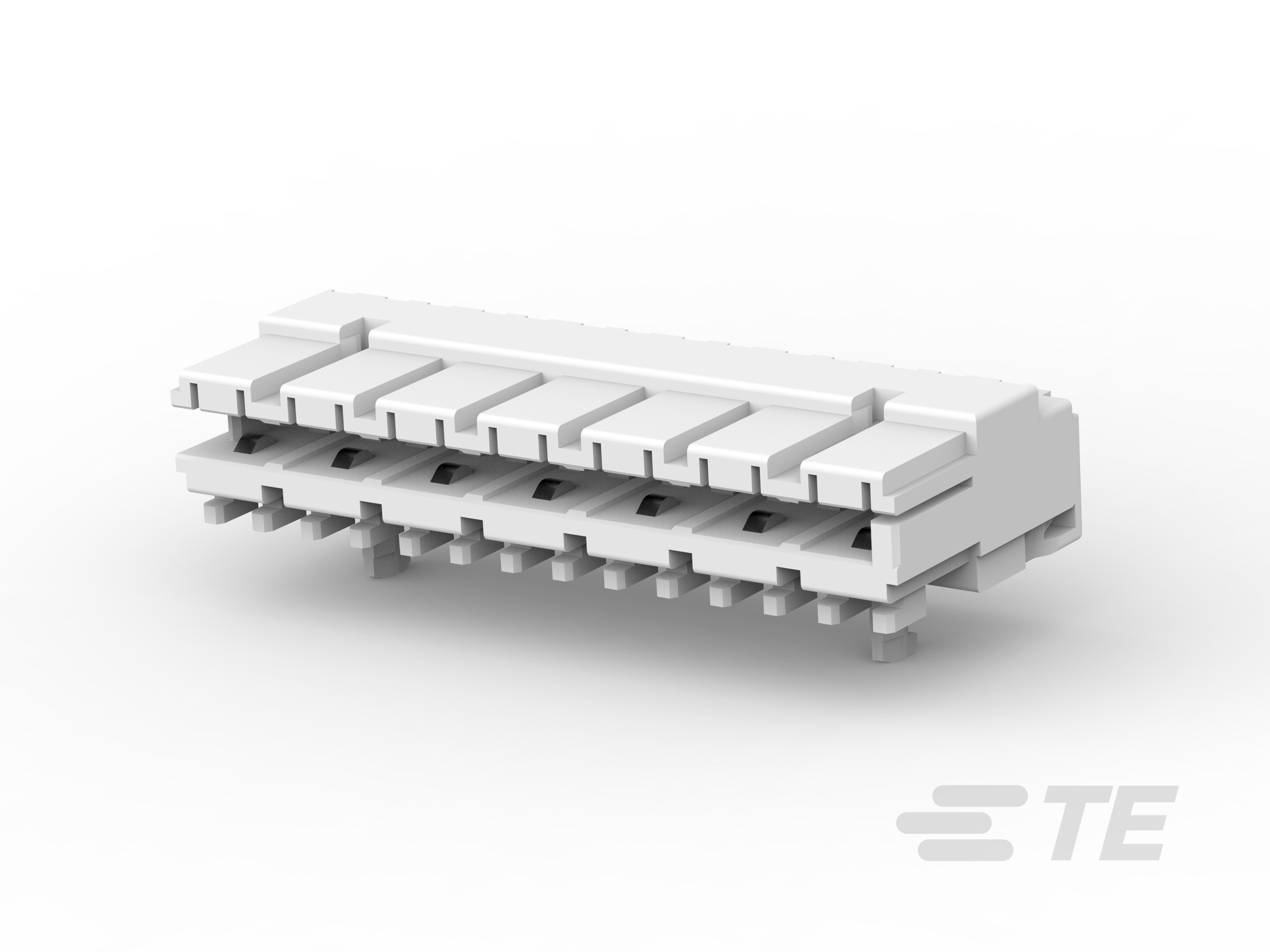

AMP DUOPLUG POW CONNECTOR

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Card Edge Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-1740533-7
Amperage:6 A
Housing Material:PA 6 GF
Number of Rows:1
Mount Type:Cable Mount (Free-Hanging)
Termination Method:Insulation Displacement Crimp (IDC)
Contact Material:CuNiSi
Pitch:.197 in, 5 mm
Voltage:250 V
Contact Type:Socket
Package Quantity:1078
Number of Positions:7
Housing Color:Natural
Mount Orientation:Right Angle
GPL:394
Packaging:Tray
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power
Contact Mating Area Plating:Tin
Contact Mating Area Plating Thickness:3 - 6 µm
Panel Mount:Without
PCB Retention:Without
PCB Contact Termination Area Plating:Tin
PCB Thickness (Recommended):.059 in, 1.5 mm
Connector Height:.287 in, 7.3 mm
Mating Alignment:With
Mating Alignment Type:Keyed
GPL Description:Appliances
Connector and Contact Terminate To:Printed Circuit Board
Product Code:G566
Wire Size:18 - 22 AWG, .35 - .75 mm²
Connector System:Wire to Board
ECCN:EAR99
Connector Contact Load Condition:Fully Loaded
Mating Retention:Without
PCB Mount Alignment:With
Card Entry Location:Side
Accepts Wire Insulation Diameter:.087 in, 2.2 mm
Housing Configuration:One End Open
Contact Retention:With
Compatible Wire / Cable Type:Discrete Wire
Contact Retention Type in Housing:Locking Lance
Connector and Housing Type:Receptacle
Material Flammability Standard:UL 94V-2
Part Aliases:1-1740533-7
SKU:AMP1-1740533-7
