1-2344654-0

AMP1_2344654_0
Heilind Number:AMP1-2344654-0
Manufacturer:TE Connectivity
Manufacturer Number:1-2344654-0
Datasheet:3D Model (PDF)
ECAD Model:
3D Model

Description:

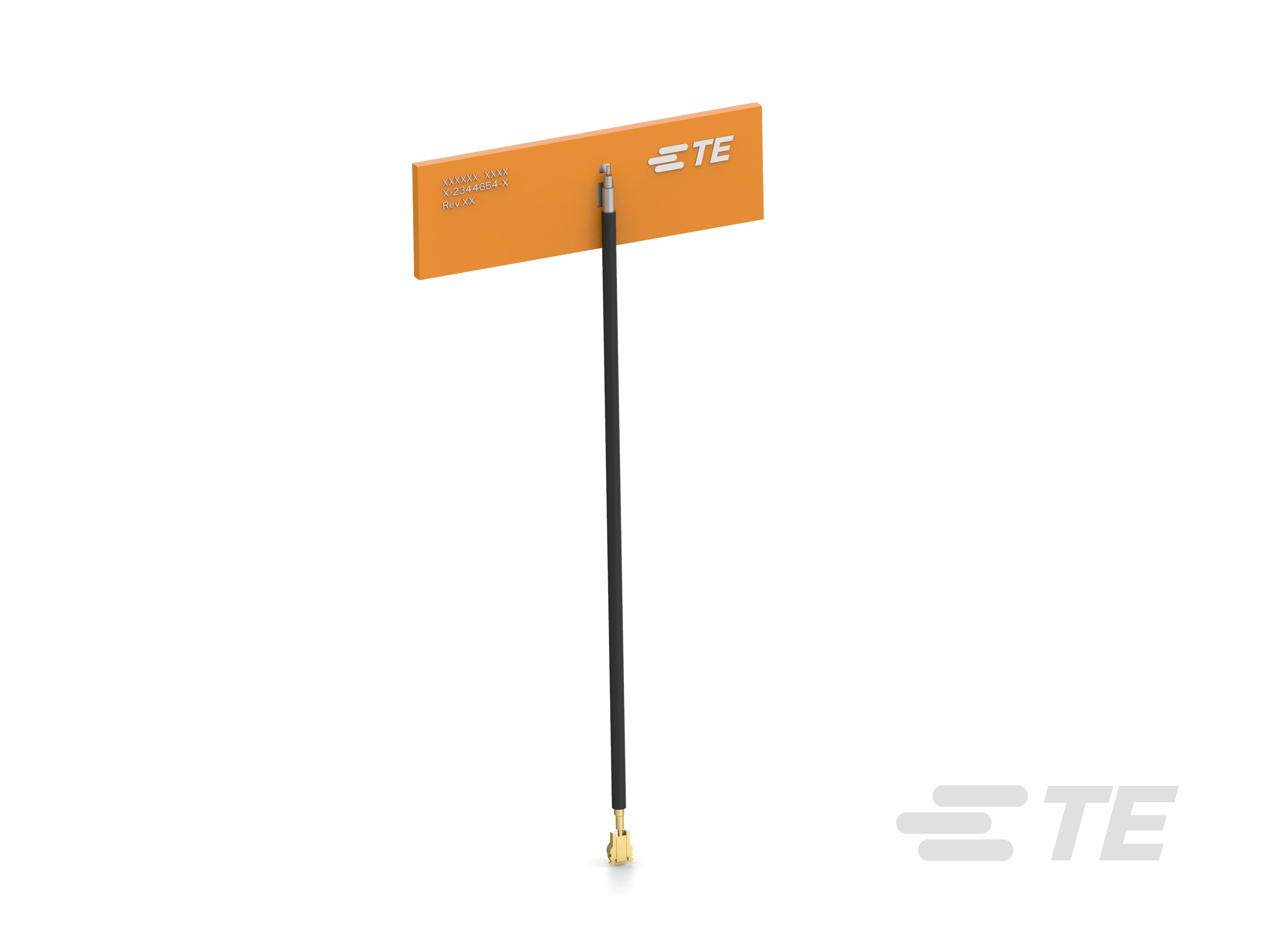

PCB Antenna, Dual Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port, Gain 0 < 3 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-2344654-0
VSWR:2:1
Protocol:802.11a, 802.11ac, 802.11ad, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Impedance:50 Ω
Gain:2 dB
Band Type:Dual Band
Antenna Type:PCB
Directionality:Omnidirectional
Mounting Style:Adhesive
Frequency Range:2400 - 2500 MHz, 5150 - 5875 MHz
Center Frequency:2450 MHz, 5512.5 MHz
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
Application:Bluetooth, Wi-Fi
Polarization:Linear
SKU:AMP1-2344654-0

Detailed Description

Enhance your wireless connectivity with this high-performance PCB antenna, designed for seamless integration into your devices. Operating at a VSWR of 2:1, it supports multiple protocols including ZigBee, Bluetooth, and various 802.11 standards. With a gain of 2 dB and impedance of 50 Ω, it ensures optimal signal strength and efficiency. This dual-band antenna covers frequencies ranging from 2400 to 2500 MHz and 5150 to 5875 MHz, making it perfect for Bluetooth and Wi-Fi applications. Its omnidirectional design and adhesive mounting style offer versatility in installation, while compatibility with MHF, MHF1, U.FL, and UMCC antenna terminations ensures easy connectivity. Ideal for internal/embedded use, it provides reliable performance with linear polarization and single-port configuration. Elevate your wireless communication with this compact and efficient PCB antenna.
