1513164-1

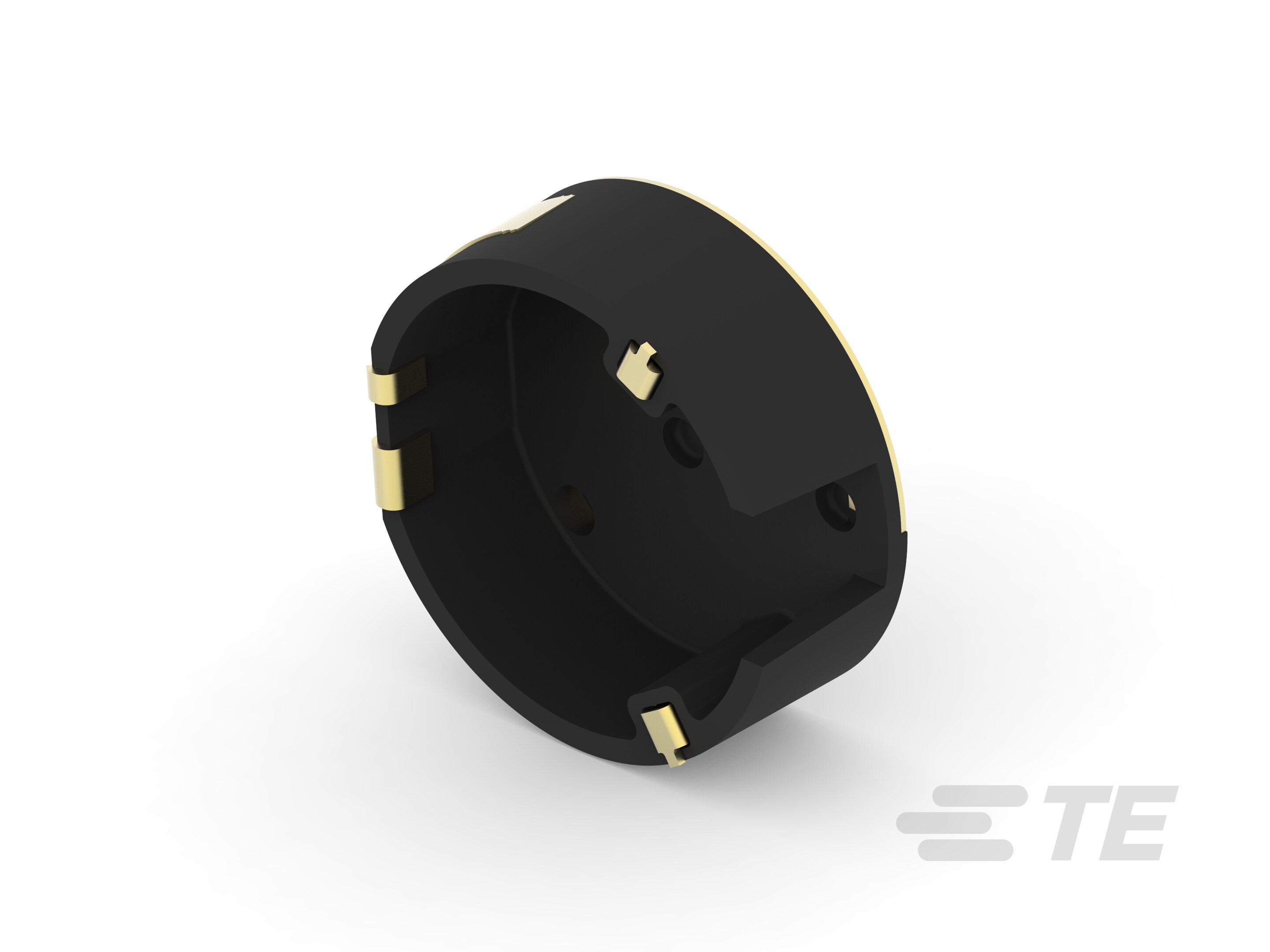

AMP1513164_1
Heilind Number:AMP1513164-1
Manufacturer:TE Connectivity
Manufacturer Number:1513164-1
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

Stamped Metal Antenna, Dual Band, Wi-Fi, Internal/Embedded Mount, Surface Mount, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1513164-1
Gain:4 dB
Band Type:Dual Band
Antenna Type:Stamped Metal
Directionality:Omnidirectional
Mounting Style:Surface Mount
Frequency Range:2400 - 2483.5 MHz, 5150 - 5875 MHz
Center Frequency:2441.75 MHz, 5512.5 MHz
Application:Bluetooth, Wi-Fi
VSWR:2.5:1
Protocol:802.11a, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Impedance:50 Ω
Polarization:Linear
SKU:AMP1513164-1

Detailed Description

Enhance your wireless connectivity with this Stamped Metal Antenna, offering dual-band functionality for Wi-Fi applications. Designed for internal/embedded mounting, it features a surface mount configuration and omnidirectional coverage, perfect for ensuring seamless signal transmission. With a gain of 3 to 6 dBi, it provides reliable performance across the 2400-2483.5 MHz and 5150-5875 MHz frequency ranges. This antenna is ideal for Bluetooth and Wi-Fi applications, meeting RoHS compliance for environmentally conscious operation. Its compatibility with ZigBee, Bluetooth, and various IEEE 802.11 standards guarantees versatile use, while the 50 Ω impedance and linear polarization further optimize signal strength. Upgrade your setup with this high-quality antenna, a must-have in the realm of wireless communication.
