2108936-1

AMP2108936_1
Heilind Number:AMP2108936-1
Manufacturer:TE Connectivity
Manufacturer Number:2108936-1
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

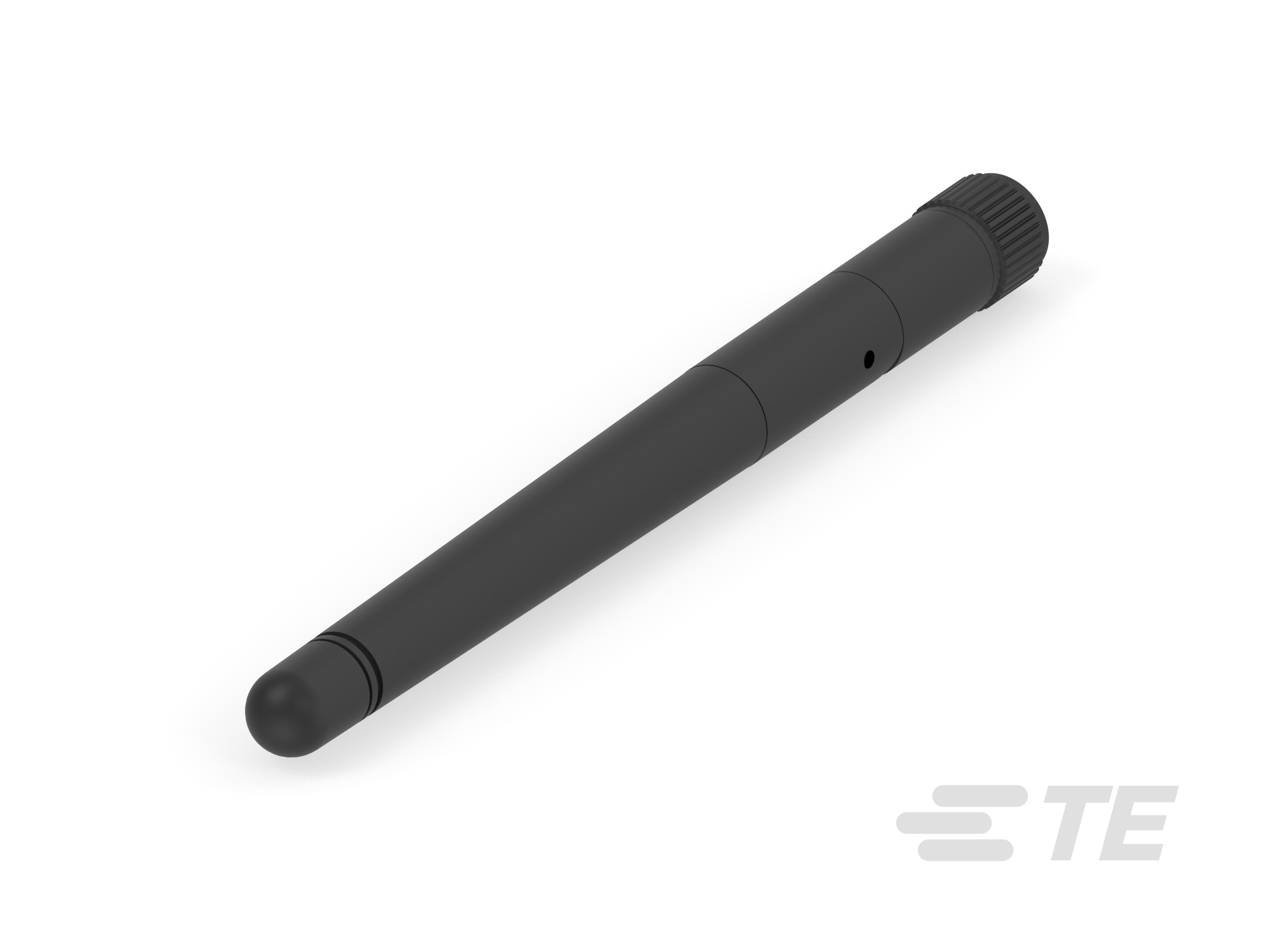

Terminal/Duck Antenna, Dual Band, Wi-Fi, External Mount, Connector, SMA, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108936-1
Gain:3.7 dB
VSWR:1.7:1
Protocol:802.11a, 802.11ac, 802.11ad, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Band Type:Dual Band
Impedance:50 Ω
Antenna Type:Duck
Polarization:Linear
Directionality:Omnidirectional
Mounting Style:Connector
Frequency Range:2400 - 2500 MHz, 5150 - 5875 MHz
Center Frequency:2450 MHz, 5512.5 MHz
Antenna Termination Type:SMA
Application:Bluetooth, Wi-Fi
SKU:AMP2108936-1

Detailed Description

Enhance your wireless connectivity with this high-performance terminal antenna, designed for dual-band operation in the 2.4GHz and 5GHz frequency ranges. Featuring a sleek duck design with an SMA connector for easy external mounting, it offers omnidirectional coverage with a gain of 3.7 dB for optimal signal strength. Compatible with ZigBee, Bluetooth, and various 802.11 protocols, including ac and ad, this antenna is perfect for a wide range of applications. With a low VSWR of 1.7:1 and impedance of 50 Ω, it ensures efficient signal transmission. Whether for Bluetooth pairing or Wi-Fi networking, this antenna delivers reliable performance in any wireless setup.
