2108948-1

Heilind Number:	AMP2108948-1
Manufacturer:	TE Connectivity
Manufacturer Number:	2108948-1
Datasheet:	Material Declaration (XLSX)
ECAD Model:

Description:

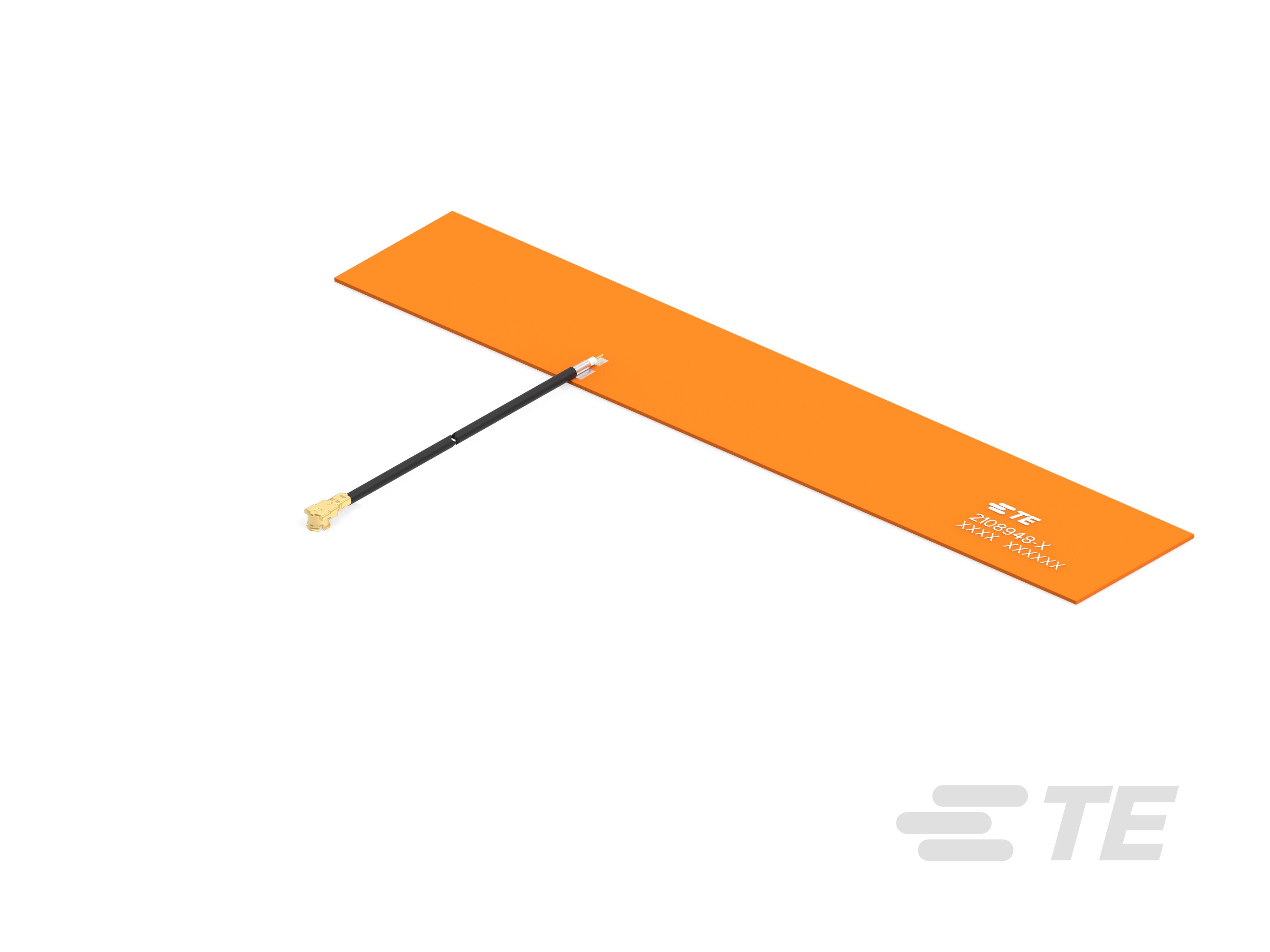

PCB Antenna, Multi Band, 5G / Cat-M/NB-IoT / Cellular, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port

More >>

Specifications

Attribute	Value
Product Category:	Passives Antennas
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2108948-1
Gain:	4.6 dB
VSWR:	3.1:1
Protocol:	802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, EU Triband, LTE, UMTS, US Dual Band, WCDMA, ZigBee
Band Type:	Multi Band
Impedance:	50 Ω
Antenna Type:	PCB
Polarization:	Linear
Directionality:	Omnidirectional
Mounting Style:	Adhesive
Frequency Range:	1850 - 4000 MHz, 5000 - 7125 MHz, 710 - 730 MHz
Center Frequency:	2925 MHz, 6062.5 MHz, 720 MHz
Antenna Termination Type:	MHF, MHF1, U.FL, UMCC
Application:	5G, Cat-M/NB-IoT, Cellular, GNSS, Wi-Fi
SKU:	AMP2108948-1

Detailed Description

Enhance your wireless connectivity with this high-performance PCB antenna, boasting a 4.6 dB gain and 3.1:1 VSWR for optimal signal strength. Supporting a wide range of protocols including ZigBee, Bluetooth, LTE, UMTS, and various 802.11 standards, it ensures seamless integration into diverse networks. Designed for multi-band operation, this antenna covers frequencies from 1850 to 7125 MHz, catering to 5G, Cat-M/NB-IoT, Cellular, GNSS, and Wi-Fi applications. Its linear polarization and omnidirectional pattern guarantee reliable signal reception in any orientation, while the adhesive mounting style offers easy installation. With RoHS compliance and 50 Ω impedance, it meets international standards for environmental responsibility and signal integrity, making it an ideal choice for embedded systems requiring compact, high-performance antennas.
