2108971-3

AMP2108971_3
Heilind Number:AMP2108971-3
Manufacturer:TE Connectivity
Manufacturer Number:2108971-3
Datasheet:3D Model (PDF)
ECAD Model:
3D Model

Description:

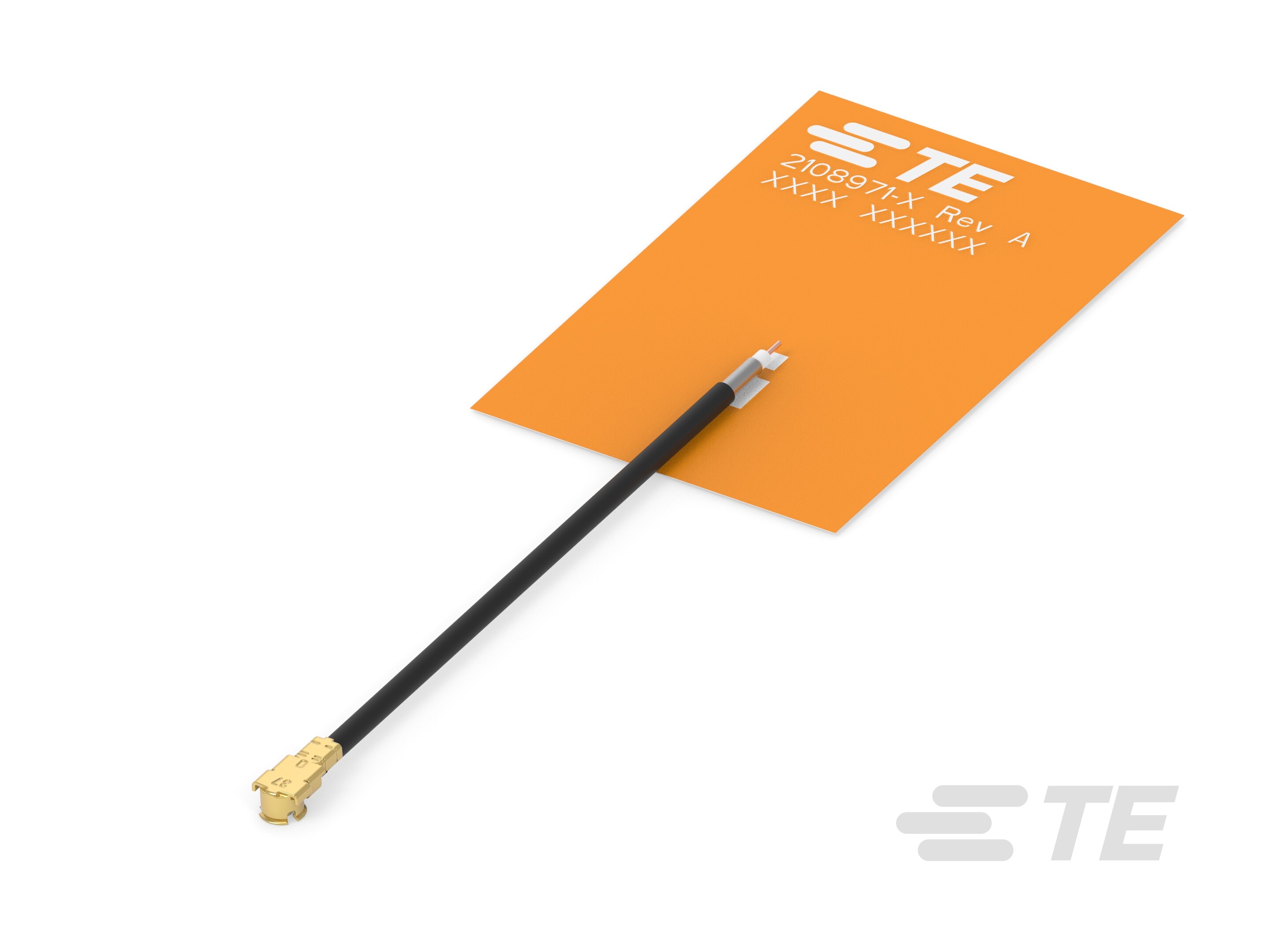

Flexible PCB (FPC) Antenna, Wide Band, UWB, Internal/Embedded Mount, Adhesive, UMCC / U.FL / MHF1, Omnidirectional, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108971-3
Gain:3.8 dB
VSWR:1.7:1
Protocol:UWB
Band Type:Wide Band
Impedance:50 Ω
Antenna Type:Flexible PCB
Polarization:Linear
Directionality:Omnidirectional
Mounting Style:Adhesive
Frequency Range:3100 - 5000 MHz, 5900 - 8500 MHz
Center Frequency:4050 MHz, 7200 MHz
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
Application:UWB
SKU:AMP2108971-3

Detailed Description

Enhance your wireless connectivity with our Flexible PCB (FPC) Antenna, designed for wide band Ultra-Wideband (UWB) applications. Featuring a sleek internal/embedded mount with adhesive backing, this antenna is perfect for seamless integration. With a linear polarization and omnidirectional directionality, it ensures reliable signal transmission in all directions. Operating in the 3100-5000 MHz and 5900-8500 MHz frequency ranges, it covers a broad spectrum of UWB applications. Boasting a gain of 3.8 dB and a VSWR of 1.7:1, it offers optimal performance. Compatible with MHF, MHF1, U.FL, and UMCC antenna terminations, it provides versatility in connectivity options. Ideal for various UWB applications, this antenna is a must-have for achieving high-speed, low-latency wireless communication.
