2195846-1

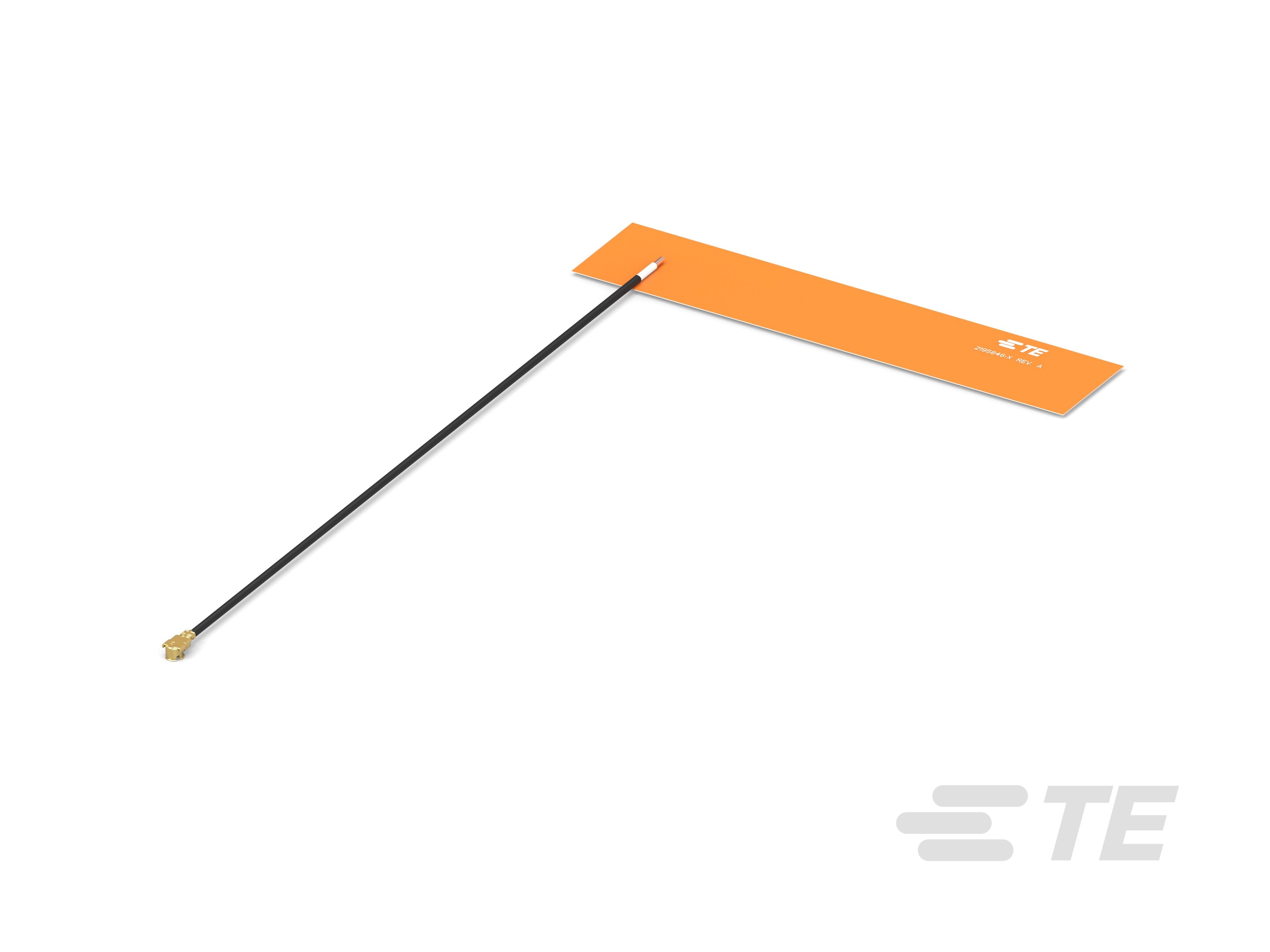

AMP2195846_1
Heilind Number:AMP2195846-1
Manufacturer:TE Connectivity
Manufacturer Number:2195846-1
Datasheet:2D Model (DXF)
ECAD Model:
3D Model

Description:

Flexible PCB (FPC) Antenna, Multi Band, 5G / Cat-M/NB-IoT / Cellular, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2195846-1
Gain:4.99 dB
VSWR:4:1
Protocol:EU Triband, LTE, UMTS, US Dual Band, WCDMA
Band Type:Multi Band
Impedance:50 Ω
Antenna Type:Flexible PCB
Polarization:Linear
Directionality:Omnidirectional
Mounting Style:Adhesive
Frequency Range:1560 - 1630 MHz, 1710 - 2700 MHz, 3200 - 3800 MHz, 4400 - 5000 MHz, 5150 - 5875 MHz, 5925 - 7125 MHz, 698 - 960 MHz
Center Frequency:1595 MHz, 2205 MHz, 3500 MHz, 4700 MHz, 5512.5 MHz, 6525 MHz, 829 MHz
Application:5G, Bluetooth, Cat-M/NB-IoT, Cellular, GNSS, LoRaWAN, LPWA, SatCom, Wi-Fi, Zigbee
Antenna Termination Type:MHF, MHF1, U.FL, UMCC
SKU:AMP2195846-1

Detailed Description

Stay connected across multiple bands with our RoHS-compliant Flexible PCB (FPC) Antenna. Designed for optimal performance in LTE, UMTS, EU Triband, US Dual Band, and WCDMA protocols, this antenna offers a gain of 4.99 dB and a VSWR of 4:1. With a linear polarization and omnidirectional directionality, it ensures reliable signal coverage. The adhesive mounting style makes it easy to install, while the 50 Ω impedance and MHF/MHF1/U.FL terminations provide versatility for various applications. Covering a wide frequency range from 1560 MHz to 7125 MHz, including 5G, Bluetooth, Cat-M/NB-IoT, Cellular, GNSS, Wi-Fi, and more, this antenna is perfect for diverse connectivity needs. Whether it's for internal or embedded mounting, trust our flexible PCB antenna to deliver consistent performance.
