2313376-2

Heilind Number:	AMP2313376-2
Manufacturer:	TE Connectivity
Manufacturer Number:	2313376-2
Datasheet:	Statement of Compliance
ECAD Model:

Description:

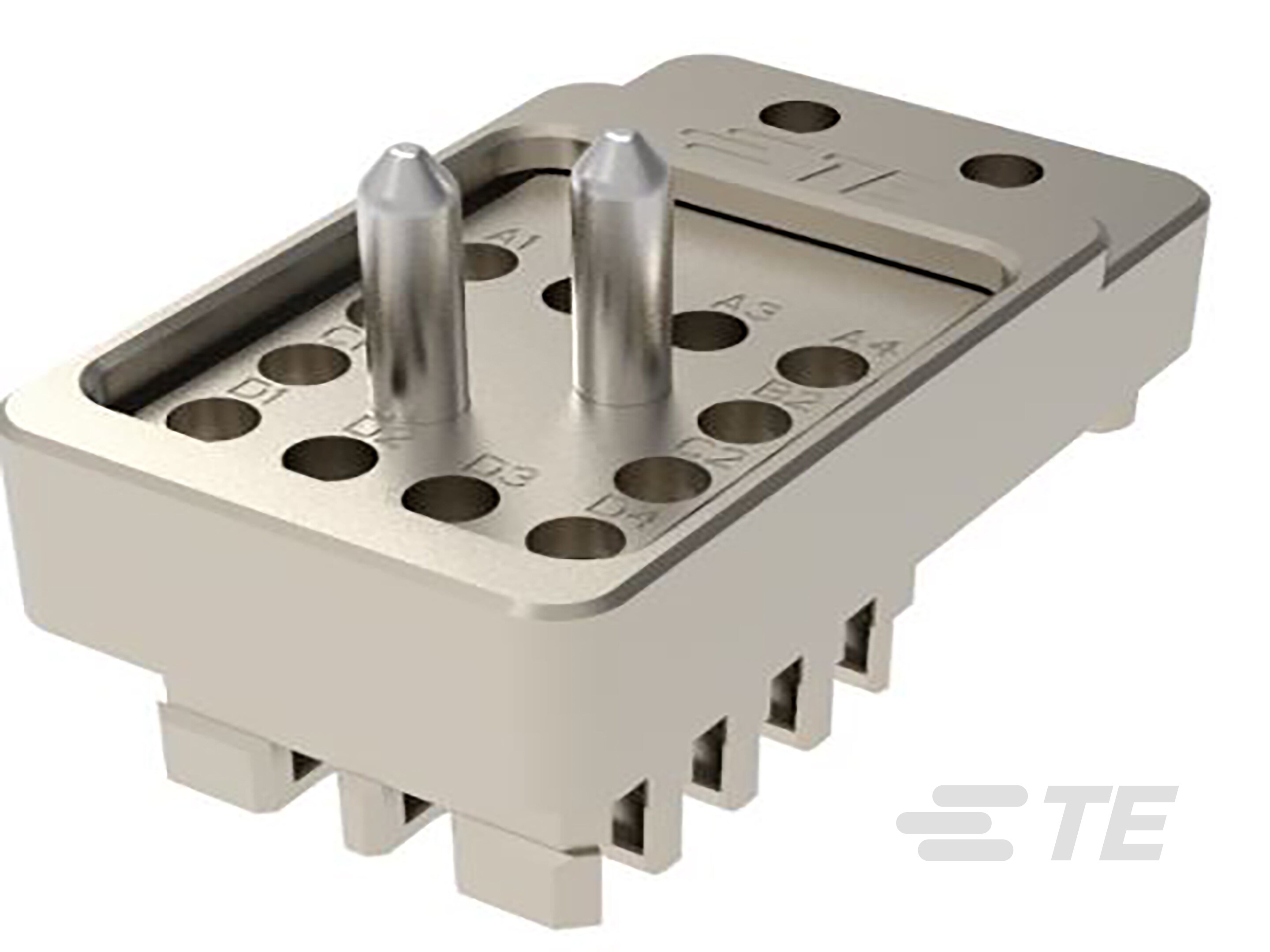

NanoRF, BP, 12 POS, 67.3 D

More >>

Specifications

Attribute	Value
Product Category:	RF Coaxial Connectors & Accessories RF Coaxial Connectors
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2313376-2
Series:	NanoRF
Mount Type:	Panel
Mount Angle:	Vertical
Impedance:	50 Ω
Body Material:	Aluminum Alloy
Contact Amperage:	1 A
Number of Positions:	12
GPL:	E25
Operating Temperature Range:	-65 - 120 °C, -85 - 248 °F
Circuit Application:	Signal
GPL Description:	Aerospace Defense & Marine
Connector and Contact Terminate To:	Wire & Cable
Product Code:	K788
Number of Coaxial Contacts:	12
Body Finish:	Trivalent Chromate
Center Contact Material:	Beryllium Copper
Connector System:	Cable-to-Cable
Contact Spacing:	.11 in, 2.79 mm
ECCN:	EAR99
Mounting Style:	Screw
Part Aliases:	2313376-2
SKU:	AMP2313376-2

Detailed Description

Experience seamless signal transmission with our NanoRF connector, designed for high-performance applications in aerospace, defense, and marine industries. Featuring a rugged aluminum alloy body with trivalent chromate finish, this vertical panel mount connector ensures reliable connectivity in harsh environments. With 12 positions and 50 Ω impedance, it offers precision in signal transmission, meeting the demanding requirements of modern technology. Its Beryllium Copper center contact and cable-to-cable connector system guarantee secure and efficient connections. Operating efficiently in extreme temperatures from -65 to 120 °C (-85 to 248 °F), this connector is a versatile solution for various signal transmission needs. RoHS compliant and lead-free solder processes, it upholds environmental standards while delivering exceptional performance. Upgrade your connectivity with our NanoRF connector.
