2344655-8

AMP2344655_8
Heilind Number:AMP2344655-8
Manufacturer:TE Connectivity
Manufacturer Number:2344655-8
Datasheet:3D Model (PDF)
ECAD Model:
3D Model

Description:

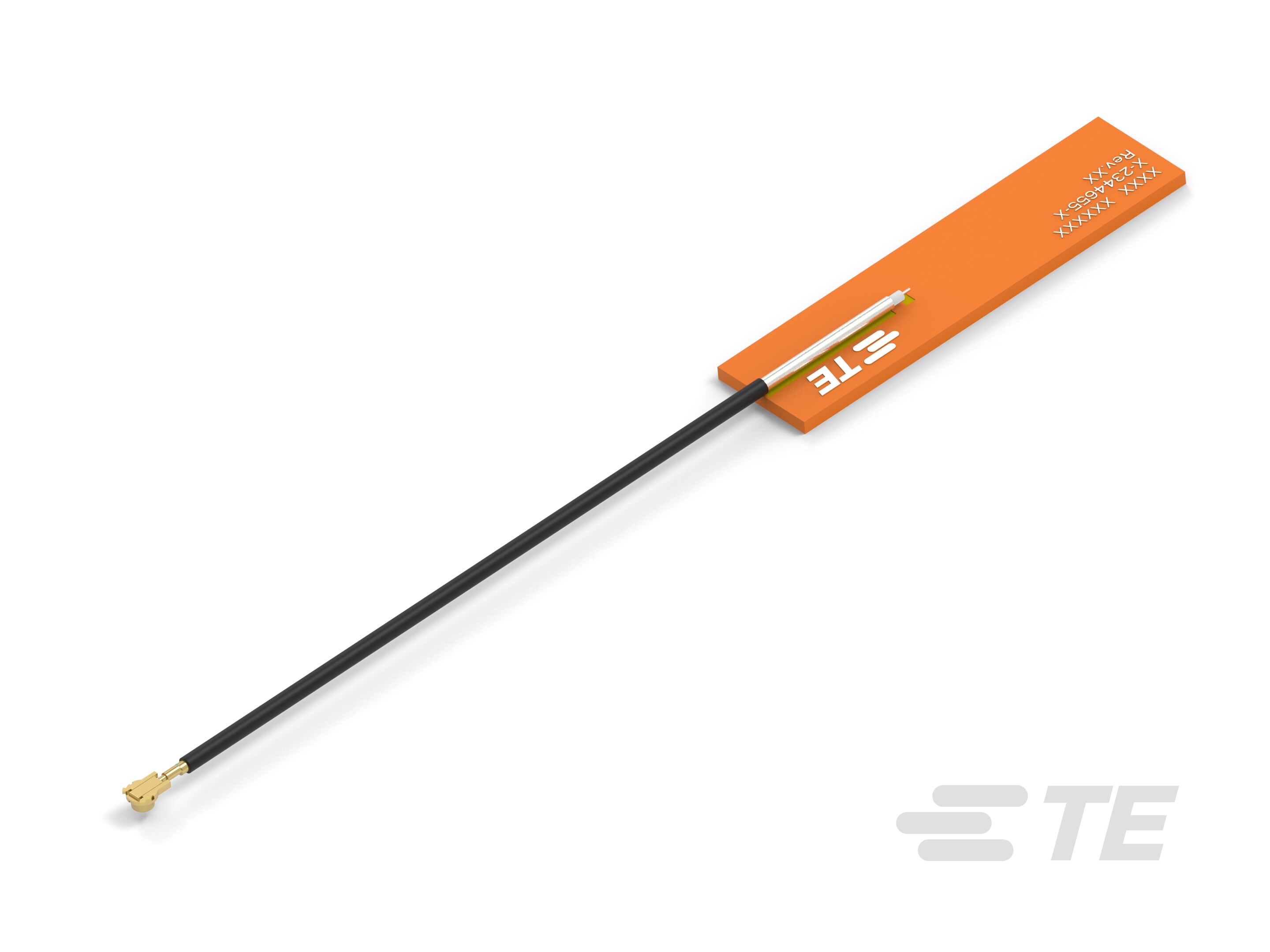

PCB Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive, MHF4, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2344655-8
Gain:5.9 dB
VSWR:2.7:1
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, ZigBee
Band Type:Triple Band
Impedance:50 Ω
Antenna Type:PCB
Polarization:Linear
Directionality:Omnidirectional
Mounting Style:Adhesive
Frequency Range:2450 - 2750 MHz, 5000 - 7000 MHz
Center Frequency:2600 MHz, 6000 MHz
Application:Bluetooth, Wi-Fi
Antenna Termination Type:MHF4
SKU:AMP2344655-8

Detailed Description

Ensure seamless wireless connectivity with this RoHS-compliant Triple Band PCB Antenna. Boasting a gain of 5.9 dB and a VSWR of 2.7:1, it supports various protocols including ZigBee, Bluetooth, and multiple 802.11 standards. Designed for internal/embedded mounting with adhesive, this antenna operates in the 2450-2750 MHz and 5000-7000 MHz frequency ranges, making it ideal for Bluetooth and Wi-Fi applications. With a linear polarization and omnidirectional directionality, it guarantees reliable signal transmission. Featuring an impedance of 50 Ω and MHF4 termination, it offers efficient connectivity in a compact form factor. Perfect for use in a range of devices, this antenna is a must-have for maintaining strong and consistent wireless connections.
