284040-7

AMP284040-7
Heilind Number:AMP284040-7
Manufacturer:TE Connectivity
Manufacturer Number:284040-7
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

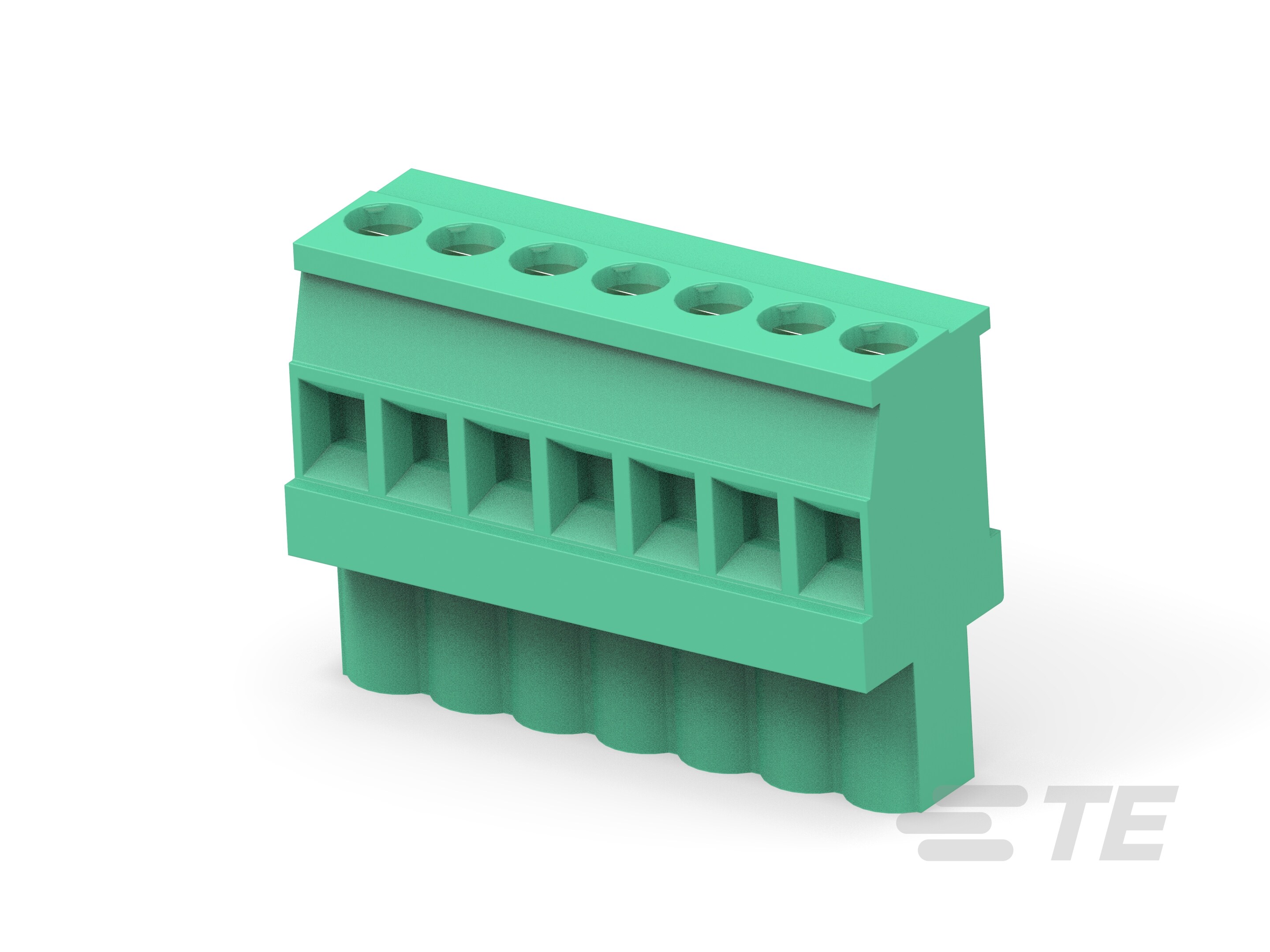

TERMI-BLOK VERTICAL PLUG STACK

More >>

Specifications

AttributeValue
Product Category:
Connectors Terminal Blocks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284040-7
Amperage:15 A
Gender:Plug
Housing Material:PA 6/6
Number of Rows:1
Contact Material:Phosphor Bronze
Pitch:.197 in, 5 mm
Voltage:300 V AC
Mount Angle:Vertical
Block Type:Stacking Plug
Screw Size:M3
Package Quantity:100
Contact Amperage:15 A
Number of Positions:7
Housing Color:Green
GPL:124
Packaging:Box
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Wire & Cable
Product Code:7743
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:Without
Screw Flange:Without
Screwless Terminal Block:Yes
Wire Protection:With
Part Aliases:284040-7
SKU:AMP284040-7

Detailed Description

Easily connect power and signal wires with our TERMI-BLOK VERTICAL PLUG STACK. Designed for efficient stacking in a single row, this plug features 7 positions for secure connections. With a durable PA 6/6 housing in a vibrant green color, it offers reliable performance in industrial settings. The phosphor bronze contacts with tin plating ensure excellent conductivity, while the screwless terminal block design allows for quick and easy installations. Operating in a wide temperature range from -40 to 105°C (-40 to 221°F), it's suitable for various applications. RoHS compliant and with a voltage rating of 300V AC, this connector is a dependable choice for wire to board connections. Each package contains 100 units, making it ideal for bulk installations. Upgrade your connectivity solutions with our TERMI-BLOK VERTICAL PLUG STACK.
