284518-5

AMP284518-5
Heilind Number:AMP284518-5
Manufacturer:TE Connectivity
Manufacturer Number:284518-5
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

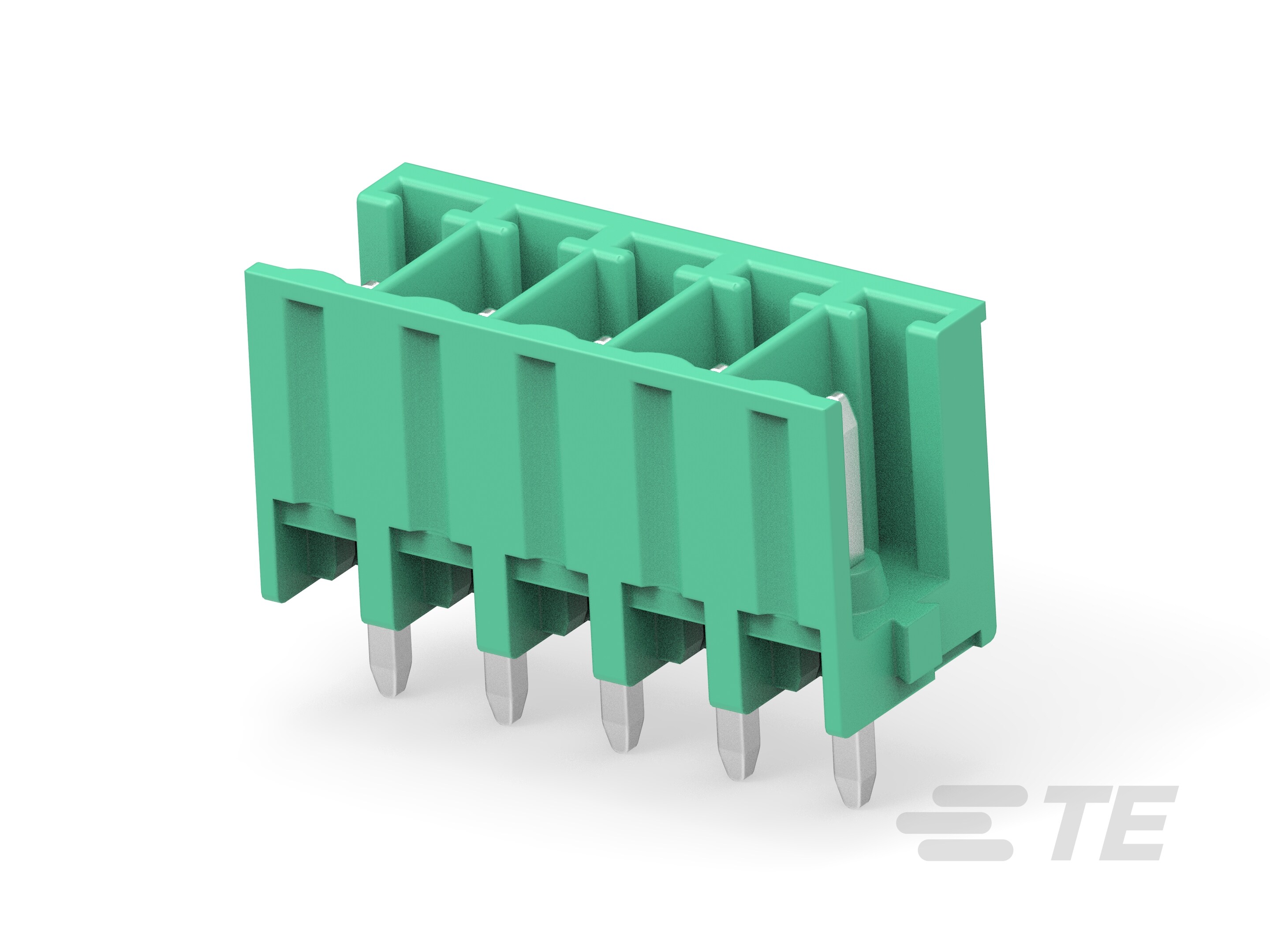

5P TERMIBLOK HDR DIR MODULE

More >>

Specifications

AttributeValue
Product Category:
Connectors Terminal Blocks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284518-5
Amperage:11 A
Gender:Header
Housing Material:PA 6/6
Number of Rows:1
Mount Type:Board Mount
Contact Material:Phosphor Bronze
Pitch:.15 in, 3.81 mm
Voltage:300 V AC
Mount Angle:Vertical
Block Type:PCB Mount
Package Quantity:150
Contact Amperage:11 A
Number of Positions:5
Housing Color:Green
GPL:124
Tail Length:.134 in, 3.4 mm
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7744
Wire Size:.05 - 2 mm², 14 - 30 AWG
Connector System:Wire to Board
Stacking Configuration:Side Stackable
ECCN:EAR99
Header Type:Shrouded
Interlock:With
Closed End:Without
Stacked Levels:Without
Threaded Flange:Without
Contact Mount Style:Through Hole
Mating Angle:180°
Screw Flange:Without
Screwless Terminal Block:No
Part Aliases:284518-5
SKU:AMP284518-5

Detailed Description

Easily connect power and signal cables with this 5-position Header Terminal Block. Designed for efficient board mounting, this green PA 6/6 housing block features phosphor bronze contacts with tin plating, ensuring reliable conductivity. With an amperage rating of 11A and a voltage capacity of 300V AC, it's ideal for industrial applications. The vertical mount orientation and 3.81mm pitch offer seamless integration onto printed circuit boards. Operating in a wide temperature range from -40 to 105°C (-40 to 221°F), it guarantees performance in various environments. RoHS compliant and suitable for wire-to-board connections, this terminal block is a versatile solution for your connectivity needs.
