284519-8

AMP284519-8
Heilind Number:AMP284519-8
Manufacturer:TE Connectivity
Manufacturer Number:284519-8
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

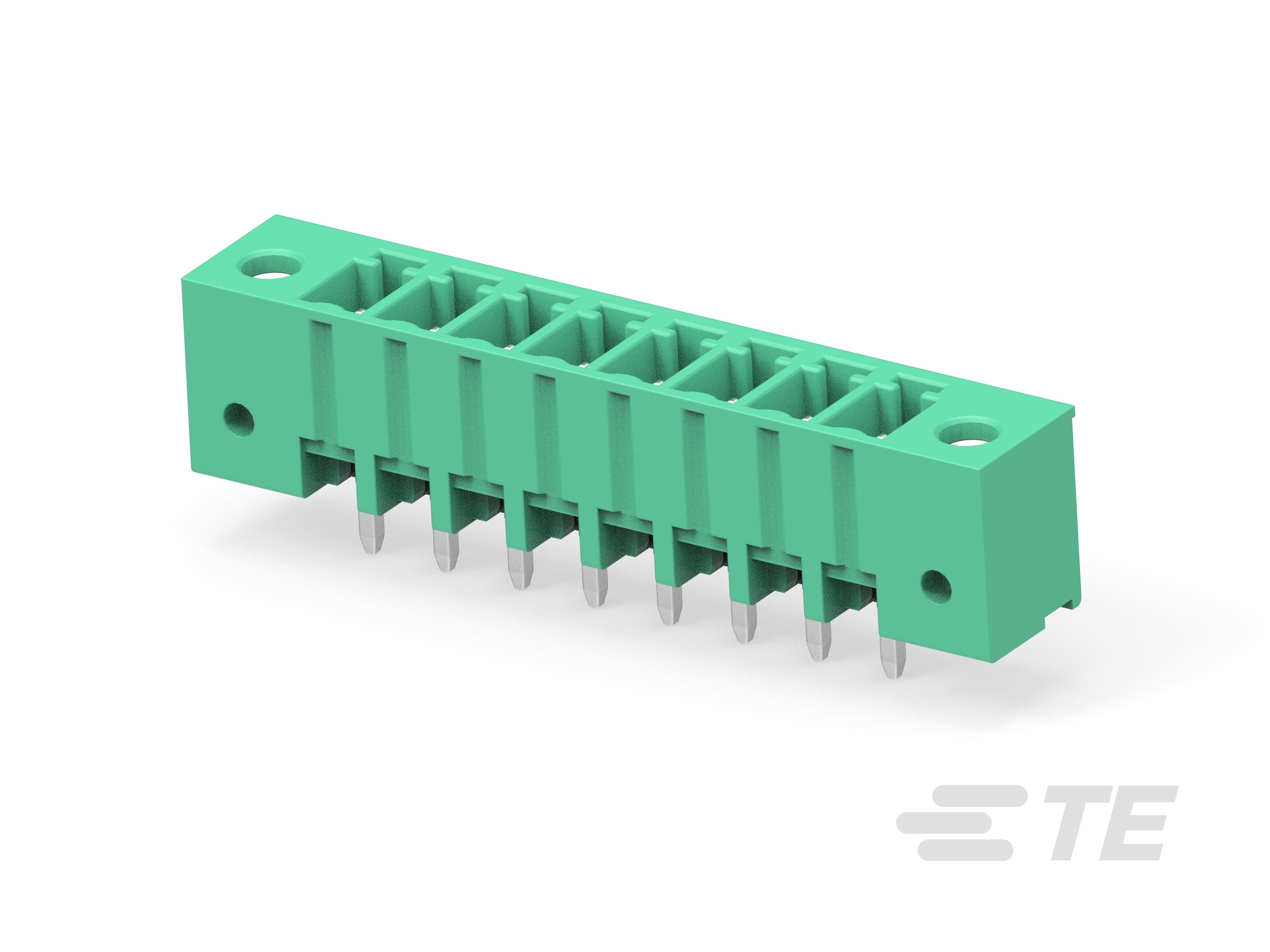

8P TERMIBLOK HDR DIR VITI 3

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284519-8
Amperage:11 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:8
Number of Rows:1
Mount Type:Board Mount
Contact Material:Phosphor Bronze
Pitch:.15 in, 3.81 mm
Voltage:300 V AC
Mount Angle:Vertical
Block Type:PCB Mount
Package Quantity:100
Contact Amperage:11 A
Number of Positions:8
Housing Color:Green
GPL:124
Tail Length:.134 in, 3.4 mm
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7744
Wire Size:.05 - 2 mm², 14 - 30 AWG
Connector System:Wire to Board
ECCN:EAR99
Header Type:Shrouded
Interlock:Without
Closed End:With
Stacked Levels:Without
Threaded Flange:With
Contact Mount Style:Through Hole
Mating Angle:180°
Screw Flange:Without
Screwless Terminal Block:No
Part Aliases:284519-8
SKU:AMP284519-8

Detailed Description

Enhance your power and signal connections with our 8-position PCB Mount Terminal Block Header. Designed for efficient board mounting, this header features a durable PA 6/6 housing in a vivid green color. With a contact pitch of 3.81 mm (.15 in) and a contact amperage of 11 A, it offers reliable performance for a wide range of applications. The phosphor bronze contacts with tin plating ensure optimal conductivity, while the lead-free solder process makes it environmentally friendly. Operating within a temperature range of -40 to 105 °C (-40 to 221 °F), this header is suitable for industrial use. Each package includes 100 units, making it convenient for large-scale projects. RoHS compliant and with a voltage rating of 300 V AC, it meets essential safety standards. Whether you're working on a power distribution system or a signal transmission setup, this header is a dependable choice for your connectivity needs.
