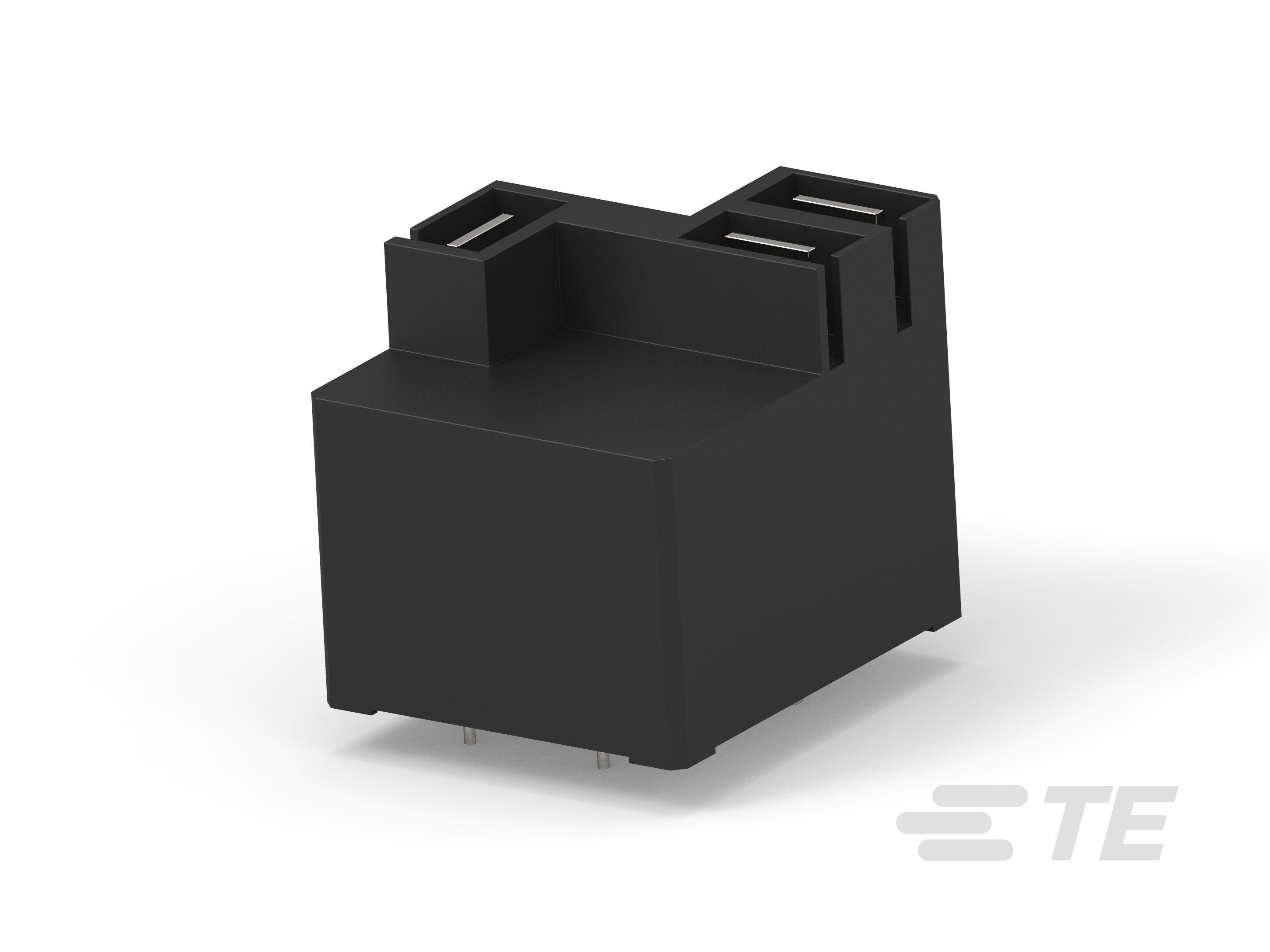

3-1419104-9

AMP3-1419104-9
Heilind Number:AMP3-1419104-9
Manufacturer:TE Connectivity
Manufacturer Number:3-1419104-9
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

T9AS5D22-5

More >>

Specifications

AttributeValue
Product Category:
Relays Power Relays
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 3-1419104-9
Amperage:20 A
Mount Type:Printed Circuit Board
Contact Material:Silver Cadmium Oxide (AgCdO)
Contact Plating:Silver Cadmium Oxide (AgCdO)
Number of Poles:1
Coil Resistance:25 Ω
Coil Current:.2 A
Coil Voltage:5 VDC
Output Type:AC
Maximum Output Voltage:240 V
Maximum Switching Voltage:277 VAC
Termination Type:Printed Circuit Terminals
Contact Voltage:277 VAC
Operating Temperature Range:-55 - 85 °C, -67 - 185 °F
Contact Arrangement:1 Form C (CO)
SKU:AMP3-1419104-9

Detailed Description

Enhance your circuit board with the T9AS5D22-5, a high-performance power relay designed for optimal functionality. With a 20A amperage rating and a single pole configuration, this relay offers reliable power control. The silver cadmium oxide contact material and plating ensure efficient conductivity, while the 5VDC coil voltage and 25Ω resistance provide stable operation. Featuring a 1 Form C contact arrangement, it can handle up to 277VAC, making it suitable for a wide range of applications. With RoHS compliance and a wide operating temperature range of -55 to 85°C (-67 to 185°F), this relay guarantees both performance and durability. Upgrade your system with this essential component for seamless power management.
