| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 3-1617543-0 |
| Mount Type: | Printed Circuit Board |
| Coil Resistance: | 800 Ω |
| Coil Voltage: | 12 VDC |
| Contact Configuration: | 2 Form C, DPDT, 2 C/O |
| Maximum Switching Voltage: | 28 VDC |
| Termination Type: | PC Pin(s) |
| Contact Current Rating: | 1 A |
| Part Aliases: | M28776/7-004L |
| SKU: | AMP3-1617543-0 |

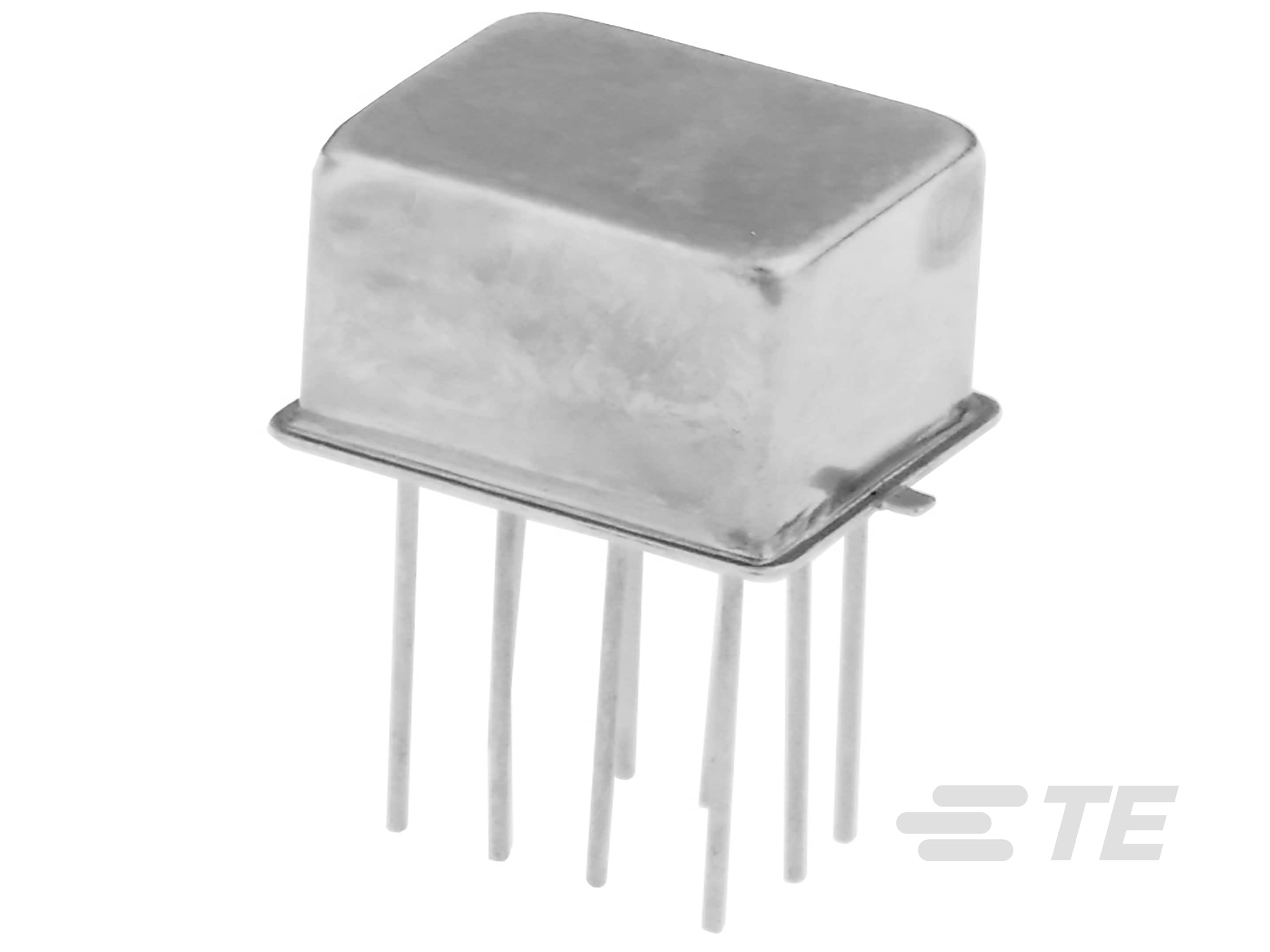

3-1617543-0
| Heilind Number: | AMP3-1617543-0 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 3-1617543-0 |
| ECAD Model: | |
Specifications
Detailed Description
Enhance your circuit board setup with the JMGST-12L=M28776/7-004L relay, a reliable component designed for seamless signal and communication relay operations. Featuring a coil resistance of 800 Ω and a coil voltage of 12 VDC, this DPDT relay offers a contact configuration of 2 Form C, with 2 C/O contacts for versatile connectivity. With a maximum switching voltage of 28 VDC and a contact current rating of 1 A, it ensures efficient performance in a variety of applications. The PC Pin(s) termination type simplifies installation, making it a convenient choice for electronic projects. While not RoHS compliant, this relay remains a quality solution for your relay needs. Elevate your circuit design with this essential component, perfect for a range of products and applications.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| TE Connectivity: | 3-1617543-0 |
| Other Names: | M28776/7-004L |
