| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 7-1617825-8 |
| Amperage: | 10 A at 28 VDC, 115 VAC |
| Mount Type: | Raised Vertical Flange Mount |
| Operation Type: | Delay on Operate |
| Repeatability: | ±10% |
| Termination Type: | Solder Pin Terminal |
| Status Indicator: | None |
| Enclosure: | Hermetic Sealed Metallic |
| Dimensions: | 1.015 x 1.015 x 1 in, 25.79 x 25.79 x 25.4 mm |
| Contact Arrangement: | 2 Form C, DPDT, 2 C/O |
| Delay Time: | 20 seconds |
| Input Voltage: | 28 VDC |
| Control Type: | Adjustable |
| SKU: | AMP7-1617825-8 |
7-1617825-8
| Heilind Number: | AMP7-1617825-8 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 7-1617825-8 |
| ECAD Model: | |
Specifications
Detailed Description

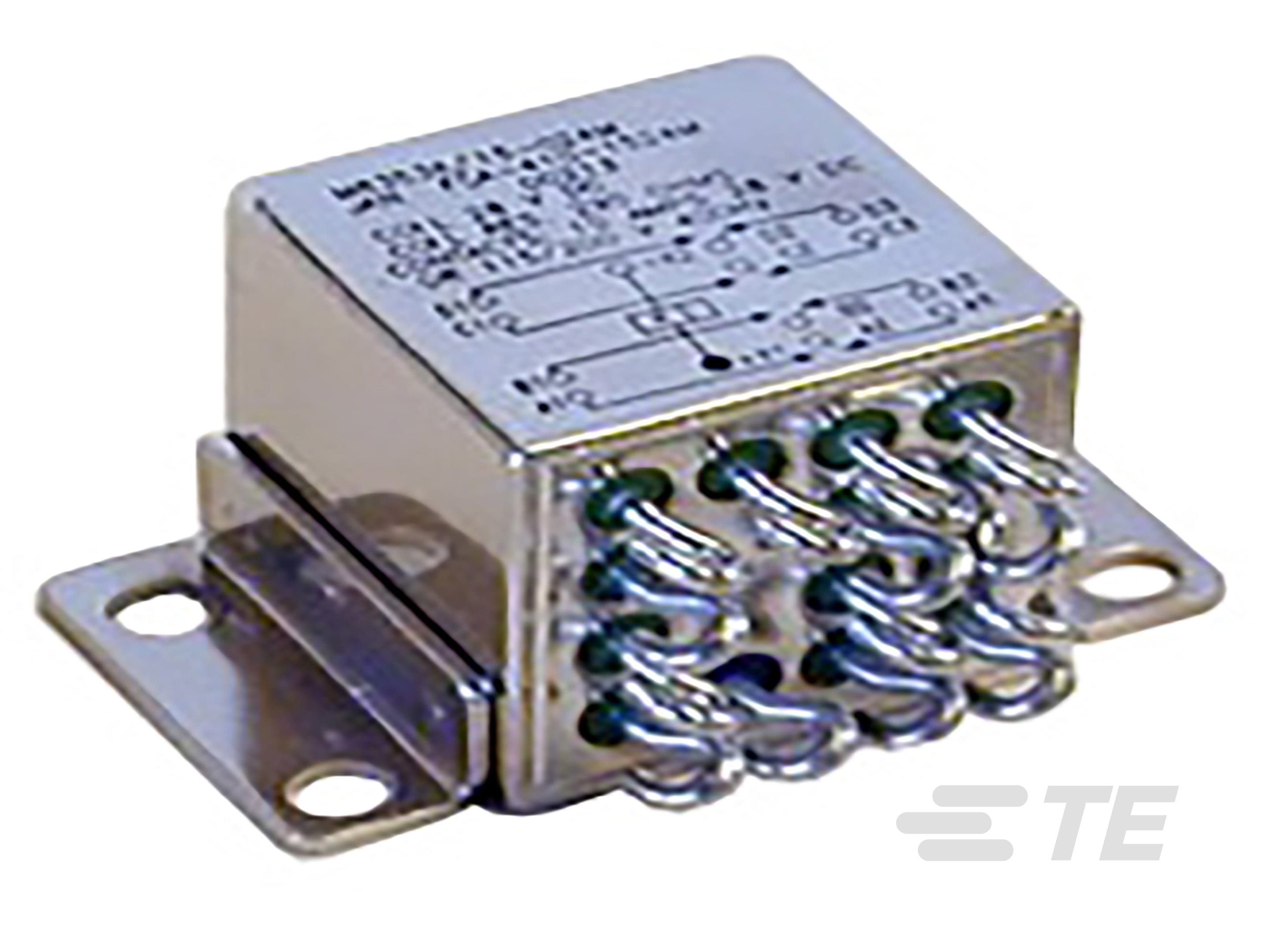

Experience reliable time-delay functionality with our TD230-2002P=TDAO relay. Designed for seamless operation in critical systems, this hermetically sealed metallic relay boasts a raised vertical flange mount for easy installation. With a contact arrangement of 2 Form C (DPDT), it offers two normally open and two normally closed positions for versatile connectivity. The adjustable delay time of 20 seconds allows for precision timing control, while its rugged construction ensures durability in demanding environments. Ideal for applications requiring a 10 A current at 28 VDC or 115 VAC, this relay guarantees consistent performance with a repeatability of ±10%. Whether you need to delay on operate, this relay is the perfect solution for your time-critical needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
