| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 8-2176244-4 |
| Size Code: | 0805 |
| Power Rating: | .5 W |
| Termination Type: | Solder |
| Resistance: | 8.2 MΩ |
| Rated Voltage: | 150 V |
| Mounting Style: | Surface Mount |
| Dimensions: | 2 x 1.25 x .55 mm |
| Product: | Surface Mount Resistors |
| Product Type: | General Purpose Resistor |
| Element Type: | Thick Film |
| Tolerance: | 5% |
| Number of Terminations: | 2 |
| SKU: | AMP8-2176244-4 |
8-2176244-4
| Heilind Number: | AMP8-2176244-4 |
| Manufacturer: | TE Connectivity |
| Manufacturer Number: | 8-2176244-4 |
| ECAD Model: | |
Specifications
Detailed Description

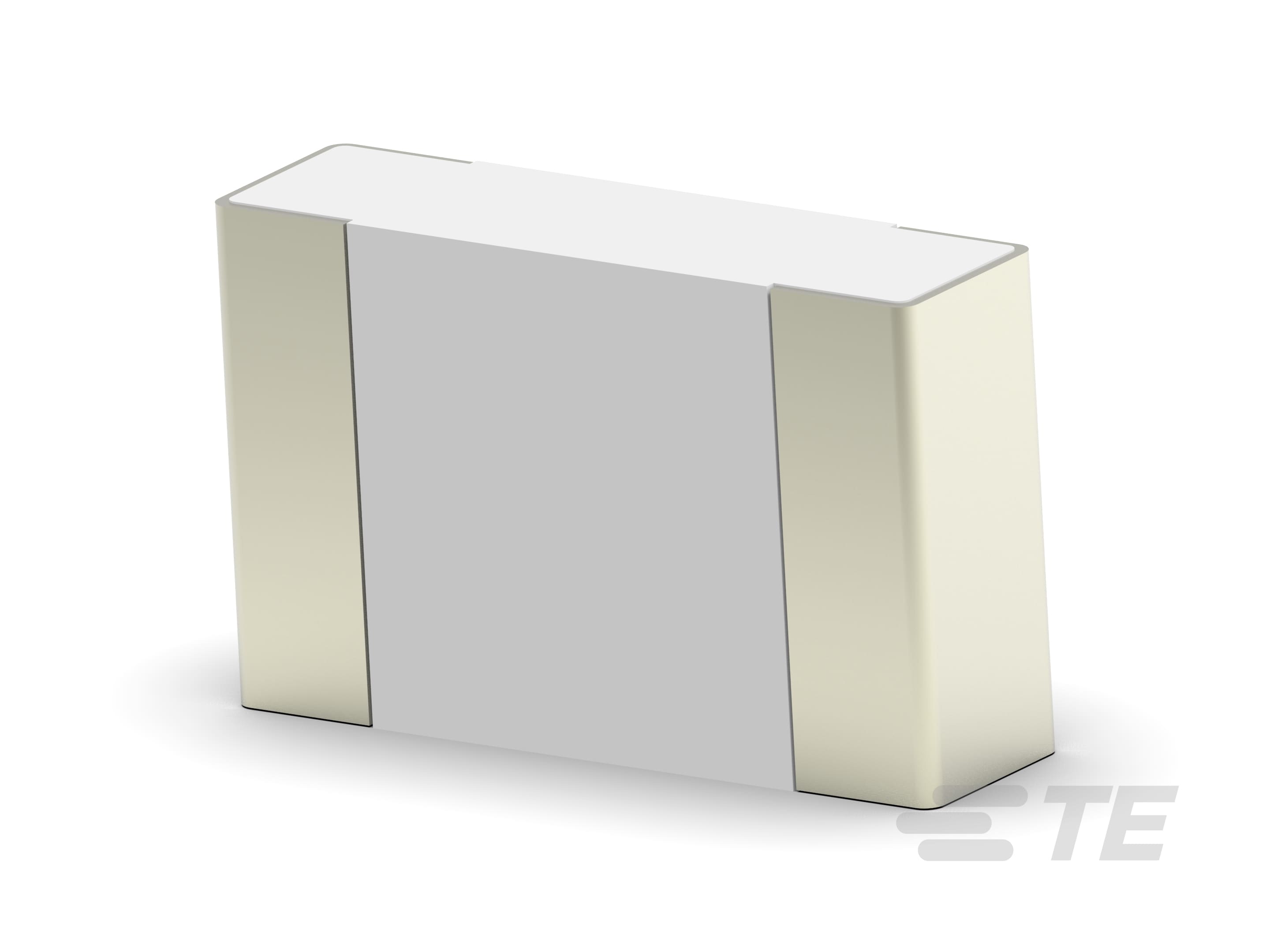

Enhance circuit performance with our CRGS0805 5% 8M2 Surface Mount Resistor, designed for precise resistance control in electronic applications. With a power rating of .5 W and a resistance of 8.2 MΩ, this general purpose resistor ensures reliable operation at a rated voltage of 150 V. Featuring a compact 0805 size and solder termination, it is easily integrated into PCB layouts. The thick film element technology offers high stability and accuracy, while the 5% tolerance guarantees consistent performance. RoHS compliance ensures environmental responsibility, making it an ideal choice for various electronic projects. Upgrade your designs with this Surface Mount Resistor for optimal functionality.
For Use With
| Product | Part # | Description | Stock |
|---|---|---|---|
 | TE Connectivity 8-2176244-5 |  |
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
