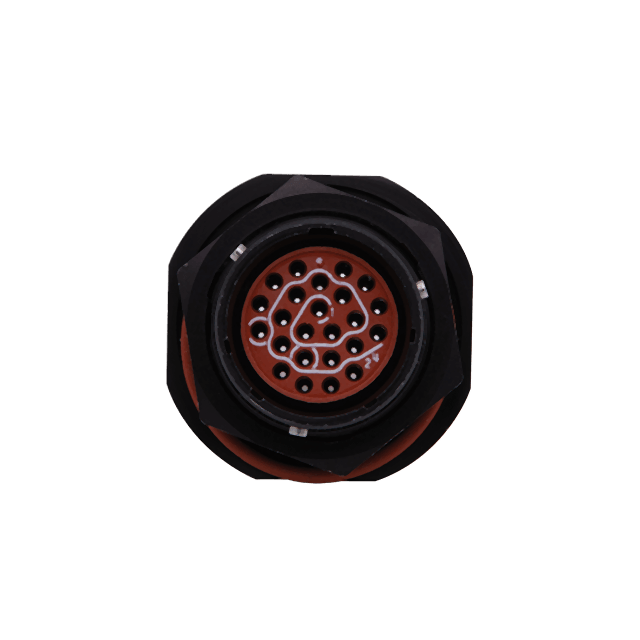

MS24264R20B41SN

CIMMS24264R20B41SN
Heilind Number:CIMMS24264R20B41SN
Manufacturer:Cinch Connectivity Solutions
Manufacturer Number:MS24264R20B41SN
ECAD Model:
3D Model

Description:

CIMMS24264R20B41SN

More >>

Specifications

AttributeValue
Product Category:
Circular Connectors & Accessories Circular Connectors
Manufacturer:Cinch Connectivity Solutions
Manufacturer Part Number:Cinch Connectivity Solutions MS24264R20B41SN
Military Specification:MIL-C-26500
Series:Omega
Gender:Female
Housing Material:Aluminum
Number of Contacts:41
Mount Type:Panel Mount
Termination Method:Crimp
Maximum Operating Temperature:200 °C
Minimum Operating Temperature:-55 °C
Shell Size:20
Contact Type:Socket
Mating Type:Bayonet
Seal Material:Fluorosilicone, Silicone Rubber
Shell Size - Insert Arrangement:20-41
Shell Material:Aluminum
Mating Cycles:500 cycle
Shell Type:Square Flange Receptacle
Shell Finish:Anodized
Current Rating:7.5 A
Voltage Rating:1500 VAC
Insert Arrangement:20-41
Locking Mechanism:Bayonet
Operating Temperature:-55 to 200 °C
SKU:CIMMS24264R20B41SN

Detailed Description

The Omega Series Female Circular Connector, SKU MS24264R20B41SN, is a MIL-DTL-26500 compliant, high-reliability component designed for rugged applications. Constructed with durable aluminum housing and featuring 41 gold-plated contacts, this panel mount connector ensures secure and efficient electrical connections. With a wide operating temperature range of -55°C to 200°C and a voltage rating of 1500 VAC, it is suitable for demanding environments. The bayonet mating type and 500 mating cycle durability make it ideal for military, aerospace, and other hi-rel industries. Its crimp termination method and Anodized shell finish guarantee reliable performance. The seal materials, Silicone Rubber, and Fluorosilicone provide excellent protection against environmental factors. With a current rating of 7.5 A, this connector is a dependable solution for your connectivity needs, meeting the highest standards of quality and performance.
