  7. 3M Wire-to-Board System

3M™ Wire-to-Board System [0.050" Pitch]

Featuring 3M Socket 451 and 3M Header 452 Series

Reliable connections with more board space.

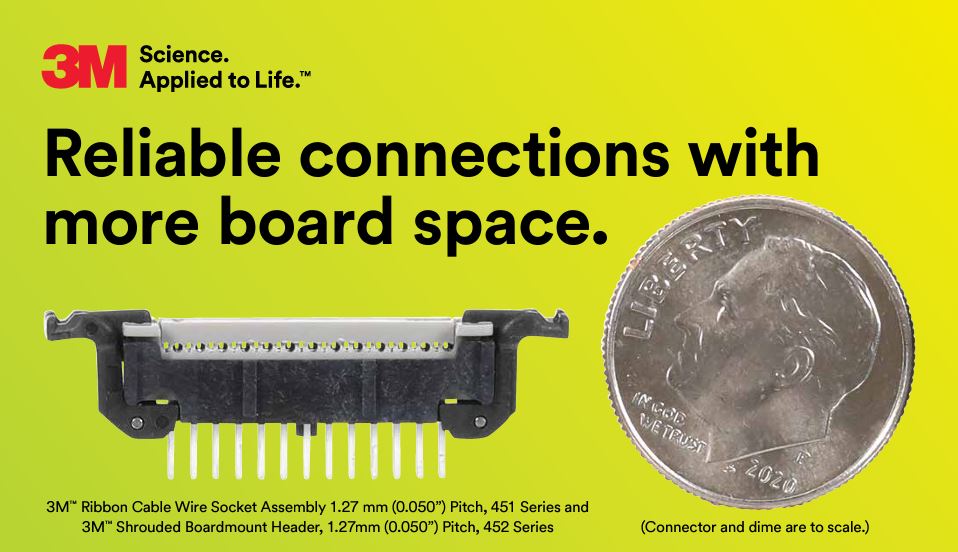

When PCB real estate is at a premium, use 3M socket 451 and 3M header 452 series together along with offerings from the 3M cable portfolio to save space in wire-to-board designs.

With electronics becoming more and more complex, a single printed circuit board is being designed to perform an increasing number of functions and operations. With high-density PCB designs fitting more components onto a board than ever before, PCB real estate is at a premium. 3M socket 451 and 3M header 452 series, used together, can help solve this problem almost anywhere signal-based control is a requirement.

  • 0.050″ pitch wire-to-board system at half the size of a standard 0.100″ pitch
  • Enables design flexibility in wire-to-board and PLC controllers, especially for small devices.
  • Uses proven reliable insulation displacement contact (IDC) technology

Product Details:

FEATURES & BENEFITS:

  • Delivers high connection density to ribbon cable applications
  • Extremely small 1.27mm (0.050″) pitch saves space
  • Enables cable end and feed through termination as well as mass termination
  • Available friction latches help protect against accidental box header disconnects
  • UL and CUL Listed
  • Mates with 3M™ Shrouded Boardmount Header 1.27mm (0.050″) Pitch Latch and Eject 452 Series

Learn More

FEATURES & BENEFITS:

  • Delivers high connection density to ribbon cable applications
  • Extremely small 1.27mm (0.050″) pitch saves space
  • Available friction latching and ejection system enables reliable connections in challenging environments
  • UL and CUL Listed
  • Mates with 3M™ Ribbon Cable Wiremount Socket 1.27mm (0.050″) Pitch 451 Series

Learn More

Product Resources

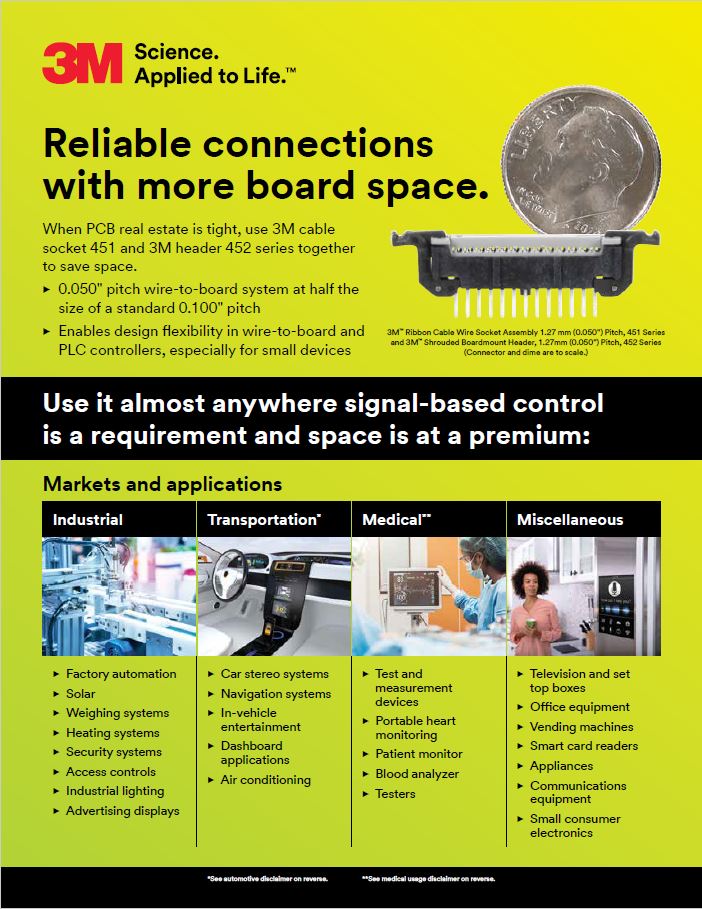

Product Application Profiles

Use 3M™ Wire-to-Board system almost anywhere signal-based control is a requirement and space is at a premium.

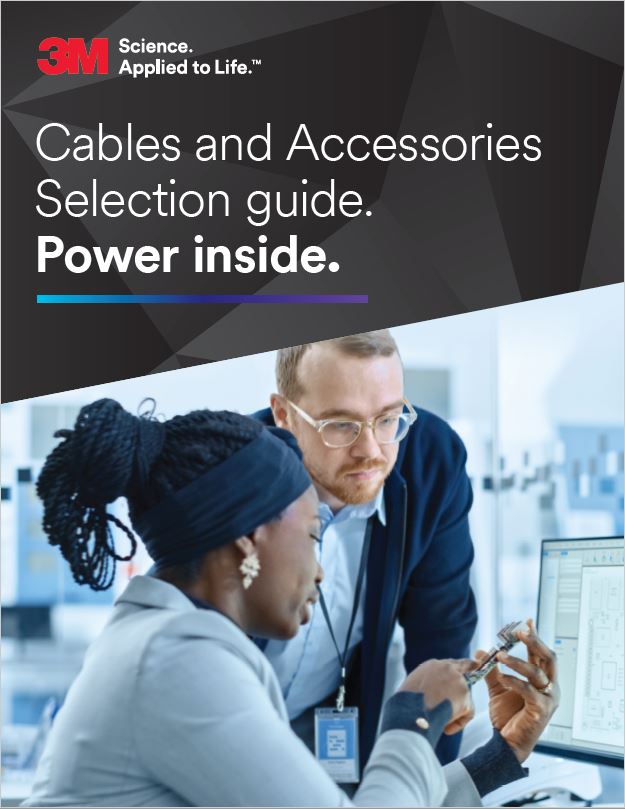

Cable Mating Guide

Help complete your wire-to-board solution with 3M's Cables and Accessories Selection guide.
