| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose LF10WBP-4P(31) |
| Gender: | Male |
| Series: | LF |
| IP Rating: | IPX8 |
| Wire Size: | 16 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | 10 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Shell Finish: | Nickel |
| Mating Cycles: | 1000 cycle |
| Seal Material: | Chloroprene Rubber |
| Current Rating: | 10 A |
| Voltage Rating: | 125 V |
| Contact Plating: | Gold |
| Housing Material: | Metal |
| Number of Contacts: | 4 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -25 °C |
| Shell Size - Insert Arrangement: | 10-4 |
| SKU: | HIRLF10WBP-4P(31) |

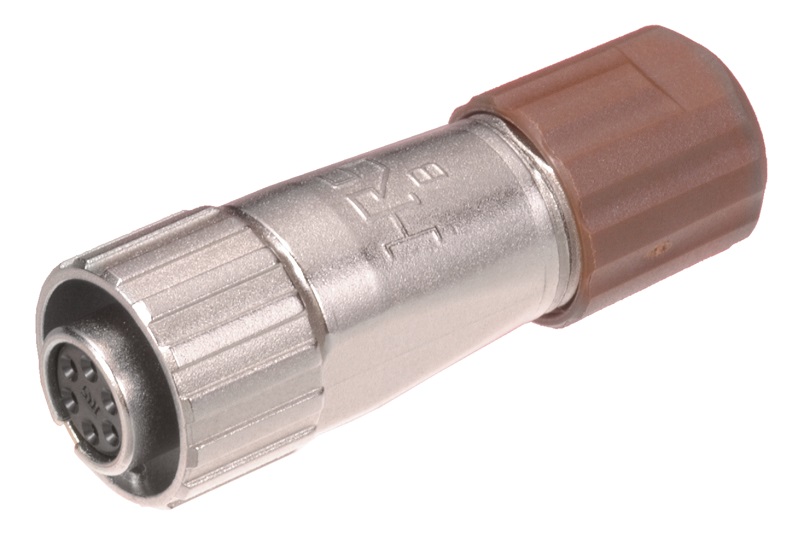

LF10WBP-4P(31)
.jpg)
| Heilind Number: | HIRLF10WBP-4P(31) |
| Manufacturer: | Hirose |
| Manufacturer Number: | LF10WBP-4P(31) |
| ECAD Model: | |
Specifications
Detailed Description
The LF10WBP-4P(31) connector, part of the LF series, is designed for reliable and durable performance in demanding environments. Featuring a male gender with a metal housing, this connector ensures secure and stable connections. With four gold-plated contacts and a solder termination method, it guarantees excellent conductivity and longevity. Its IPX8 rating offers protection against dust and water ingress, making it suitable for outdoor and industrial applications. The straight cable mount with a bayonet mating type facilitates easy installation. Constructed with Chloroprene Rubber seals and a nickel shell finish, it ensures robust sealing and corrosion resistance. This connector is RoHS compliant and rated for 10A at 125V, making it ideal for a wide range of electrical connections. With a shell size of 10 and 16 AWG wire size compatibility, it provides versatility in usage. Whether in aerospace, military, or industrial settings, the LF10WBP-4P(31) connector delivers high performance and reliability, backed by its 1000 mating cycle durability.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 08/15/2025 | PC-0055122 - Additional country of production. Production using the existing mold → Produc>on using the added mold Processing supplier: Company T → Company S will be added. | Download | |||
| 07/23/2025 | PC-0046271 - Equipment replacement / Production location change. Target Part: Grounding Bracket Production by the current processing supplier using the existing mold ⇒ Production by an additional processing supplier using the renewed mold. | Download | |||
| 12/30/2024 | PC-0046912 - Additional Production Location. As for the assembly process, we will add the Hirose Ichinoseki factory in addition to Company A. There will be no change in manufacturing equipment. | Download | |||
| 05/31/2024 | PC-0042442 - Production location addition. The manufacturing process of assembly will be performed by Company A + Company B + Company C. There is no change in the component supplier. | Download | |||
| 02/11/2022 | HIR-430-021018 - UL Clarification. Recently, Toray Industries, Inc.,(Hereinafter Toray) announced that certain resin products were improperly identified by Toray as receiving certification from Underwriters Laboratories (hereinafter, "UL"). | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
