| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185106804 |
| Pitch: | 1.27 mm, 2.54 mm |
| Gender: | Female |
| Series: | SEK |
| Wire Size: | 28 - 26 AWG |
| Housing Color: | Gray |
| Mating Cycles: | 250 cycle |
| Current Rating: | 2.5 A |
| Number of Rows: | 2 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Gold Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Plastic |
| Performance Level: | Class II |
| Number of Contacts: | 10 |
| Termination Method: | IDC |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09185106804 |
09185106804
Specifications
Detailed Description

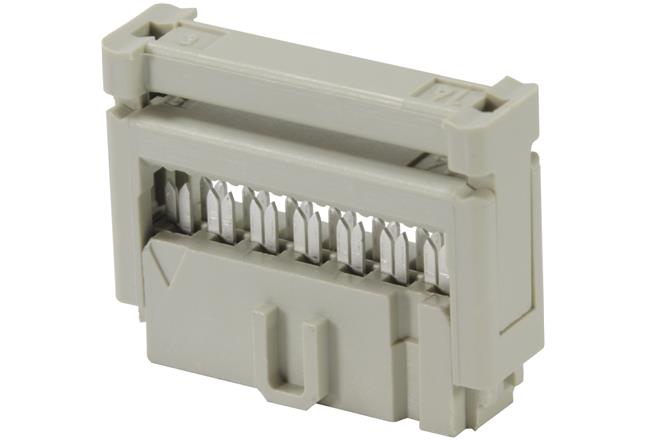

The SEK Female Connector with a Closed End Cover, SKU 09185106804, offers reliable connectivity in various applications. Designed with a thermoplastic resin (PBT) housing in a sleek beige finish, this connector features 10 gold-plated contacts for enhanced conductivity. With a rated current of 2.5A and a performance level of 2, it ensures efficient power transmission. The IDC termination method simplifies installation, accommodating wire sizes ranging from 28 to 26 AWG. Operating between -55°C to 125°C, it guarantees performance in diverse environments. ROHS compliant and with a voltage rating of 1kV, this connector is not only high-performing but also environmentally friendly. Ideal for use in Class II applications, it offers 250 mating cycles, ensuring long-lasting durability. Upgrade your connectivity solutions with the SEK Female Connector.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
