| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195507324 |
| Color: | Beige |
| Pitch: | 2.54 mm |
| Gender: | Male |
| Series: | SEK Low-profile |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 50 cycle |
| Current Rating: | 1 A |
| Number of Rows: | 2 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Plastic |
| Number of Contacts: | 50 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09195507324 |
09195507324
Specifications
Detailed Description

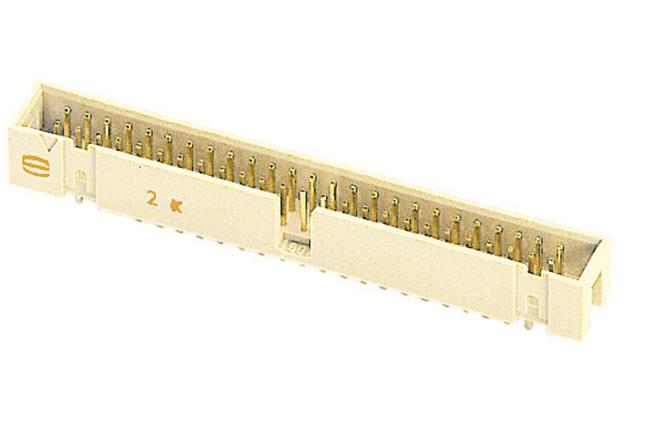

SEK Low-profile Connector, SKU 09195507324, boasts a male design crafted from durable thermoplastic resin (PCT) in a sleek beige finish. Ideal for PCB to cable connections, this connector features reflow soldering termination (THR/SMC) for secure and efficient assembly. With a rated current of 1A, it offers reliable performance in a wide temperature range from -55°C to 125°C. Its 50 contacts in 2 rows ensure robust connectivity, while the copper alloy contacts with tin over nickel plating guarantee excellent conductivity. Meeting IP20 standards for protection, this connector is suitable for various applications requiring a straight mount angle and 2.54mm pitch. UL 94V-0 rated for flammability, it ensures safety in operation. Perfect for board to board connections, the SEK Connector delivers high-quality performance in a compact and low-profile design.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
