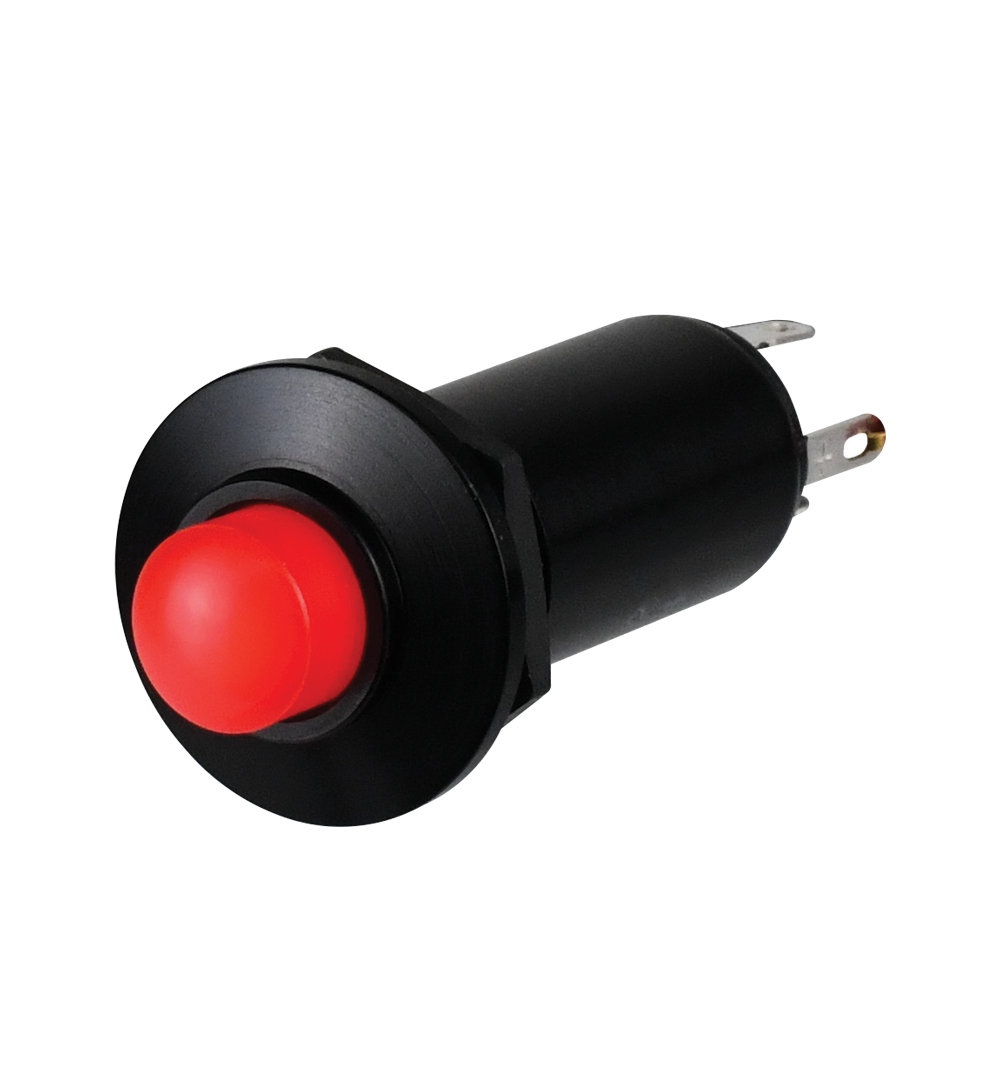

LP3-31H322W

OTTLP3_31H322W
Heilind Number:OTTLP3-31H322W
Manufacturer:OTTO Controls
Manufacturer Number:LP3-31H322W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-31H322W
Series:LP3
Cap Color:White - Translucent
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Raised Dome)
Actuator Shape:Round
Mounting Style:Panel Mount
Actuator Length:.25 in
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (DC):28 VDC
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
Current Rating:5 A
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Voltage Rating (AC):115 VAC
Illumination Color:Green
Illumination Voltage:12 V
Contact Configuration:SPST-NO
SKU:OTTLP3-31H322W

Detailed Description

Introducing the LP3 Series Illuminated Pushbutton Switch, featuring a sleek design with a white translucent cap and black aluminum housing. Designed for durability with a rating of 25,000 cycles, this sealed switch is perfect for demanding environments. The raised dome button actuator provides a tactile response, and with a contact rating of 5A at 28VDC, it ensures reliable performance. The green illumination, powered by 12V, enhances visibility in low-light conditions. Ideal for panel mounting, this switch is suitable for a wide range of applications. With an operating temperature range of -55°C to 85°C and an IP6K8S rating, it guarantees reliable operation even in harsh conditions. Upgrade your control panel with the LP3 Series Pushbutton Switch for a high-quality, long-lasting solution.
