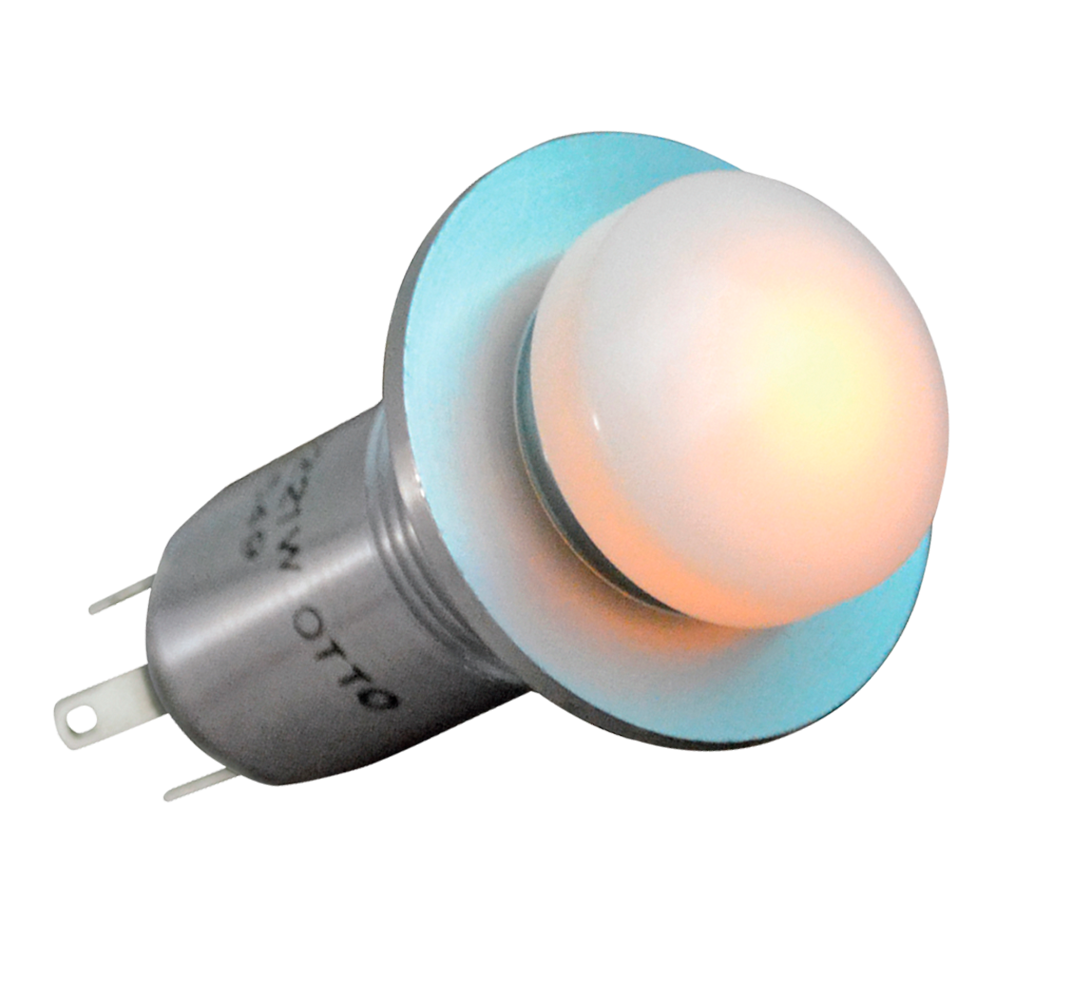

LP3-E3H352W

OTTLP3_E3H352W
Heilind Number:OTTLP3-E3H352W
Manufacturer:OTTO Controls
Manufacturer Number:LP3-E3H352W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Sealed, Momentary Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-E3H352W
Series:LP3
Cap Color:White - Translucent
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Exposed Dome)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.44 in
Contact Plating:Silver
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Quick Connect
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-E3H352W

Detailed Description

The LP3 series Push Button Switch, SKU LP3-E3H352W, is a high-performance component designed for durability and reliability in various applications. Featuring a sleek black aluminum case with a white translucent cap, this illuminated switch offers a visually appealing design. The button actuator, made of thermoplastic, provides a comfortable and responsive user experience. With an IP6K8S rating, it ensures protection against dust and water ingress, making it suitable for use in challenging environments. The SPDT contact configuration, with silver-plated brass contacts, guarantees efficient electrical connectivity. Operating at a wide temperature range from -55°C to 85°C, it is suitable for both indoor and outdoor use. The momentary action, On-(On) switch function, along with a current rating of 5A, meets the demands of various control applications. The green LED illumination, powered at 12V, adds a visual indicator for operation. With a high durability rating of 25,000 cycles, this sealed push button switch offers long-lasting performance. Ideal for panel mounting with quick connect termination, it is a reliable choice for industrial, automotive, and aerospace systems.
