LP3-V11A3213

OTTLP3_V11A3213
Heilind Number:OTTLP3-V11A3213
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V11A3213
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

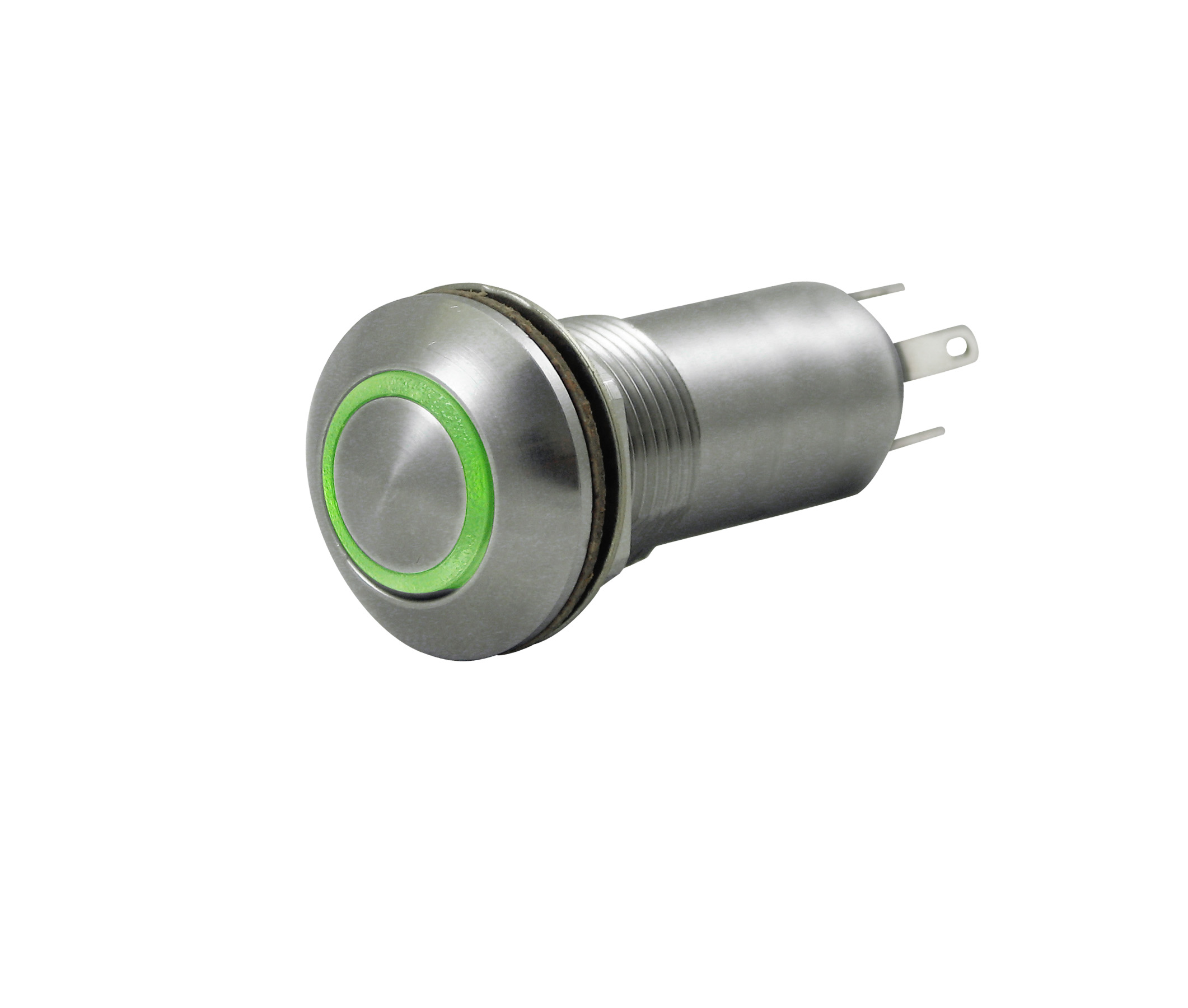

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V11A3213
Series:LP3-V
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (Low Profile Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.1 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Stainless Steel
Type:Sealed
Termination Type:Solder
Actuator Material:Stainless Steel
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-V11A3213

Detailed Description

Introducing the LP3-V11A3213, a highly durable and vandal-resistant pushbutton switch designed for reliable performance in demanding environments. Featuring a sleek silver housing and illuminated red button, this switch offers both visual appeal and functionality. The stainless steel construction ensures longevity, with a sealing rating of IP6K8S for protection against dust and water ingress. The momentary action, SPST-NO contact configuration, and 5A current rating make it ideal for various applications. With a wide operating temperature range of -55°C to 85°C and a durability rating of 25,000 cycles, the LP3-V11A3213 guarantees consistent operation even in extreme conditions. Perfect for industrial, automotive, and outdoor use, this switch is a dependable choice for your control panel needs.
