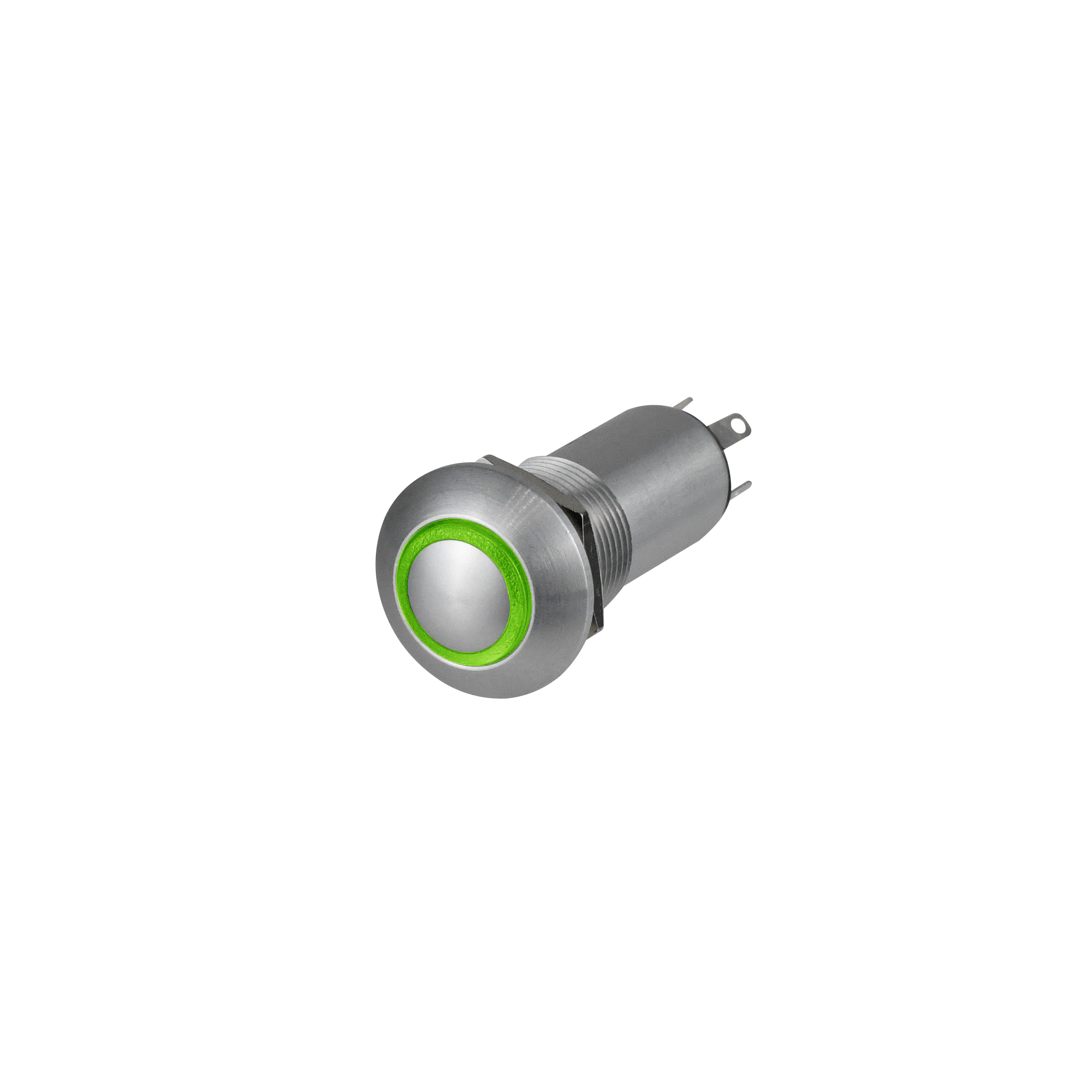

LP3-V11G3212

OTTLP3_V11G3212
Heilind Number:OTTLP3-V11G3212
Manufacturer:OTTO Controls
Manufacturer Number:LP3-V11G3212
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3-V11G3212
Series:LP3-V
Cap Color:Silver
IP Rating:IP68S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (High Profile Curved)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.22 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Stainless Steel
Type:Sealed
Termination Type:Solder
Actuator Material:Stainless Steel
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3-V11G3212

Detailed Description

Introducing the LP3-V Series Vandal Resistant Pushbutton Switch, designed for reliable performance in demanding environments. Featuring a rugged stainless steel housing and a sealed design with an IP68S rating, this switch is ideal for applications where durability is key. The high profile curved button, illuminated with a red LED, provides easy visibility and operation. With a momentary off-(on) switch function and SPST-NO contact configuration, it offers precise control. Rated for 25,000 cycles of use, this switch ensures long-lasting functionality. Suitable for panel mounting with solder termination, it is versatile and easy to install. Operating at temperatures ranging from -55°C to 85°C, and with voltage ratings of 115VAC and 28VDC, it is suitable for a wide range of industrial and commercial applications. Trust the LP3-V Series for dependable performance in critical settings.
