LP3S-F1U322W

OTTLP3S_F1U322W
Heilind Number:OTTLP3S-F1U322W
Manufacturer:OTTO Controls
Manufacturer Number:LP3S-F1U322W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

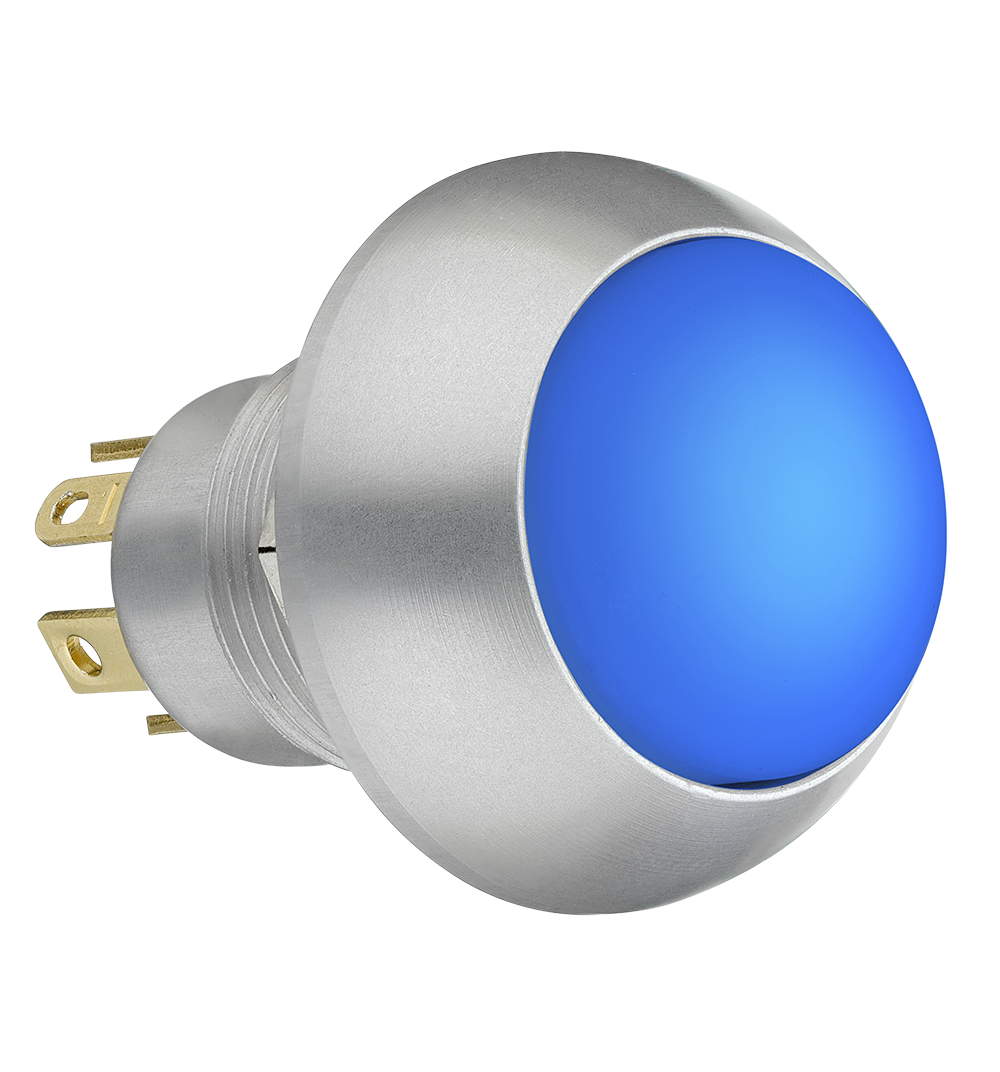

Shorter Behind Panel, Illuminated, Sealed, Momentary Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3S-F1U322W
Series:LP3S
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Dome (Flush)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Quick Connect
Actuator Shape:Round
Cap Color:White
Actuator Length:.491 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Deep Green
Illumination Voltage:12 V
SKU:OTTLP3S-F1U322W

Detailed Description

Introducing the LP3S-F1U322W, a high-performance momentary pushbutton switch designed for demanding applications. Featuring a sleek black case with a white flush dome actuator, this switch is both stylish and durable. Its IP6K8S rating ensures reliable performance even in harsh environments, while the sealed construction offers added protection against moisture and dust. The deep green illumination adds a touch of sophistication, making it easy to locate in low-light conditions. With a current rating of 5A and a voltage rating of 115VAC/28VDC, this switch is suitable for a wide range of power requirements. Whether used in aerospace, automotive, or industrial settings, the LP3S-F1U322W guarantees smooth and responsive operation. Upgrade your control panel with this high-quality pushbutton switch and experience the difference in performance.
