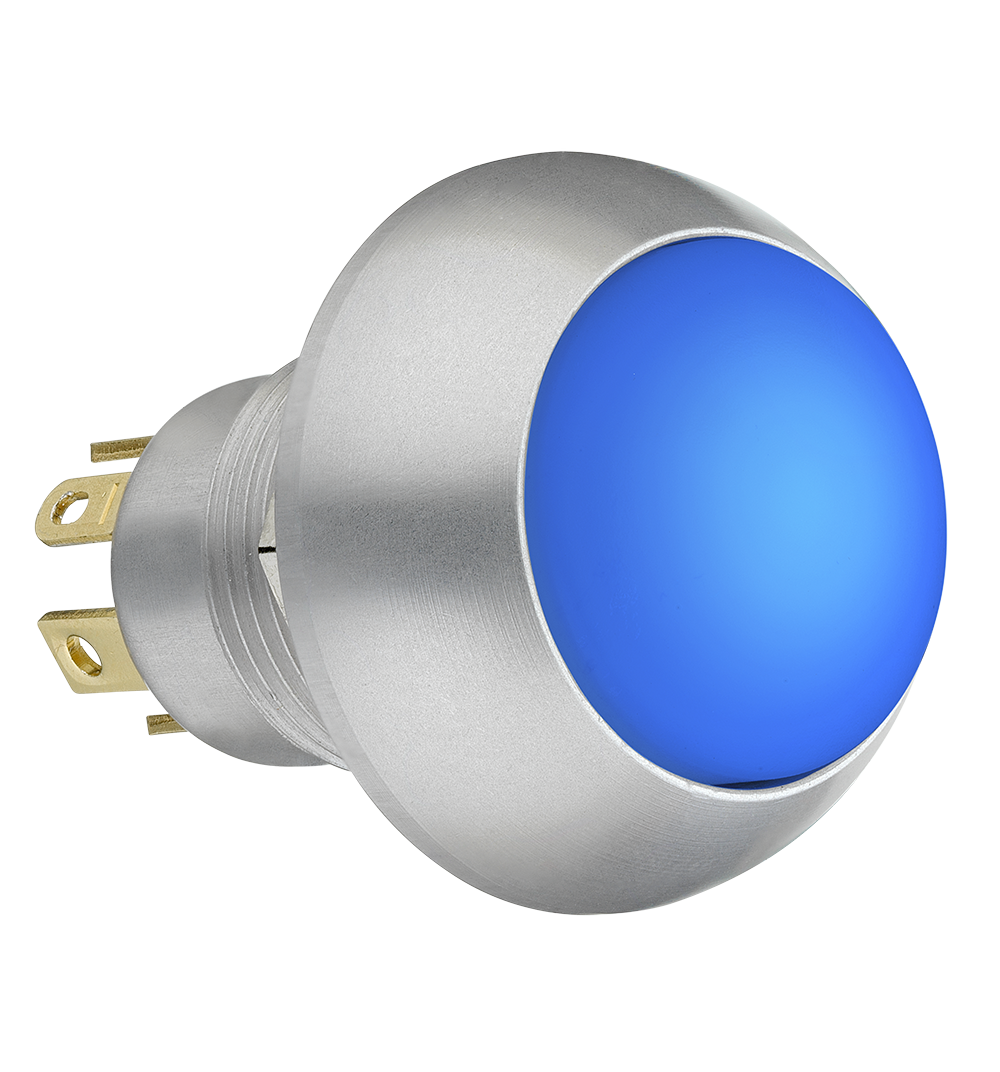

LP3S-F3G222R-M2

OTTLP3S_F3G222R_M2
Heilind Number:OTTLP3S-F3G222R-M2
Manufacturer:OTTO Controls
Manufacturer Number:LP3S-F3G222R-M2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Shorter Behind Panel, Illuminated, Sealed, Momentary Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3S-F3G222R-M2
Series:LP3S
Cap Color:Red
IP Rating:IP6K4S
Case Color:Black
Illumination:Illuminated
Actuator Type:Dome (Flush)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.491 in
Contact Plating:Gold
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Quick Connect
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3S-F3G222R-M2

Detailed Description

Introducing the LP3S Series Sealed Momentary Pushbutton Switch, featuring a sleek black case with a striking red cap for easy identification. This high-quality switch is designed for durability, with a rating of 25,000 cycles for reliable performance. The dome actuator provides a comfortable and responsive touch, while the gold-plated brass contacts ensure efficient conductivity. With an IP6K4S rating, this switch is protected against dust and water ingress, making it suitable for a variety of industrial applications. The red illumination, powered by 12V, adds a visual indicator for quick and easy operation. Suitable for panel mounting, the LP3S Switch is ideal for use in demanding environments, with a wide operating temperature range from -55°C to 85°C. Whether for commercial or industrial use, this switch offers a dependable solution for your control needs.
