LP5-V11A315

OTTLP5_V11A315
Heilind Number:OTTLP5-V11A315
Manufacturer:OTTO Controls
Manufacturer Number:LP5-V11A315
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

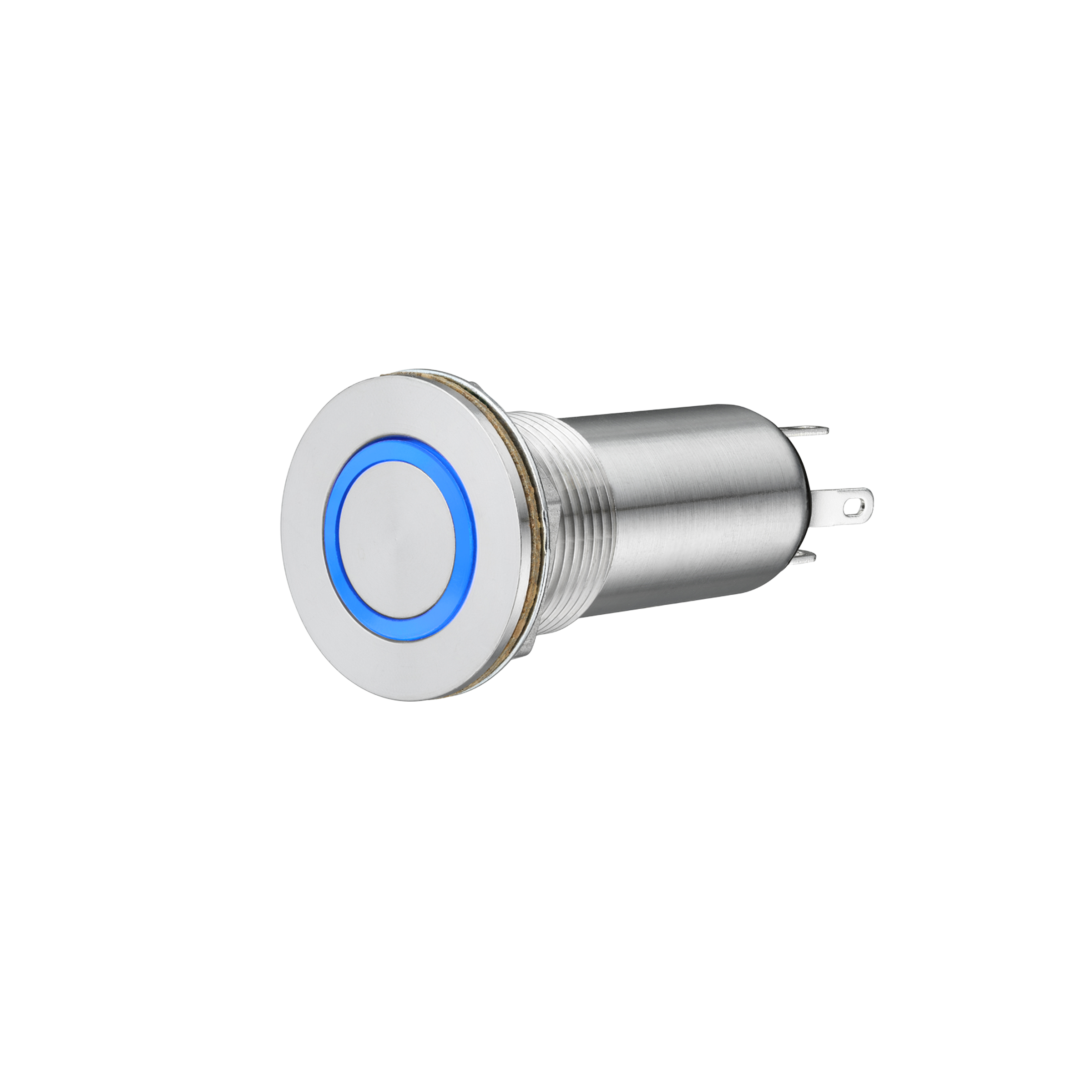

Illuminated, Vandal Resistant, Stainless Steel, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-V11A315
Series:LP5-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST
Actuator Type:Button (Flush Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Clear
Actuator Length:.18 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
SKU:OTTLP5-V11A315

Detailed Description

The LP5-V11A315 is a rugged and reliable pushbutton switch designed for demanding environments. Featuring a durable stainless steel housing and a clear illuminated cap, this switch is not only visually striking but also resistant to vandalism. With an IP6K8S rating, it offers excellent protection against dust and water ingress. The red LED illumination provides clear indication of switch status, making it ideal for use in low-light conditions. The button actuator, made of stainless steel, offers a flush profile for smooth operation. With a high current rating of 5A and a contact configuration of SPST, it ensures reliable performance in a wide range of applications. Suitable for panel mounting and with a solder termination type, installation is straightforward. With a maximum operating temperature of 85°C and a minimum of -55°C, it is suitable for use in harsh environments. This sealed switch has a durability rating of 25,000 cycles, guaranteeing long-lasting performance. Whether used in industrial machinery, automotive applications, or outdoor equipment, the LP5-V11A315 is the perfect choice for durable and illuminated pushbutton switching.
