LP7-D2211H22

OTTLP7_D2211H22
Heilind Number:OTTLP7-D2211H22
Manufacturer:OTTO Controls
Manufacturer Number:LP7-D2211H22
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

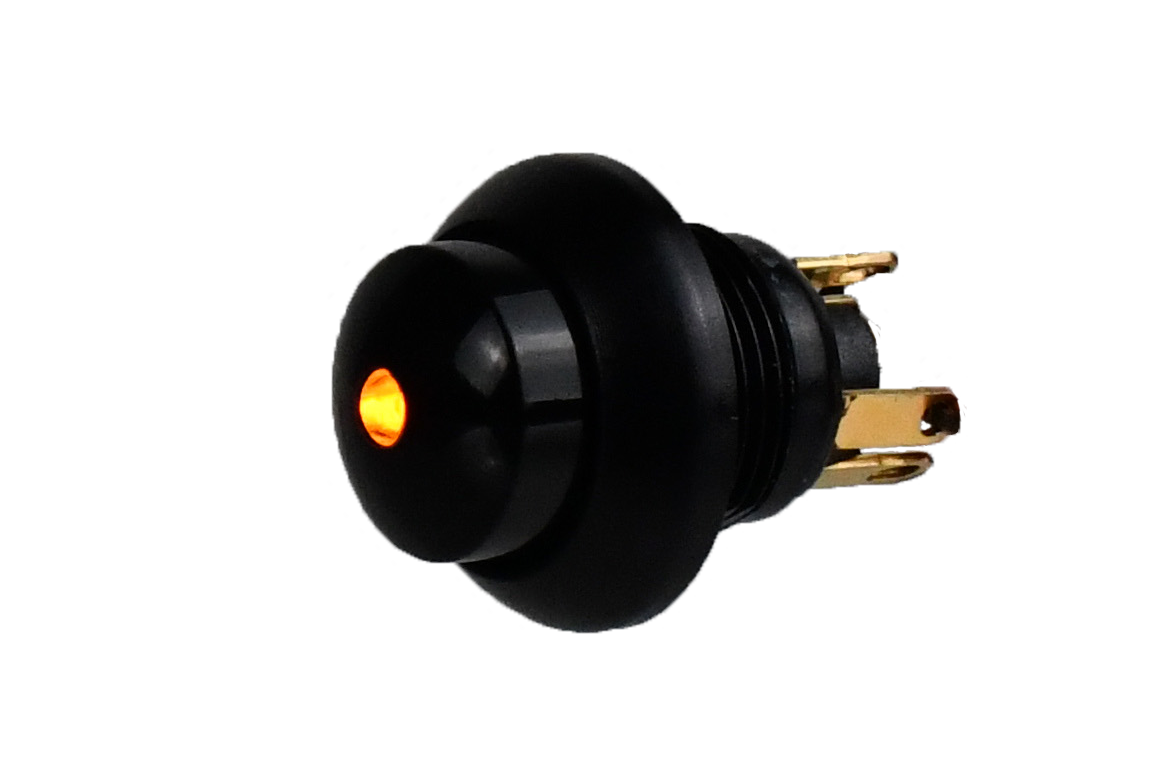

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP7-D2211H22
Series:LP7-D
Housing Material:Aluminum
Contact Material:Silver
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome Lightpipe)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.2 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:12 V
SKU:OTTLP7-D2211H22

Detailed Description

Introducing the LP7-D Series Illuminated Dome Pushbutton Switch, featuring a sleek black design with an IP6K8S rating for superior durability. The raised dome lightpipe actuator, made of thermoplastic, offers a responsive and ergonomic button for seamless operation. With a contact plating of gold and contact material of silver, this switch ensures reliable conductivity. The SPST-NO contact configuration and Off-(On) switch function provide straightforward functionality. Illuminated with amber light at 12V, it guarantees visibility even in low-light conditions. Perfect for panel mounting with solder termination, this switch is ideal for various applications. With a high durability rating of 50,000 cycles and a wide operating temperature range from -40°C to 85°C, it is built to withstand harsh environments. Trust the LP7-D2211H22 for quality performance in your projects.
