LP9-21111K21

OTTLP9_21111K21
Heilind Number:OTTLP9-21111K21
Manufacturer:OTTO Controls
Manufacturer Number:LP9-21111K21
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

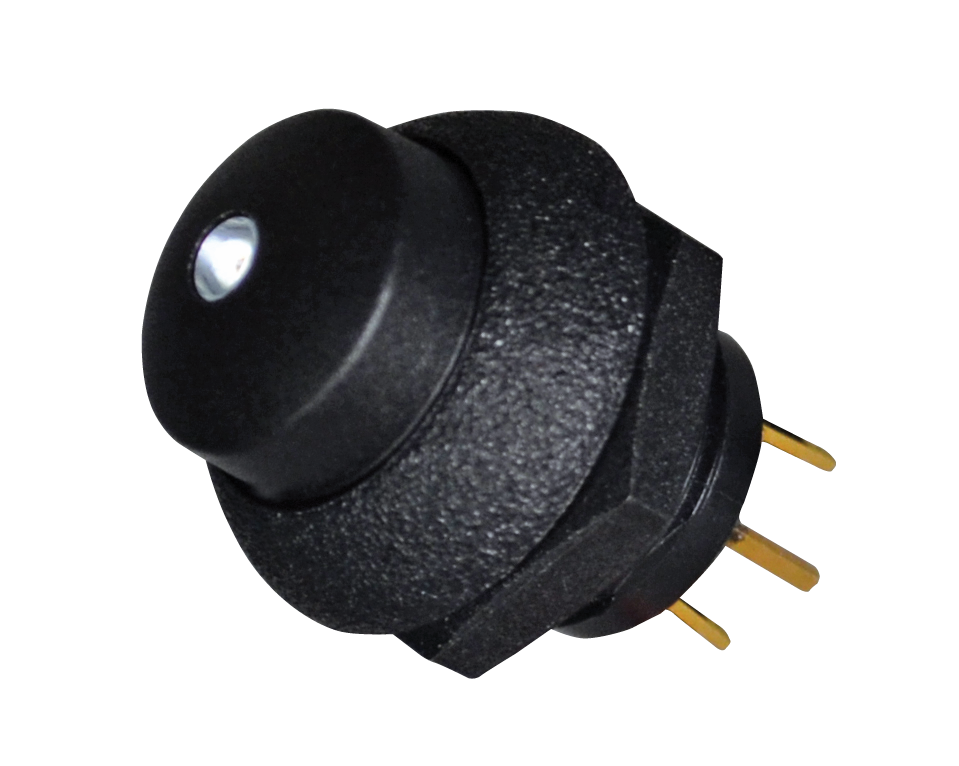

Illuminated Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP9-21111K21
Series:LP9
Cap Color:Red
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Raised Dome Lightpipe)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.39 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Thermoplastic (TP)
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:White
Illumination Voltage:12 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP9-21111K21

Detailed Description

Introducing the LP9 series Illuminated Dome Pushbutton Switch, featuring a vibrant red cap and a durable black case. With an IP6K8S rating, this switch is sealed for protection against dust and water ingress. The raised dome lightpipe actuator, made of thermoplastic, glows with white illumination, powered by a 12V voltage. Ideal for panel mounting, this switch has a 5A current rating and a long lifespan of 25,000 cycles. The SPST-NO contact configuration ensures reliable performance, while the gold-plated brass contacts guarantee efficient conductivity. Operating in temperatures ranging from -55°C to 85°C, this switch is suitable for a variety of environments. Perfect for applications requiring a momentary Off-(On) function, the LP9 series combines functionality and durability in a sleek design.
