| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P1-22222 |
| Series: | P1 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | Symbol 2 |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NC |
| Actuator Type: | Button (Flat) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Screw |
| Actuator Shape: | Round |
| Cap Color: | Black |
| Actuator Length: | .25 in |
| Switch Function: | ON-OFF |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP1-22222 |
P1-22222
Specifications
Detailed Description

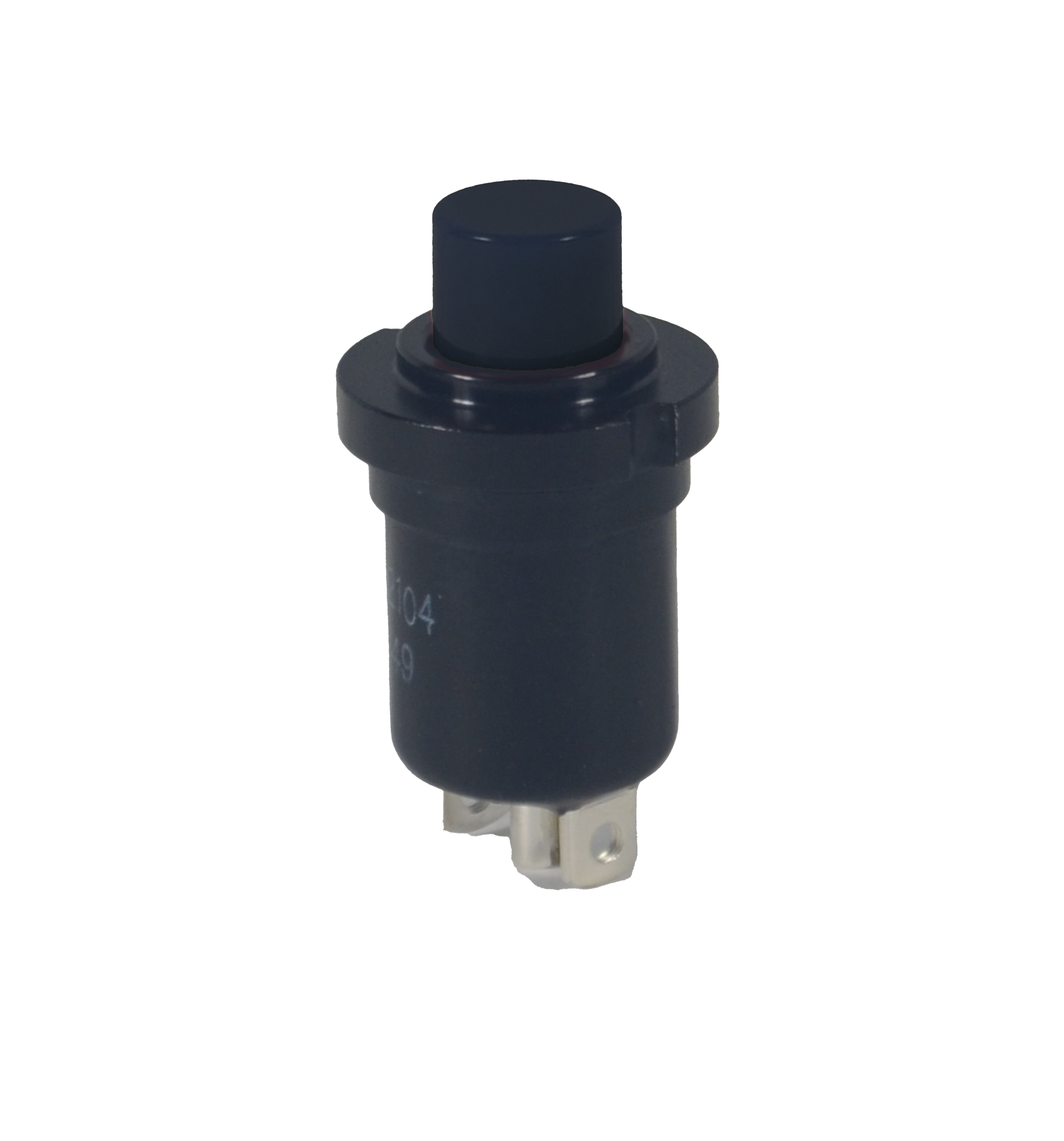

Introducing the P1-22222, a precision snap-action pushbutton switch designed for seamless panel mounting. Part of the P1 series, this switch features a sleek black aluminum housing with a flat round button actuator made of thermoplastic. It offers a reliable on-(off) switch function with a contact configuration of SPST-NC, ensuring optimal performance. Rated for 10A at 28VDC and 115VAC, this switch is suitable for a wide range of applications. With a durability rating of 25,000 cycles and an operating temperature range of -55°C to 85°C, it guarantees long-lasting functionality even in harsh environments. The P1-22222 is the perfect choice for those seeking a high-quality, sealed pushbutton switch.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
