P9-712121

OTTP9_712121
Heilind Number:OTTP9-712121
Manufacturer:OTTO Controls
Manufacturer Number:P9-712121
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

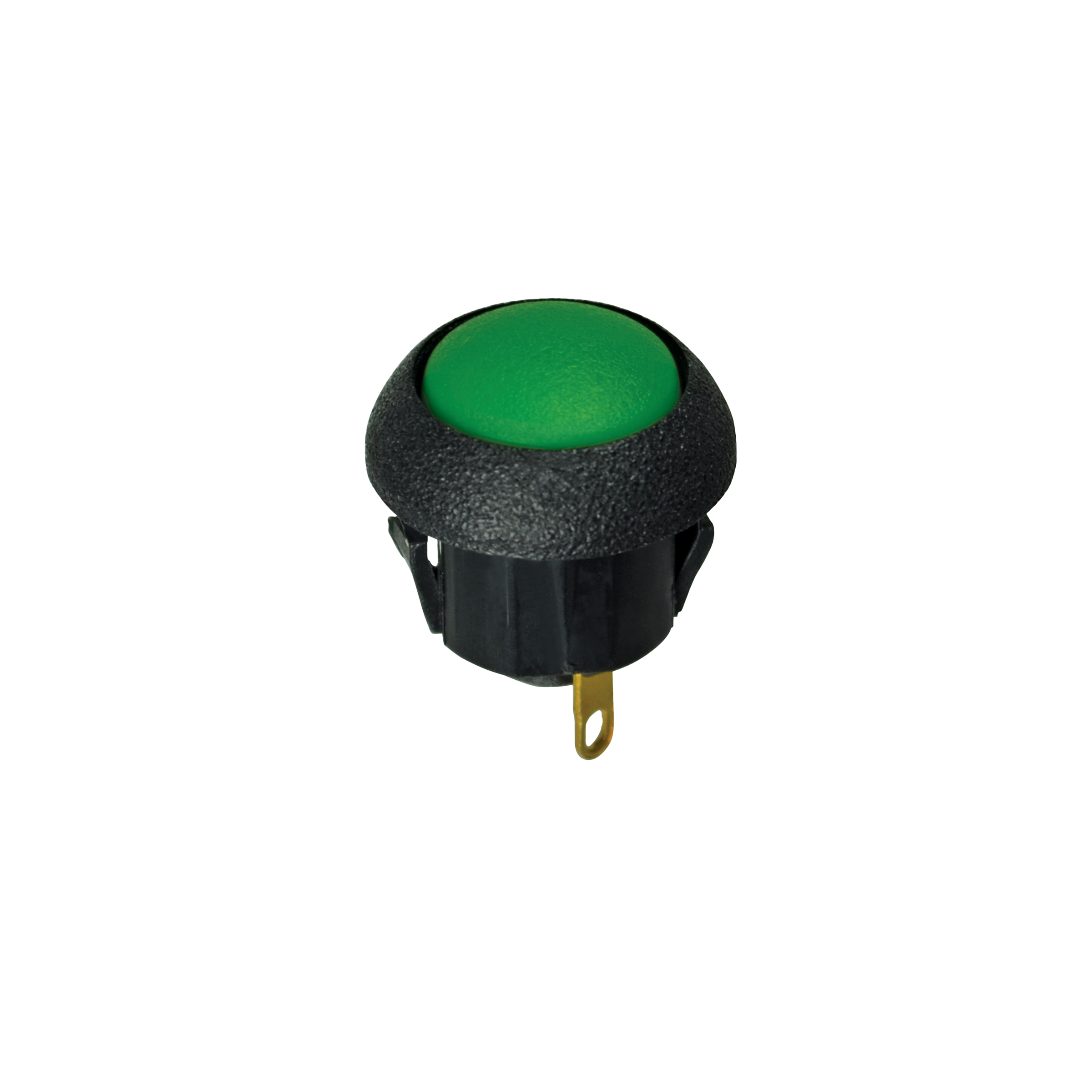

Sealed Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P9-712121
Series:P9
Cap Color:Red
IP Rating:IP6K4S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flush Dome)
Actuator Shape:Round
Current Rating:3 A | 5 A
Mounting Style:Panel Mount
Actuator Length:.27 in
Contact Plating:Gold
Switch Function:ON-OFF
Contact Material:Brass
Housing Material:Thermoplastic (TP)
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NC
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP9-712121

Detailed Description

Introducing the P9 Series Sealed Dome Pushbutton Switch, a durable and reliable component for your electronic control panels. Featuring a red flush dome button with a black thermoplastic housing, this switch is both visually striking and robust. With an IP6K4S rating, it ensures protection against dust and water ingress, making it suitable for various environments. The SPST-NC contact configuration, along with a 3A/5A current rating, guarantees efficient operation. Gold-plated brass contacts and a 25,000-cycle durability rating ensure long-term performance. Suitable for panel mounting with solder termination, it offers easy installation. Whether in industrial machinery or consumer electronics, this switch is a versatile solution. Operating smoothly in temperatures ranging from -40°C to 85°C and compatible with 115VAC/28VDC, it meets diverse application needs. Trust in the P9 Series for quality and performance in every push.
