1-796949-9

AMP1-796949-9
Heilind Number:AMP1-796949-9
Manufacturer:TE Connectivity
Manufacturer Number:1-796949-9
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

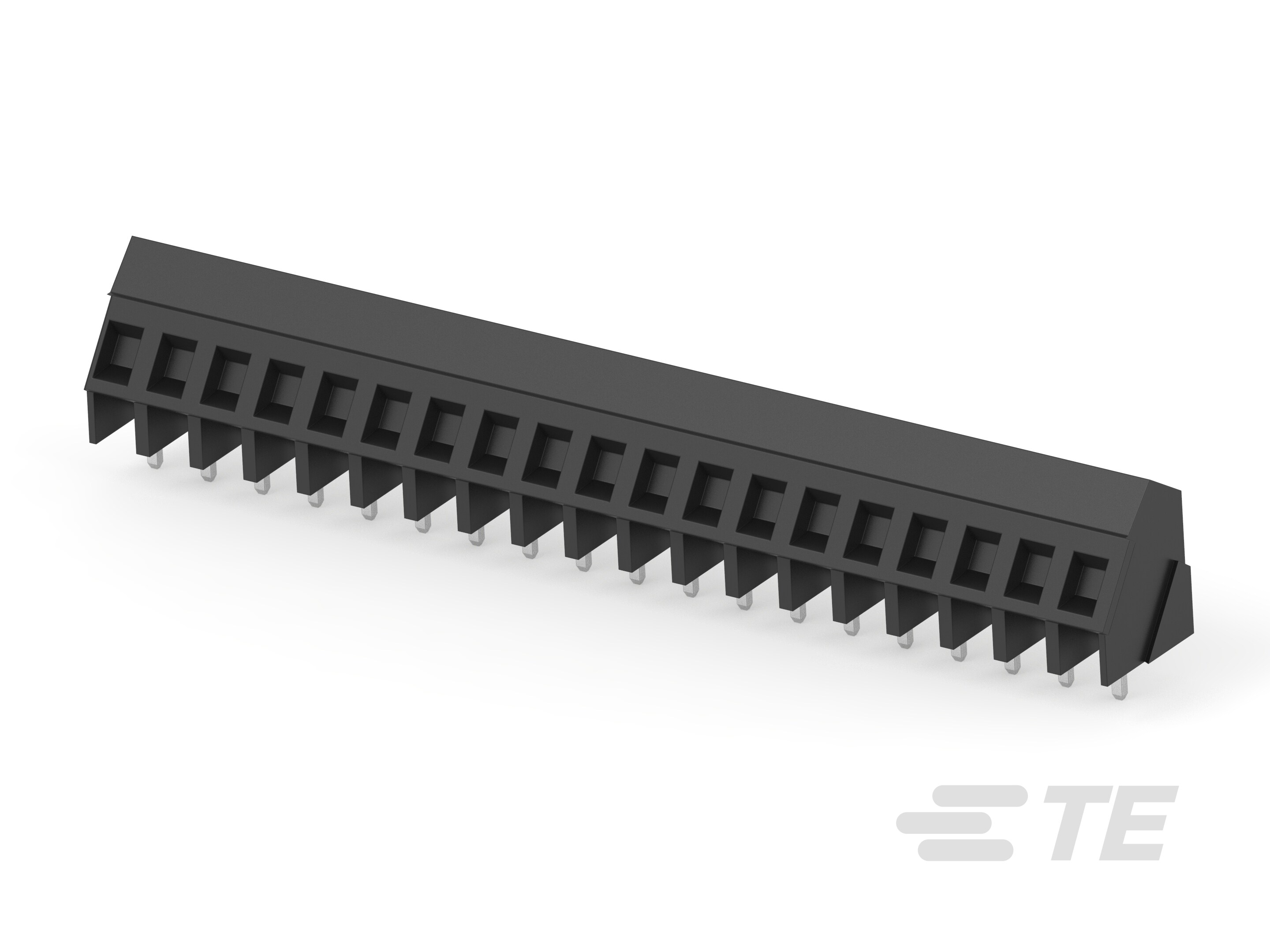

19POS TERMI-BLOK PCB MOUNT

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-796949-9
Amperage:17.5 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:19
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.2 in, 5.08 mm
Voltage:300 V AC
Mount Angle:Straight
Block Type:Stacking w/interlock
Screw Size:M3
Package Quantity:50
Contact Amperage:17.5 A
Number of Positions:19
Housing Color:Black
GPL:124
Tail Length:.138 in, 3.5 mm
Packaging:Carton
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:With
Closed End:Without
Stacked Levels:Without
Contact Mount Style:Through Hole
Marking Color:White
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:1-796949-9
SKU:AMP1-796949-9

Detailed Description

This black header features a single row with 19 contacts, suitable for power and signal applications. With a high amperage rating of 17.5 A and a voltage capacity of 300 V AC, it is ideal for industrial use. The housing is made of PA 6/6 material, ensuring durability in harsh environments. Designed for board mount installation, it has a pitch of 5.08 mm and can accommodate wire sizes ranging from 12 to 30 AWG. With a straight mount angle and side stackable configuration, it offers versatility in assembly. RoHS compliant and capable of wave soldering, this connector is suitable for lead-free solder processes. Operating temperature range from -40 to 110 °C (-40 to 230 °F) further enhances its suitability for various applications. With 50 units in a carton, it is a convenient choice for bulk orders.
