2204273-1

AMP2204273-1
Heilind Number:AMP2204273-1
Manufacturer:TE Connectivity
Manufacturer Number:2204273-1
Datasheet:Drawing
ECAD Model:
3D Model

Description:

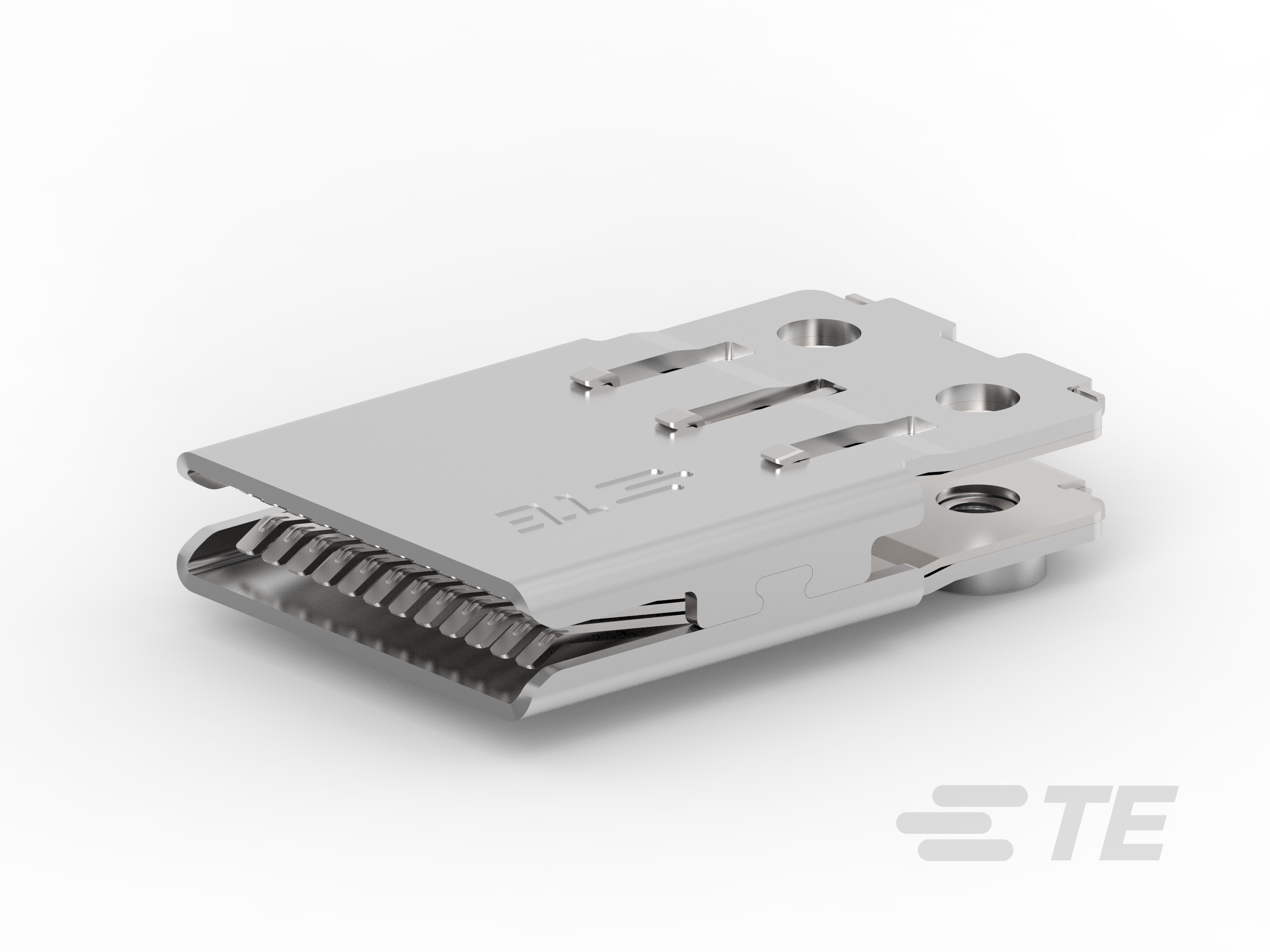

IN-LINE MOUNT 500A BUSBAR CONN.

More >>

Specifications

AttributeValue
Product Category:
Power Connectors Busbar Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2204273-1
Amperage:500 A
Connector Type:Connector Assembly
Gender:Receptacle
Housing Material:Stainless Steel
Mount Type:Board Mount
Contact Material:Copper Alloy
Contact Plating:Silver Over Nickel
Voltage:15 V DC, 600 V AC
Contact Length:2.54 in, 64.7 mm
Contact Amperage:500 A
Number of Positions:1
Mount Orientation:Vertical
GPL:K77
Packaging:Bag/Box
Operating Temperature Range:-55 - 105 °C, -67 - 221 °F
Circuit Application:Power
Contact Underplating Material:Nickel
Connector Height:1.12 in, 28.45 mm
Sealable:No
Mating Alignment:Yes
Mating Alignment Type:Blindmate
GPL Description:Data and Devices
Connector and Contact Terminate To:Bus Bar
Product Code:1080
Wire Size:2 AWG, 34 - 35 mm², 67099 - 69073 CMA
Contact Design:Multiple Contact Point
Contact Transmits:Power
Connector Length:3.29 in, 83.67 mm
Connector System:Bus Bar-to-Bus Bar
Rated Voltage:12 VDC
UL Agency Certification:E113407
Connector Product Type:Pluggable Bus Bar Connector
ECCN:EAR99
Contact Style:Socket
Contact Underplating Thickness:1.27 µm, 50 µin
Connector Width:2.29 in, 58.17 mm
PCB Mounting Style:Through Hole - Screw
Voltage Drop:13 mV
Hot Pluggable:No
Material Flammability Standard:UL 94V-0
Part Aliases:2204273-1
SKU:AMP2204273-1

Detailed Description

Easily connect high-power applications with our In-Line Mount 500A Busbar Connector. Designed for efficient power transmission, this rugged connector features a stainless steel housing and copper alloy contacts plated with silver over nickel, ensuring reliable conductivity. With a 500A amperage rating and a 600V AC / 15V DC voltage rating, it's perfect for demanding industrial environments. UL 94V-0 compliant for safety, this connector is suitable for applications requiring a high level of performance and durability. Its blindmate mating alignment and board mount orientation offer ease of installation, while its through-hole screw PCB mounting style ensures secure attachment. RoHS compliant and lead-free solder compatible, it meets environmental standards without compromising on quality. Ideal for power distribution systems, data centers, and more, this connector is a reliable solution for your connectivity needs.
