2303089-1

AMP2303089-1
Heilind Number:AMP2303089-1
Manufacturer:TE Connectivity
Manufacturer Number:2303089-1
Datasheet:3DDrawing
ECAD Model:
3D Model

Description:

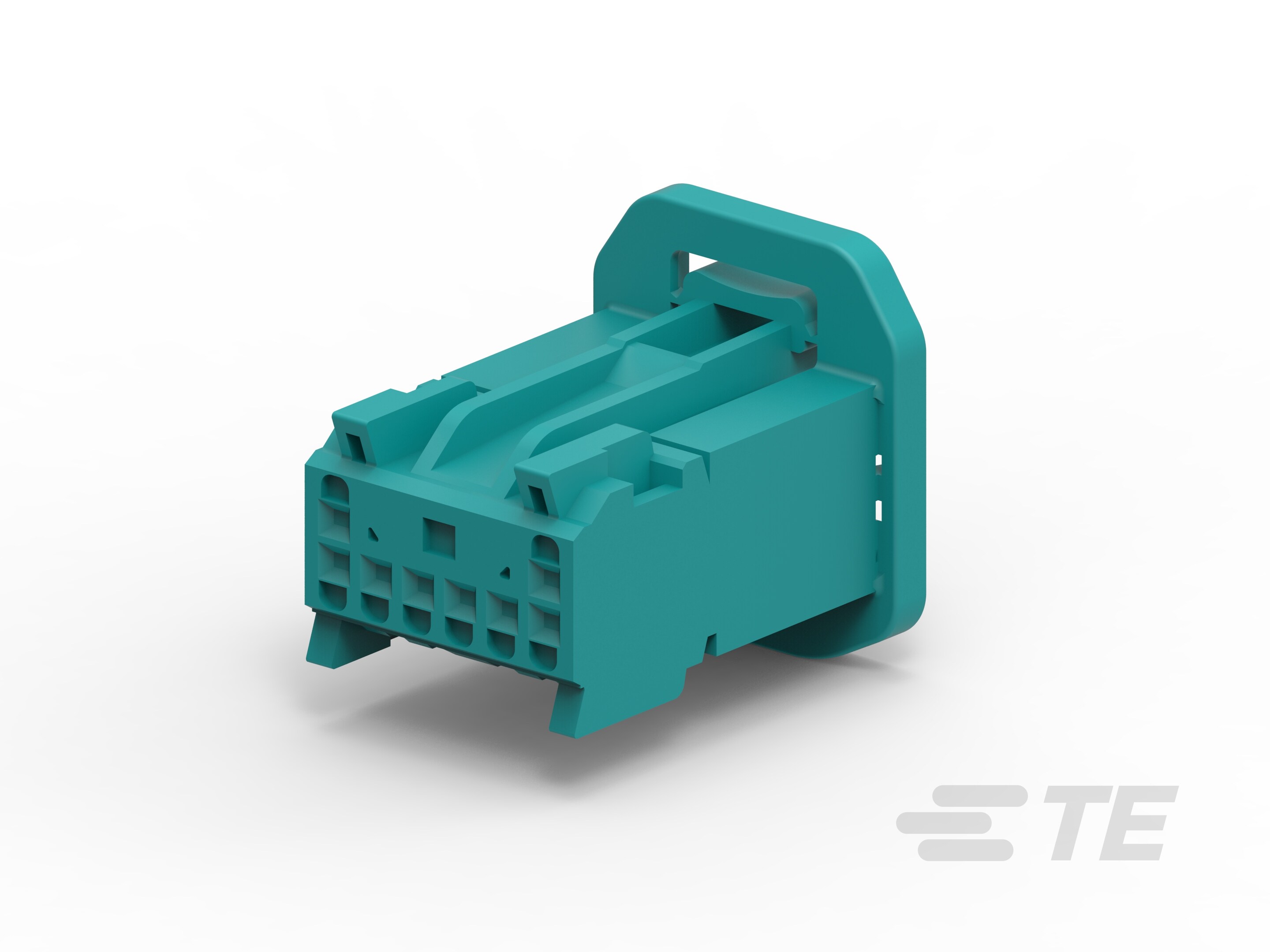

8POS,NANOMQS,REC HSG,UNSLD,COD NEUT

More >>

Specifications

AttributeValue
Product Category:
Automotive Connectors & Accessories Automotive Connector Accessories
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2303089-1
Series:Nano MQS
Gender:Housing for female terminals
Number of Rows:2
Pitch:.071 in, 1.8 mm
Row Spacing:.059 in, 1.5 mm
Polarization:Yes
Body Material:PBT GF
Contact Amperage:1 A
Number of Positions:8
GPL:N54
Packaging:Bag
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Signal
Sealable:No
GPL Description:Automotive
Connector and Contact Terminate To:Flexible Printed Circuit (FPC)
Product Code:M120
Length:.527 in
Cable Exit Angle:180°
Height:17.8 mm, .7 in
Width:14.8 mm, .583 in
Mating Tab Width:.02 in, .5 mm
Body Color:Blue
Serviceable:No
Connector Code :Z
Blank Cavity Position:8
Terminal Position Assurance:Yes
Connector Position Assurance Capable:No
Hybrid Connector :No
Primary Locking Feature:Locking Lance
Standards Met:LV214
Part Aliases:2303089-1
SKU:AMP2303089-1

Detailed Description

Introducing our Nano MQS Connector, designed to meet LV214 automotive standards with a housing tailored for female terminals. Featuring two rows with a pitch of 1.8mm, row spacing of 1.5mm, and a total of 8 positions, this connector ensures secure and efficient signal transmission. The body, made of durable PBT GF, can withstand operating temperatures ranging from -40 to 105°C. Its polarization feature guarantees proper alignment. With a contact amperage of 1A and compatibility with Flexible Printed Circuits, it's perfect for automotive circuit applications. The connector, with a 180° cable exit angle, measures .527" in length, .7" in height, and 14.8mm in width, with a sleek blue body color. The primary locking feature, a Locking Lance, provides added security. RoHS compliant, this connector prioritizes environmental responsibility. Explore our range of automotive connector accessories for comprehensive solutions.
