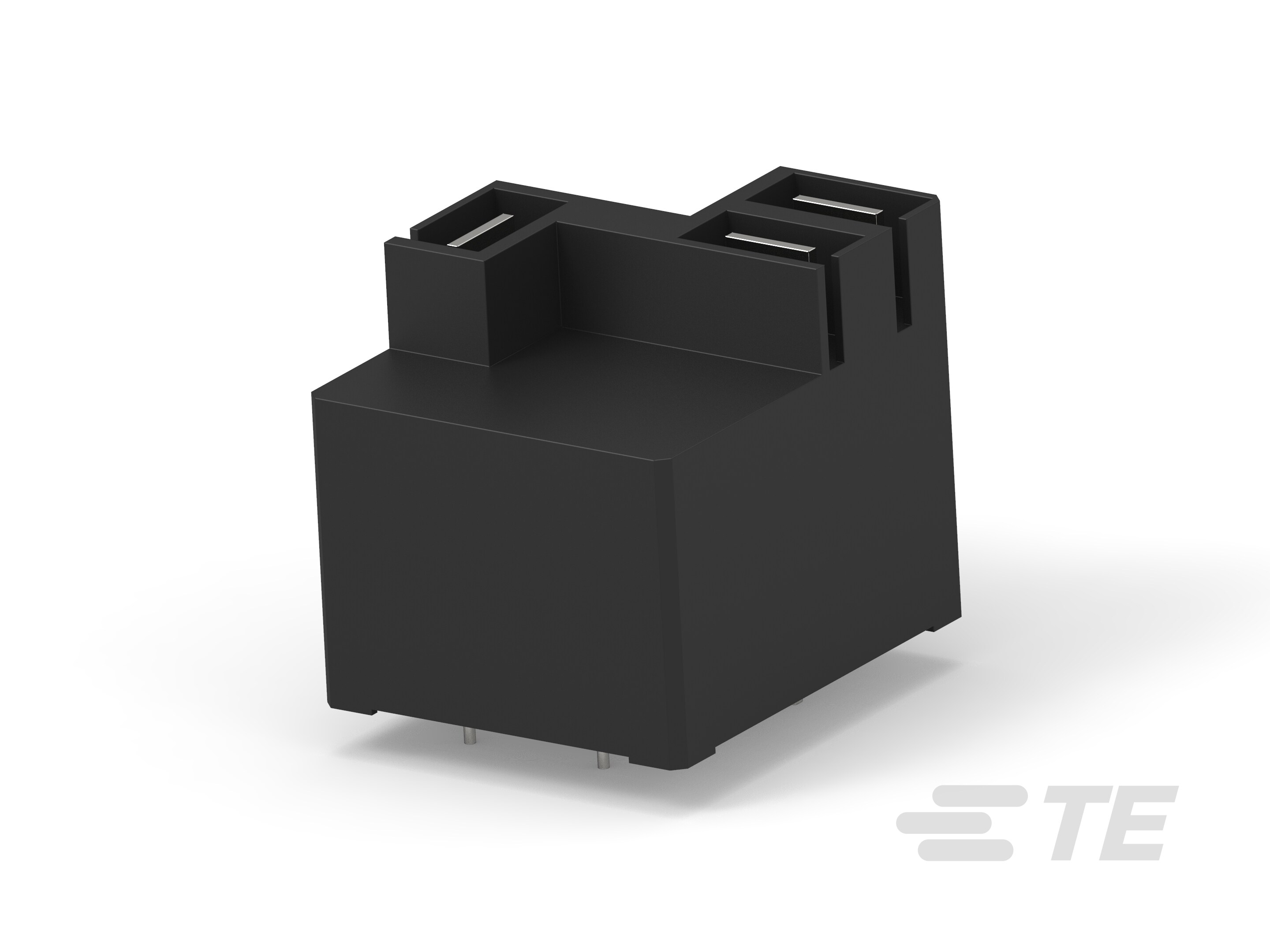

1-1419104-6

AMP1-1419104-6
Heilind Number:AMP1-1419104-6
Manufacturer:TE Connectivity
Manufacturer Number:1-1419104-6
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

T9AS1D22-110

More >>

Specifications

AttributeValue
Product Category:
Relays Power Relays
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-1419104-6
Amperage:30 A
Mount Type:Printed Circuit Board
Contact Material:Silver Cadmium Oxide (AgCdO)
Contact Plating:Silver Cadmium Oxide (AgCdO)
Number of Poles:1
Coil Resistance:12100 Ω
Coil Current:.009 A
Coil Voltage:110 VDC
Output Type:AC
Maximum Output Voltage:240 V
Maximum Switching Voltage:277 VAC
Termination Type:Printed Circuit Terminals
Contact Voltage:277 VAC
Operating Temperature Range:-55 - 85 °C, -67 - 185 °F
Contact Arrangement:1 Form A (NO)
SKU:AMP1-1419104-6

Detailed Description

Experience reliable power switching with the T9AS1D22-110 relay. Designed for use on Printed Circuit Boards, this high-performance relay features a single pole and a contact arrangement of 1 Form A (NO), making it ideal for a variety of applications. With a maximum amperage of 30 A and a coil voltage of 110 VDC, it ensures efficient operation. The silver cadmium oxide contacts guarantee durability and longevity, even in demanding environments. RoHS compliant and operating within a wide temperature range from -55 to 85°C (-67 to 185°F), this relay offers peace of mind in terms of safety and performance. Trust in the T9AS1D22-110 for seamless power control in your electronic systems.
