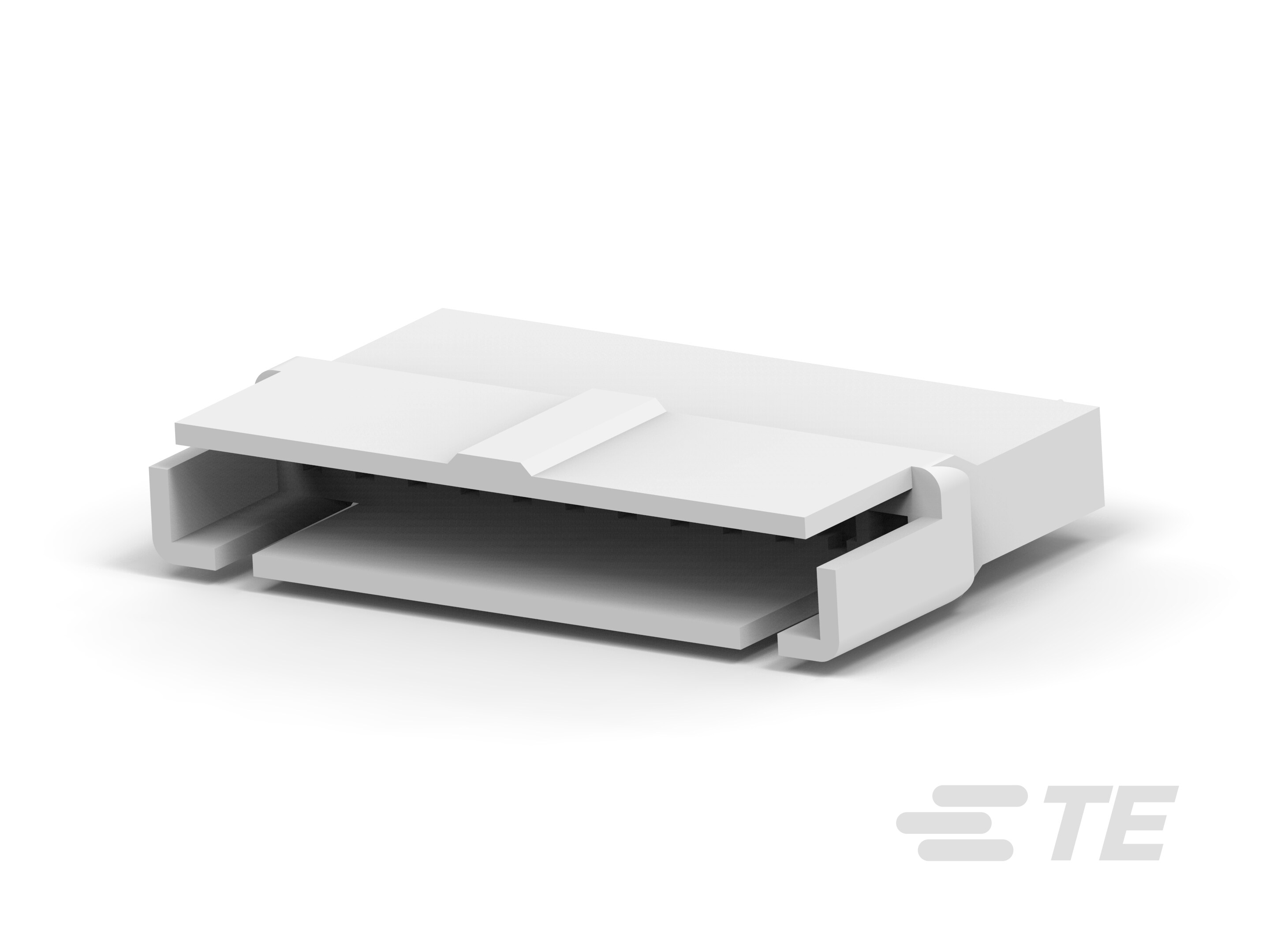

1-172211-2

AMP1-172211-2
Heilind Number:AMP1-172211-2
Manufacturer:TE Connectivity
Manufacturer Number:1-172211-2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

12P CAP HSG F/H EI S CONN.

More >>

Specifications

AttributeValue
Product Category:
PC Board Pin & Receptacle Connectors PCB Socket Receptacles
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-172211-2
Color:Natural
Amperage:2 A
Connector Type:Housing
Gender:Plug
Housing Material:Nylon 6/6
Number of Contacts:12
Number of Rows:1
Mount Type:Cable Mount (Free-Hanging)
Termination Method:Crimp
Overall Height:6.4
Overall Length:32.7
Pitch:.098 in, 2.5 mm
Voltage:250 V AC, 350 V DC
Contact Type:Pin
Strain Relief:No Strain Relief
Package Quantity:500
Number of Positions:12
Housing Color:Natural
Insulation Resistance:500 MΩ
GPL:289
Profile:Standard
Mating Retention Type:Lock
Packaging:Bag
Operating Temperature Range:-20 - 95 °C, -4 - 203 °F
Circuit Application:Power & Signal
Panel Mount:Without
PCB Retention:Without
Connector Height:6.4 mm
Sealable:No
Mating Alignment:With
Mating Alignment Type:Polarization
Mating Connector Lock Type:Lock
GPL Description:Data and Devices
Connector and Contact Terminate To:Wire & Cable
Product Code:1593
Circuit:Standard
Contact Layout:Inline
Connector Length:32.7 mm
Connector System:Wire to Board
Connector Product Type:Connector
Mating Retention:With
Mating Connector Lock:With
Material Flammability Standard:UL 94V-0
Part Aliases:1-172211-2
SKU:AMP1-172211-2

Detailed Description

Enhance your connectivity with our 12-contact Housing Connector, a versatile solution designed for power and signal applications. Featuring a durable Nylon 6/6 construction in a natural color, this connector ensures reliable performance in various environments. With a 2A amperage capacity and 250V AC/350V DC voltage ratings, it meets high standards of quality and safety. The crimp termination method allows for easy installation, while the cable mount design offers flexibility in usage. Its compact profile, measuring 6.4mm in height and 32.7mm in length, makes it ideal for space-constrained setups. Whether for industrial machinery or electronic devices, this connector is a dependable choice for seamless connectivity. With RoHS compliance and UL 94V-0 flammability rating, it guarantees peace of mind in terms of environmental and safety regulations. Elevate your connection solutions with this Housing Connector, a perfect fit for your PCB socket receptacle needs.
