2825260-4

AMP2825260-4
Heilind Number:AMP2825260-4
Manufacturer:TE Connectivity
Manufacturer Number:2825260-4
Datasheet:3D Model (STP)
ECAD Model:
3D Model

Description:

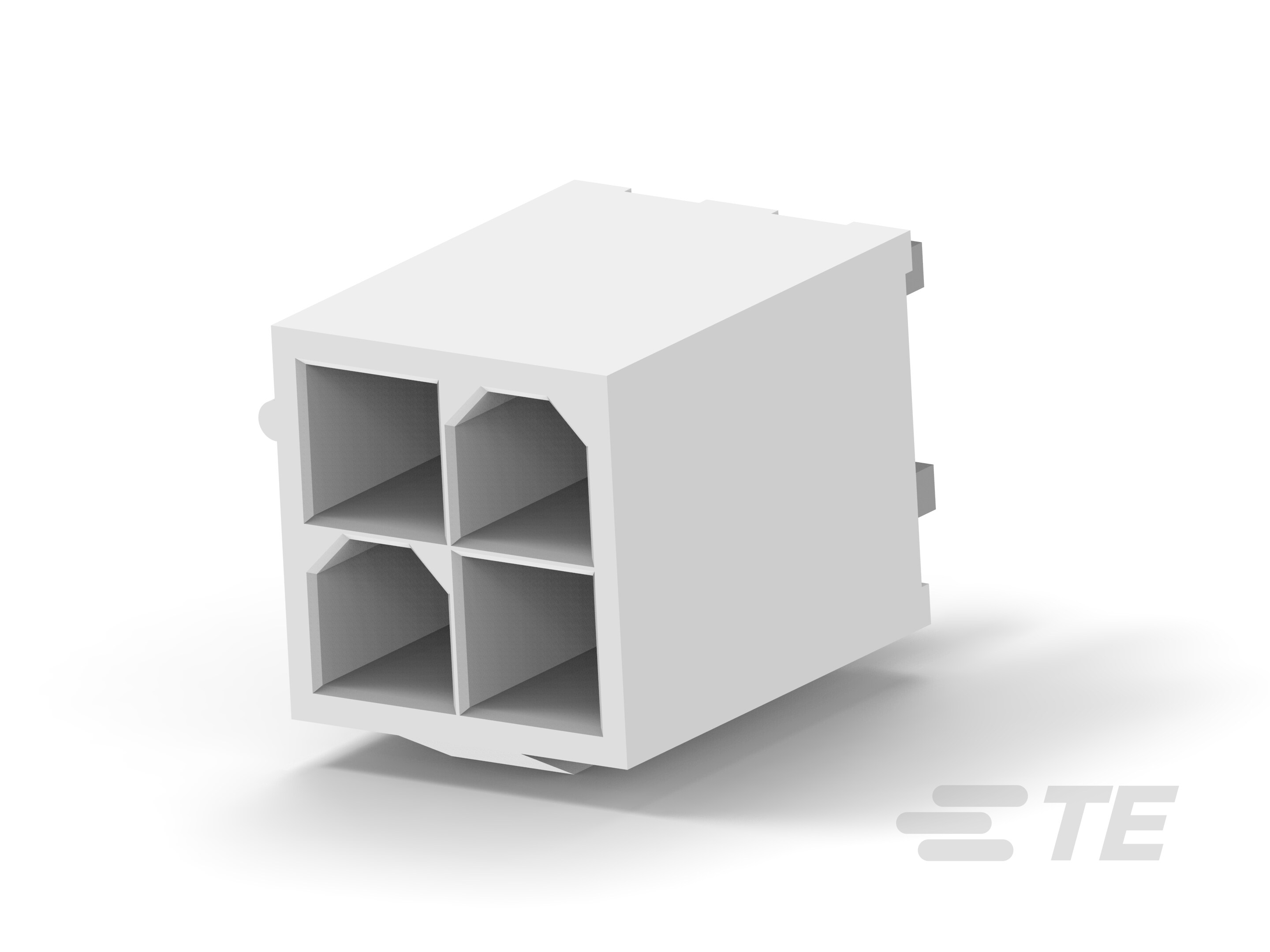

4P VRT HDR VAL-U-LOK HCS V0

More >>

Specifications

AttributeValue
Product Category:
Connectors Power Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2825260-4
Housing Material:Nylon
Number of Rows:2
Mount Type:Board Mount
Termination Method:Through Hole - Solder
Pitch:.165 in, 4.2 mm
Voltage:600 V AC
Contact Type:Pin
Row Spacing:.165 in, 4.2 mm
Package Quantity:600
Contact Amperage:13 A
Number of Positions:4
Housing Color:Natural
Mount Orientation:Vertical
GPL:G31
Mating Retention Type:Latch
Packaging:Box & Tray, Tray
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Signal
Contact Mating Area Plating:Tin
Contact Mating Area Plating Thickness:2.03 µm, 80 µin
PCB Retention:Without
PCB Thickness (Recommended):.063 in, 1.6 mm
Connector Height:12.8 mm, .504 in
Sealable:No
Mating Alignment:With
Mating Alignment Type:Keyed
GPL Description:Appliances
Connector and Contact Terminate To:Printed Circuit Board
Product Code:K926
Number of Signal Positions:4
Wire Size:.12 - 1.4 mm², 18 - 26 AWG
Contact Layout:Inline, Matrix, Square Grid
Connector Length:.378 in, 9.6 mm
Connector System:Wire to Board
CSA Agency Certification:208567
Contact Termination Plating:Brass Alloy, Tin
Connector Product Type:Header
ECCN:EAR99
Connector Width:.384 in, 9.75 mm
Mating Retention:With
PCB Mount Alignment:Without
Termination Post Tail Length:.138 in, 3.5 mm
Header Type:Shrouded
Max Insulation Diameter:2.39 mm
Accepts Wire Insulation Diameter:.047 - .122 in, 1.2 - 3.1 mm
Contact Retention:With
Glow Wire Rating:Standard Part - Not Glow Wire
Circuit Identification Feature:With
VDE Tested:No
Connector and Housing Type:Plug
Standards Met:CSA UL
Material Flammability Standard:UL 94V-0
Part Aliases:2825260-4
SKU:AMP2825260-4

Detailed Description
