1-111446-6

AMP1-111446-6
Heilind Number:AMP1-111446-6
Manufacturer:TE Connectivity
Manufacturer Number:1-111446-6
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

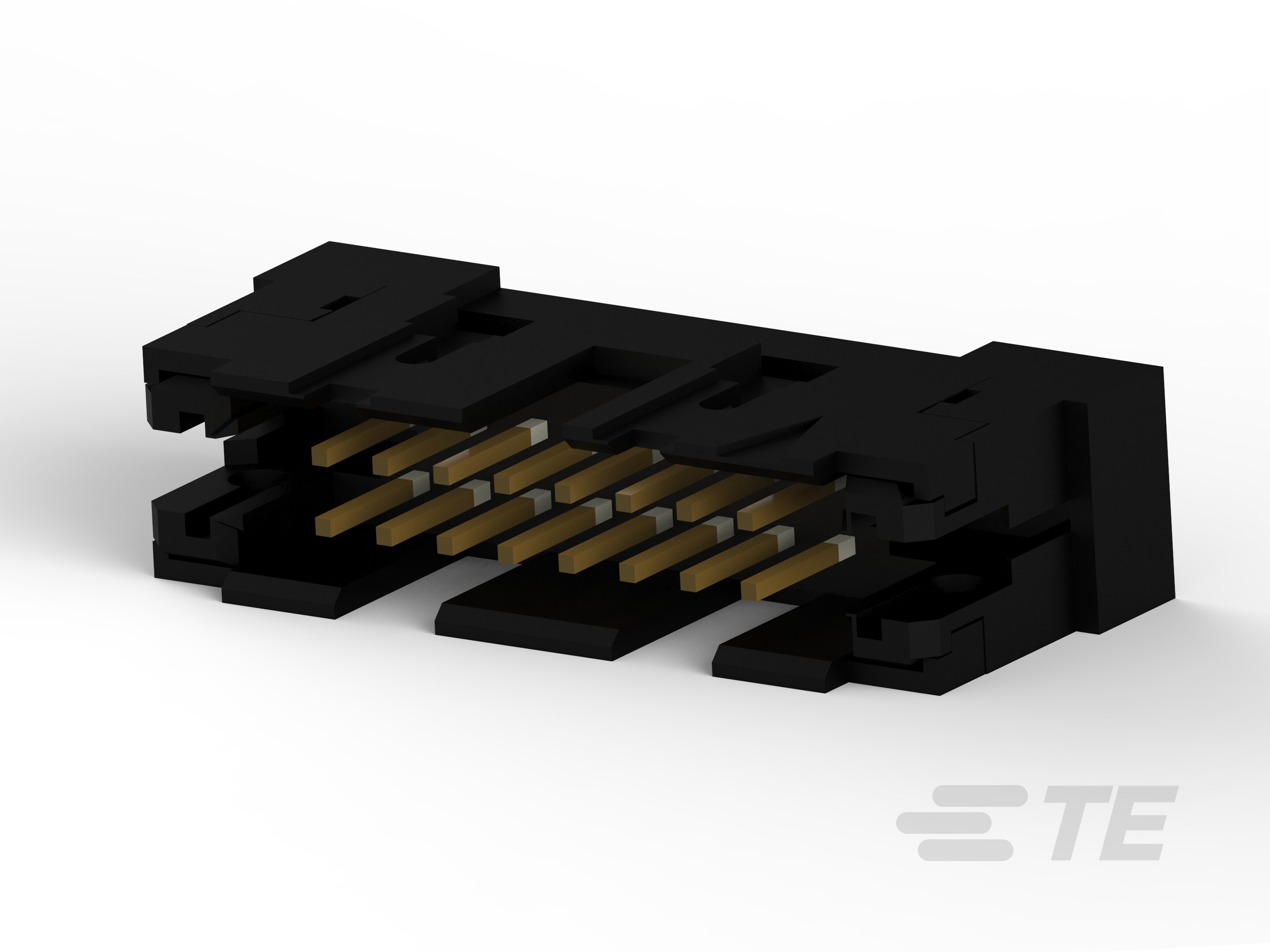

16 UNIV I/O, NO EARS,LEAD FREE

More >>

Specifications

AttributeValue
Product Category:
FFC, FPC, Ribbon & IDT Connectors IDC Ribbon Cable Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-111446-6
Amperage:1 A
Connector Type:Connector Assembly
Gender:Plug
Housing Material:Thermoplastic
Number of Contacts:16
Number of Rows:2
Mount Type:Cable Mount (Free-Hanging)
Termination Method:Insulation Displacement Crimp (IDC), Through Hole - Solder
Contact Material:Phosphor Bronze
Body Orientation:Straight
Pitch:.1 in, 2.54 mm
Voltage:250 VAC
Row Spacing:.1 in, 2 mm
Polarization:With
Package Quantity:90
Cable Type:Solid/Stranded
Contact Amperage:1 A
Number of Positions:16
Housing Color:Black
Mount Orientation:Vertical
Insulation Resistance:5000 MΩ
GPL:034
Profile:Low
Packaging:Box & Tray, Tray
Operating Temperature Range:-65 - 105 °C, -85 - 221 °F
Circuit Application:Signal
Contact Mating Area Plating Thickness:29.92 µin, 30 µin, .76 µm
Panel Mount:Without
PCB Retention:Without
Contact Termination Plating Thickness:100 µin
Connector Height:14.48 mm, .57 in
PCB Retention Type:Screw Mount
Mating Alignment:With
Mating Alignment Type:Keyed
GPL Description:Data and Devices
Connector and Contact Terminate To:Wire & Cable
Product Code:0799
Wire Size:.08 - .15 mm², 158 - 296 CMA, 26 - 28 AWG
Contact Design:Tuning Fork
Contact Transmits:Signal (Data)
Connector Length:1.372 in, 34.85 mm
Connector System:Wire to Wire
CSA Agency Certification:LR 7189
UL Agency Certification:E28476
Connector Product Type:Connector
Mating Post Length:.24 in, 6.1 mm
Connector Width:.33 in, 8.38 mm
PCB Mount Alignment:With
Header Type:Shrouded
Mating Connector Lock:Without
Accepts Wire Insulation Diameter:.032 - .038 in, .81 - .97 mm
Voltage Rating (UL):250 V AC
Board Standoff:Without
Shrouded End Dimension:.15 in, 3.81 mm
Daisy Chain:Without
Ejection Latches:Without
Standards Met:UL CSA
Material Flammability Standard:UL 94V-0
Part Aliases:1-111446-6
SKU:AMP1-111446-6

Detailed Description

Enhance your connectivity with our 16-contact Connector Assembly, designed for efficient signal transmission in a variety of applications. This UL and CSA certified connector, featuring a straight body orientation and cable mount termination method, ensures secure and reliable connections. With a low-profile design and high-quality thermoplastic housing, it offers durability and performance in demanding environments. The phosphor bronze contacts, tuned in a fork design, provide optimal signal transmission with a voltage rating of 250 VAC. Perfect for wire-to-wire setups, this connector is RoHS compliant and suitable for use in a wide range of electronic devices. Upgrade your connectivity solutions with this essential component.
