2108789-2

AMP2108789_2
Heilind Number:AMP2108789-2
Manufacturer:TE Connectivity
Manufacturer Number:2108789-2
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

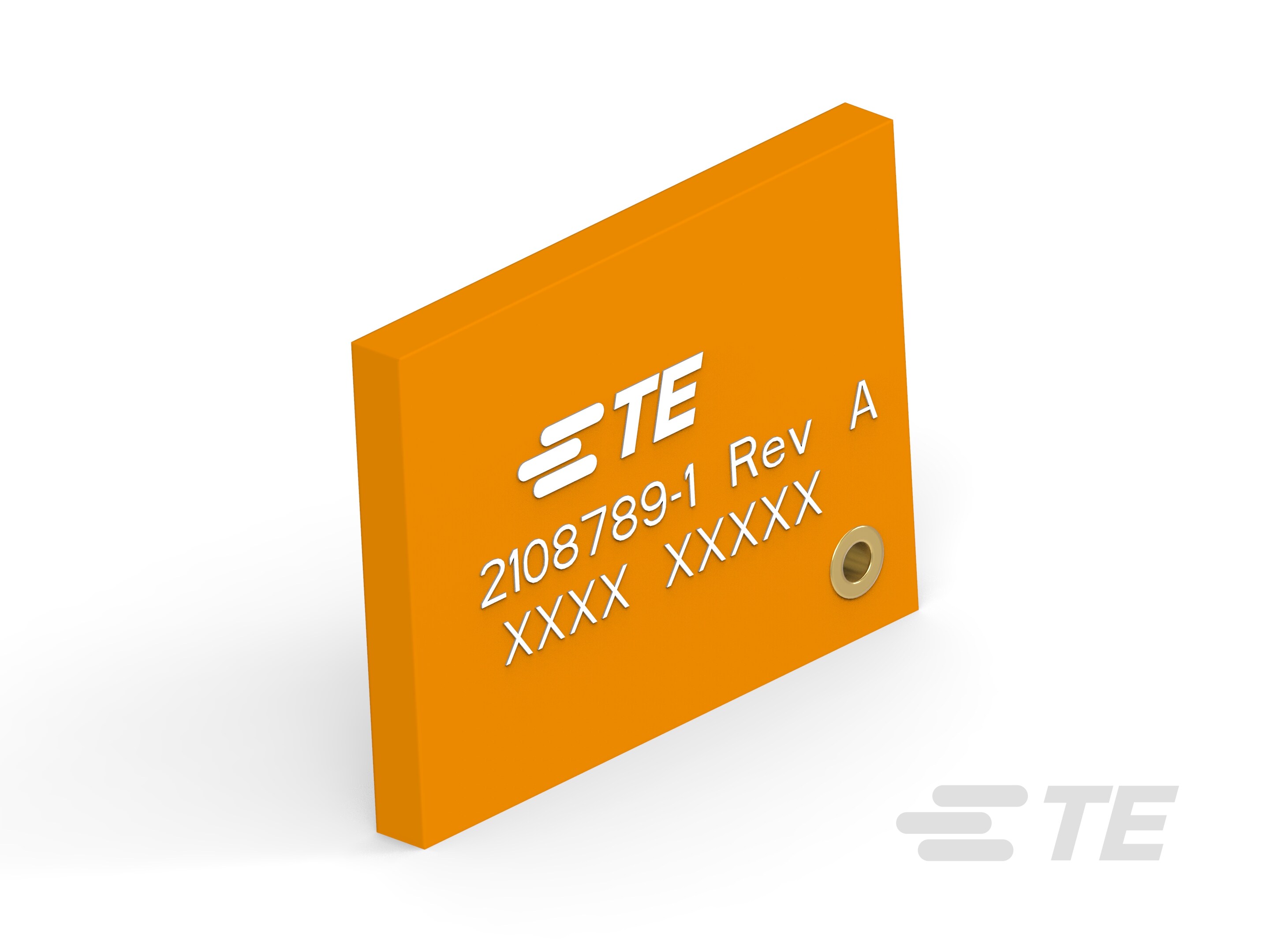

Chip Antenna, Single Band, Bluetooth / Wi-Fi, Internal/Embedded Mount, Surface Mount, Omnidirectional, Single Port, Gain 0 < 3 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108789-2
Gain:1 dB
Band Type:Single Band
Antenna Type:Chip, PCB
Directionality:Omnidirectional
Mounting Style:Surface Mount
Frequency Range:2400 - 2483.5 MHz
Center Frequency:2441.75 MHz
Application:Bluetooth, Wi-Fi
VSWR:2:1
Protocol:802.11b, 802.11g, Bluetooth, ZigBee
Impedance:50 Ω
Polarization:Linear
SKU:AMP2108789-2

Detailed Description

RoHS-compliant and designed for seamless integration, this high-performance chip antenna boasts a 1 dB gain for optimal signal reception in the 2400 - 2483.5 MHz frequency range. Perfect for Bluetooth and Wi-Fi applications, its omnidirectional design ensures reliable connectivity. With surface mount installation and a 50 Ω impedance, it's a versatile choice for various wireless protocols including ZigBee, Bluetooth, 802.11b, and 802.11g. Featuring linear polarization and a VSWR of 2:1, this antenna is a must-have for compact, internal/embedded mounting solutions.
