213906-1

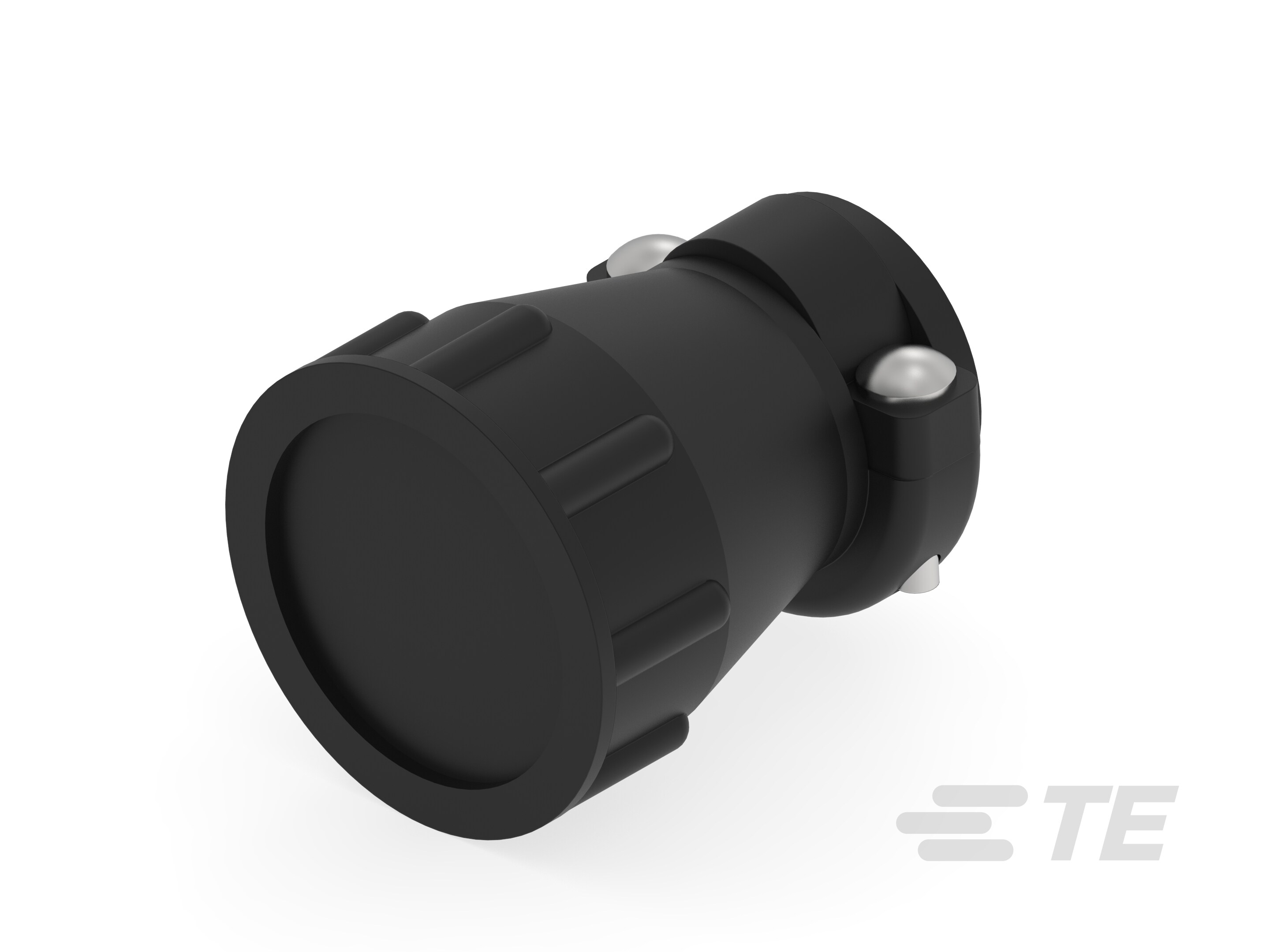

CPC PLUG ASSY,SRS 6,SZ 17-10
Enhance your connectivity with our CPC Plug Assembly, designed for SRS 6 systems. This essential component, featuring a straight orientation and a male gender, is crafted from durable black Nylon 6/6 - GF material, ensuring reliable performance. With 10 pin contacts and a shell size of 17, it provides secure connections for various applications. Meeting UL 94V-0 standards for material flammability, this plug assembly guarantees safety and quality. Operating within a wide temperature range of -55 to 105°C (-67 to 221°F) and offering a voltage capacity of 250 VDC, it is suitable for demanding environments. Trust in our AMP CPC series for efficient power connectivity solutions.
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 213906-1 |
| Color: | Black |
| Series: | AMP CPC |
| Gender: | Male |
| Housing Material: | Nylon 6/6 - GF |
| Number of Contacts: | 10 |
| Body Orientation: | Straight |
| Voltage: | 250 VDC |
| Shell Size: | 17 |
| Contact Type: | Pin |
| Number of Positions: | 10 |
| Operating Temperature Range: | -55 - 105 °C, -67 - 221 °F |
| Shell Type: | All Plastic |
| Product: | Circular Power Connectors |
| Product Type: | Housing |
| Standards Met: | UL 94V-0 |
| Material Flammability Standard: | UL 94V-0 |
| SKU: | AMP213906-1 |
| Seal Type: | Interfacial |
| Keying: | A |
| Number of Signal Positions: | 8 |
| Reverse Numbering: | Without |
| Number of Power Positions: | 2 |
| Reverse Gender: | Yes |
| Contact Protection: | With |
| Accepts Wire Insulation Diameter Range: | 1.5 - 3.3 mm / 3.96 - 6.6 mm / .015 - .26 in / .06 - .13 in |
| Operating Voltage: | 250 VAC |
| null: | 250 VAC |
| Body Orientation: | Straight |
| VDE Tested: | No |
| Mating Alignment Type: | Keyed |
| Mating Retention Type: | Threaded Coupling |
| Screw and Hole Thread Size: | 15/16-20 UNEF-2A |
| Panel Mount Feature: | Without |
| Mating Alignment: | With |
| Mating Retention: | With |
| Circuit Application: | Power & Signal |
| Shielded: | No |
| Connector and Contact Terminates To: | Wire & Cable |
| Connector System: | Wire-to-Wire |
| Sealable: | Yes |
| Connector and Housing Type: | Plug |
| Fluid Resistance: | Immersion |
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
Product Change Notice
| Effective Date | Description of Change | Download |
|---|---|---|
| 09/08/2021 | P-22-022825 - Document clarification.TE was unable to reliably apply the laser marking during this time. These markings are considered a form change. TE eliminated the marking of the part number, date code, Mexico and AMP from the Coupling Ring of these CPC Plug Assemblies from approximately September 8, 2021 through June 30, 2022. The markings will resume on these parts beginning July 1, 2022. | Download |
| 04/01/2013 | Project Lantern PTP Migration Parts - MNF. location change from NC. | Download |
